Feature:

Specially user for big animal and small animal anesthesia ventilator,could widely apply in vet hospital,animal R&D institute,university laboratory,animal clinic,animal zoo,etc.


Products description

Feature:

Specially user for big animal and small animal anesthesia ventilator,could widely apply in vet hospital,animal R&D institute,university laboratory,animal clinic,animal zoo,etc.

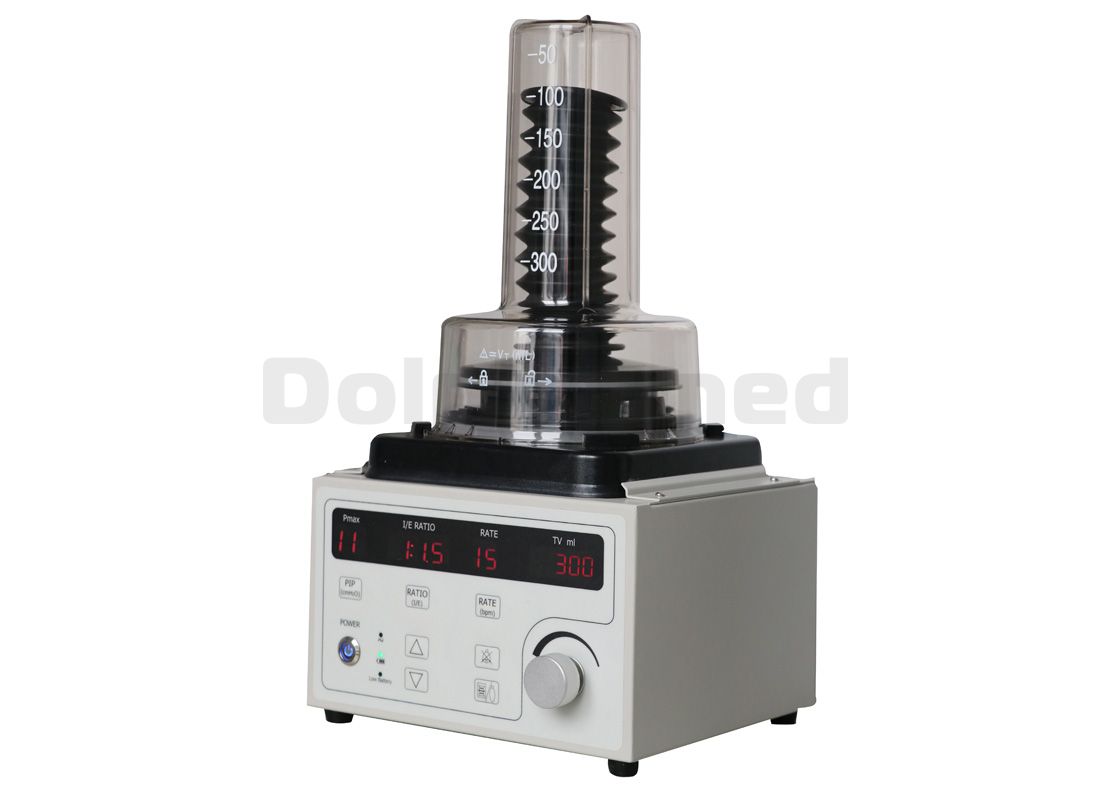

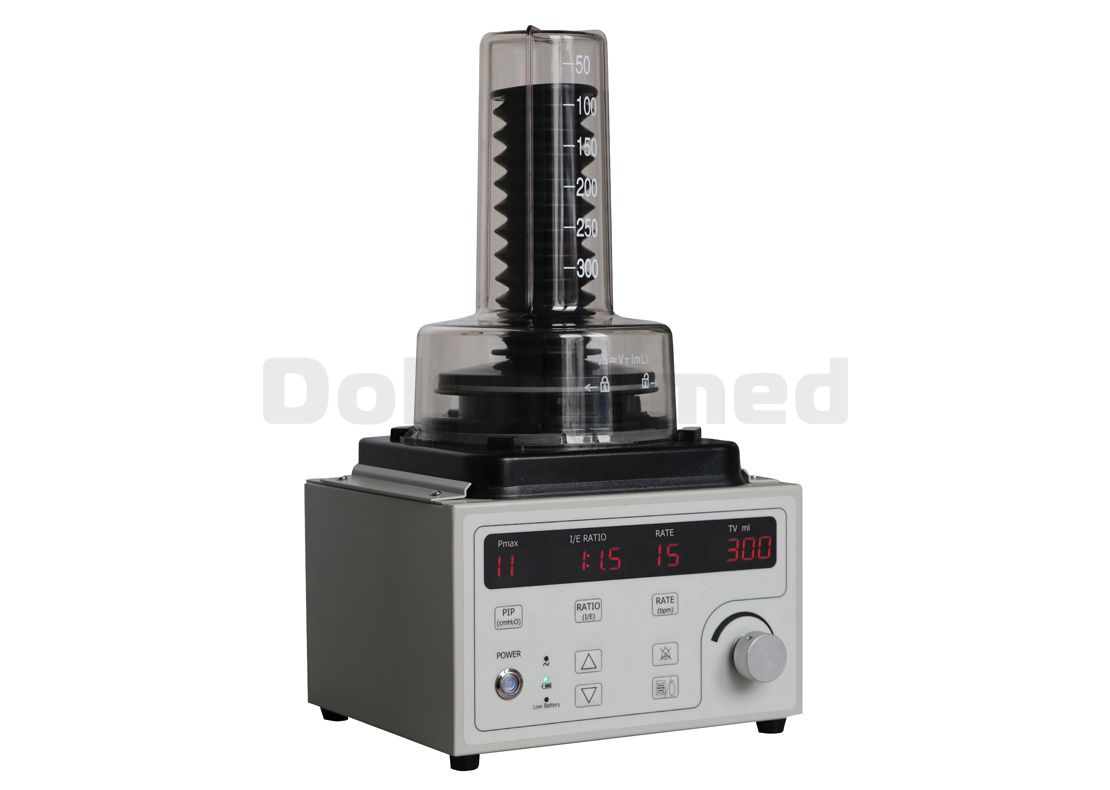

 Veterinary Anesthesia Ventilator(Model:DAV-60vet)

1,Compact and salve the space.

2,Light and easy to move,save animal hospital cost.

3,With breathing mode IPPV,achieve the breathing automatically,

assure the animal more comfortable.

4,With big animal bellow and small animal bellow,specially for animal use

5,the gas source pipeline take the high precious gas source,no leakage forever.

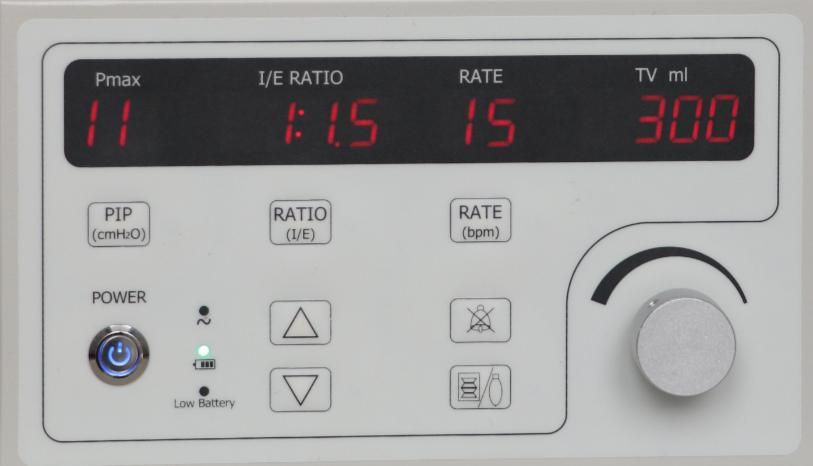

6,LCD digital display the important parameter.

7,Set parameter at a key interface,very easy and simple to operate.

8,Build in battery could continue one more hours in case of power failure

9,Matching with different brand veterinary anesthesia machine


Specification:

Pneumatically driven and electrically controlled

Display:LCD digital display

Animal Bellow:

Big animal:300-2000ML(optional))

Small animal:0-300ML

Monitoring:

Tidal volume,breathing rate,I:E ratio,Peak airway pressure,

TV:  0-300,300-1600ml

Breathing rate:4~60bpm

I:E ration:1:1~1:4 adjustable

Upper airway pressure:2~6kpa

Lower airway pressure:0.6~2kpa

Alarm:Battery low,Power failure,Airway pressure high/low

Alarm Silence

Manuel/Auto Switch

PIP scope:5-60

Transportation and Storage:

The transportation or storage environment must not exceed below limits:

Environment Temperature: -10~+35°C

Relative humidity limits: 20%~60%

Atomosphere pressure: 700~1060hPa


Configuration include:Main unit,bellows(0-300ml),foldable bag,bellow cover,medical corrugated pipelines,O2 supply pipeline,power cable,flow sensor,bellow:300-2000ml(Optional)
