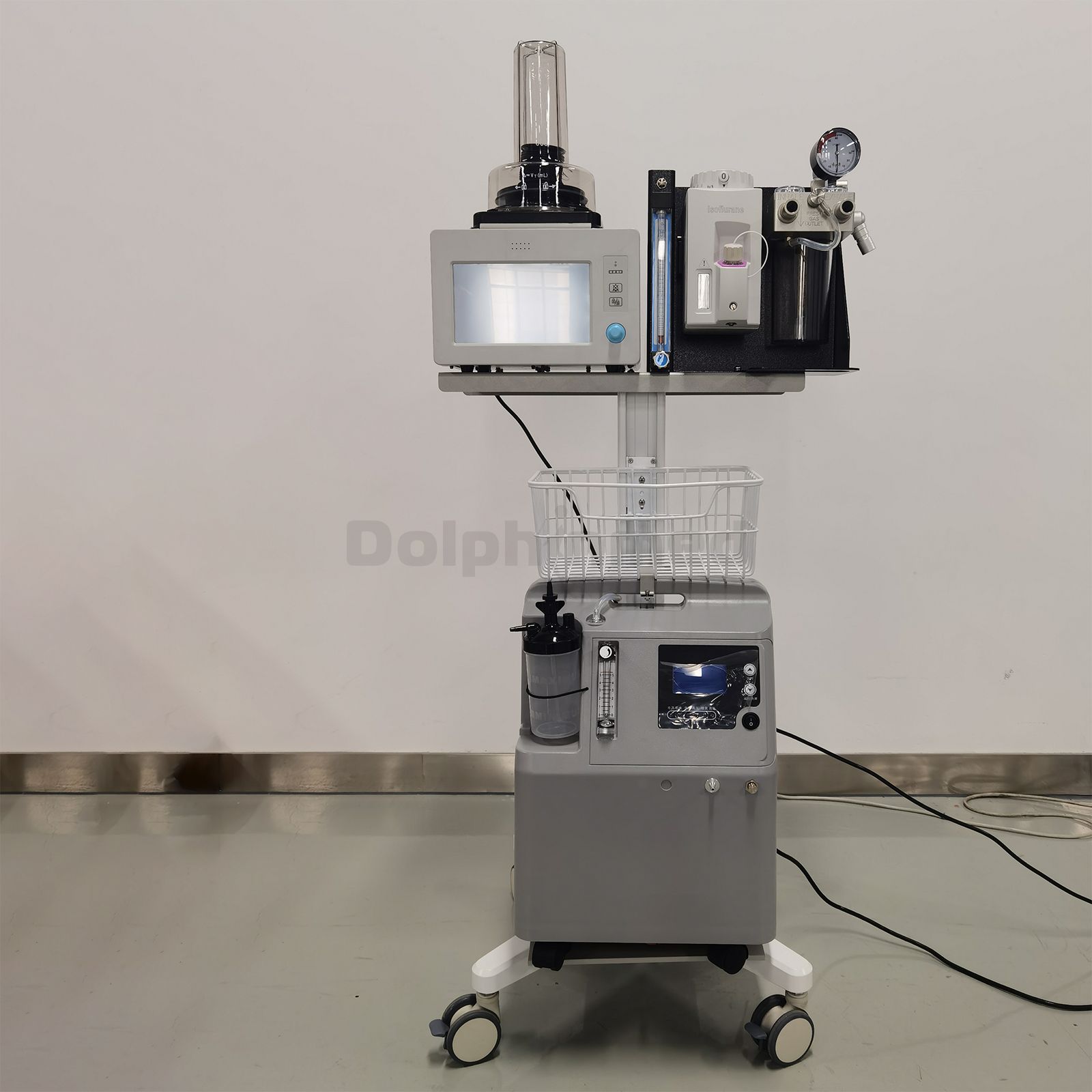

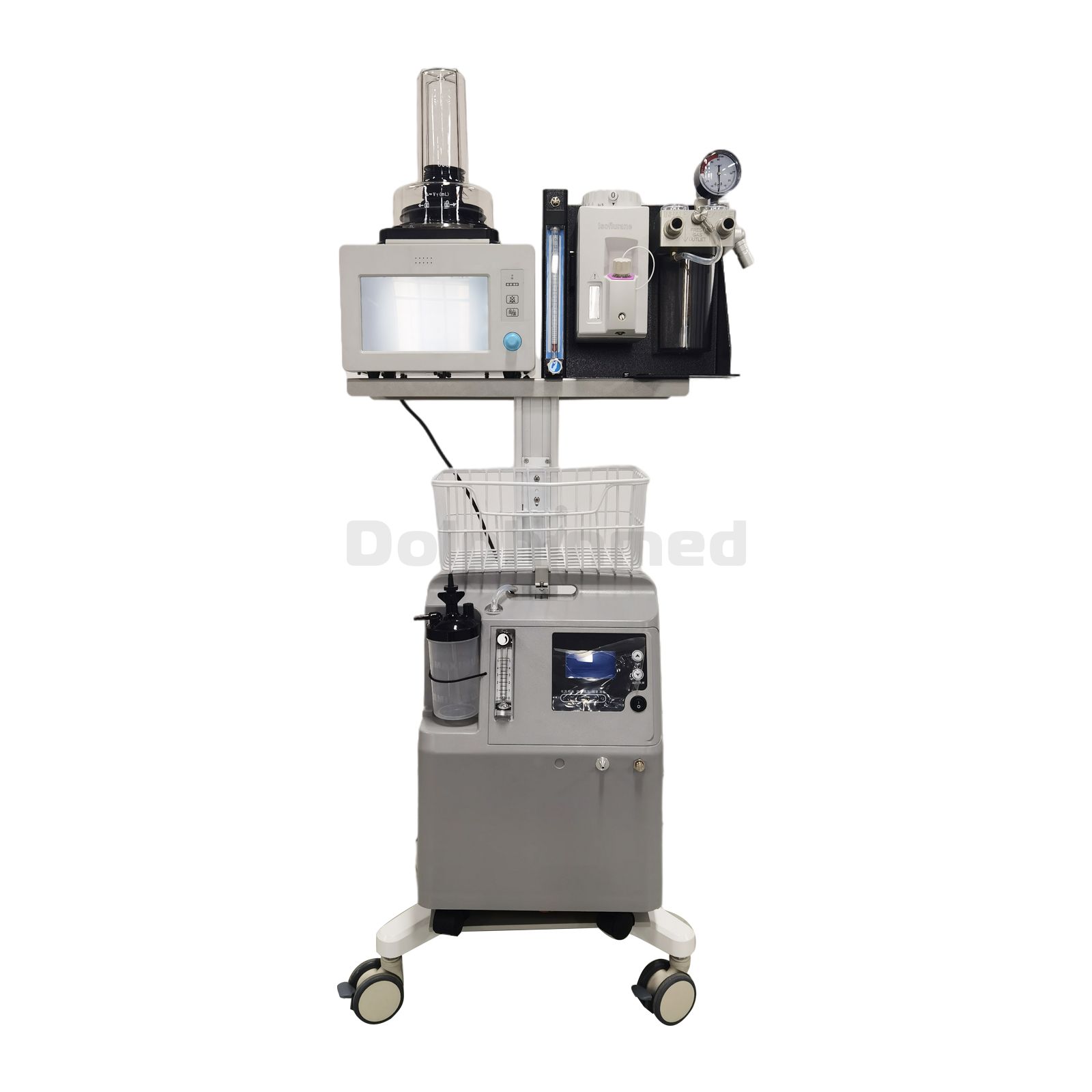

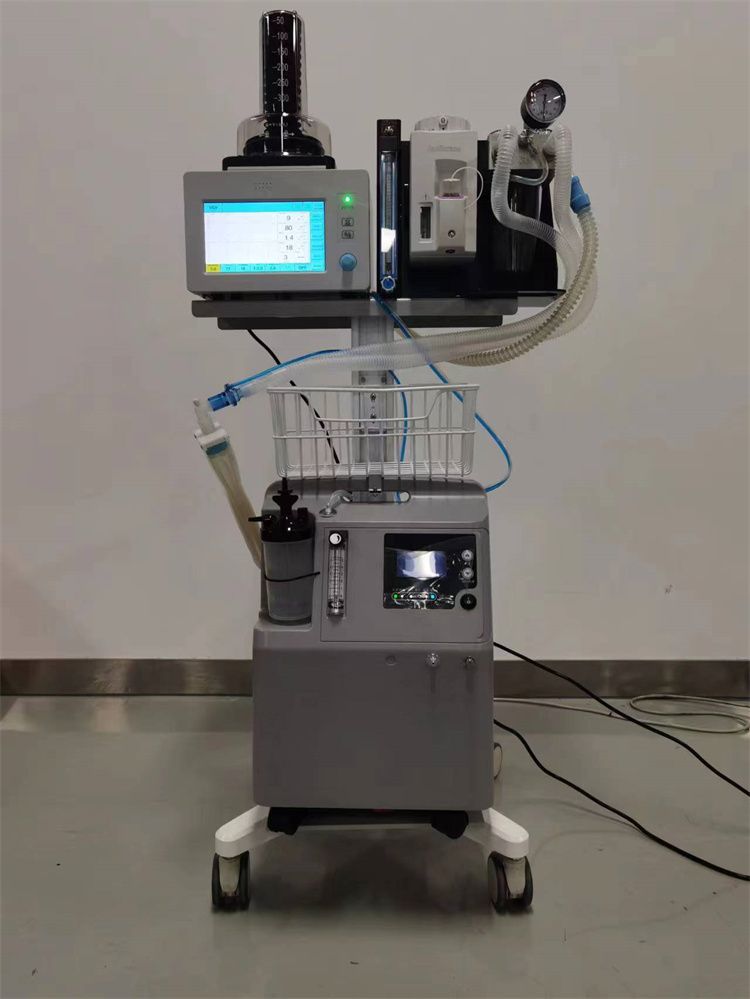

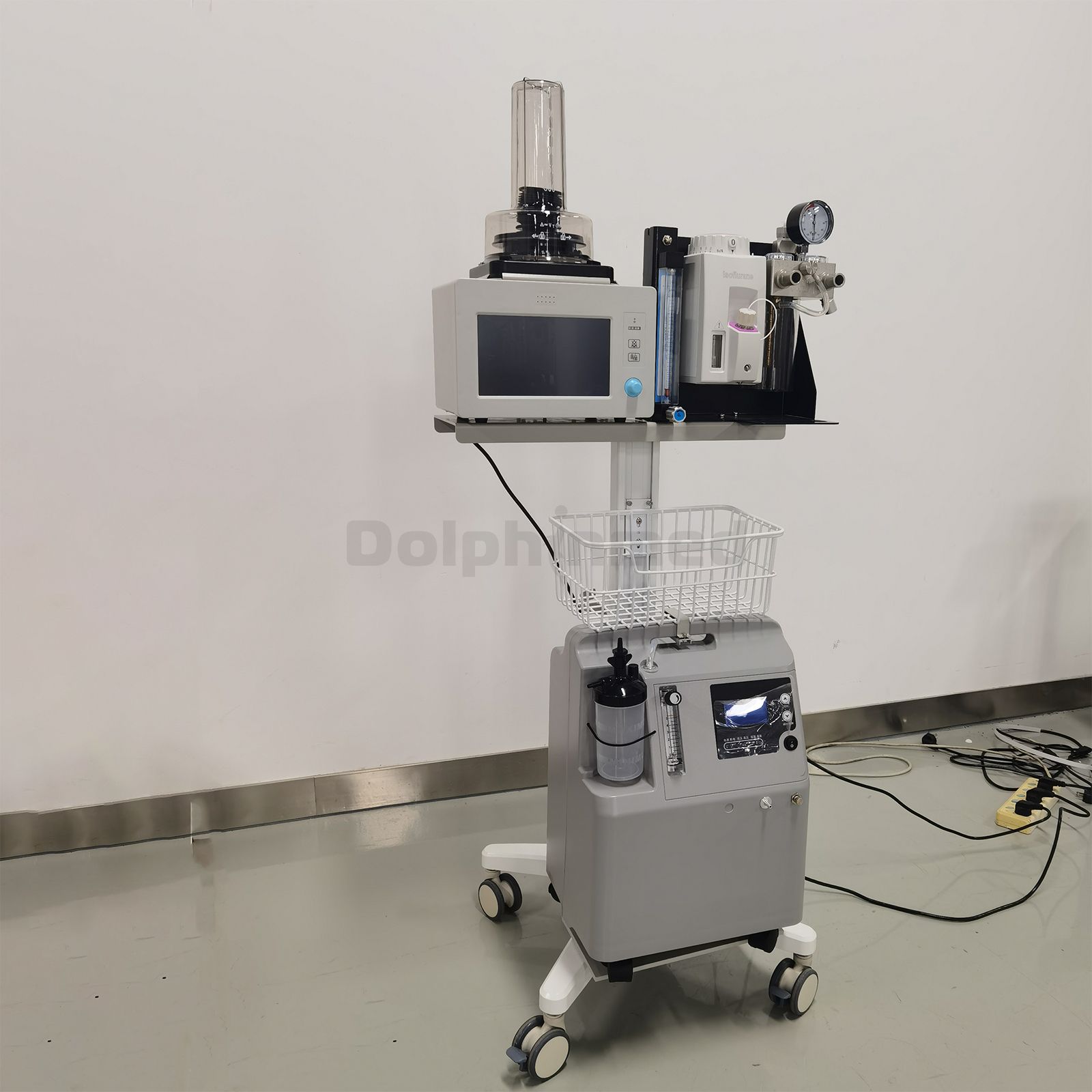

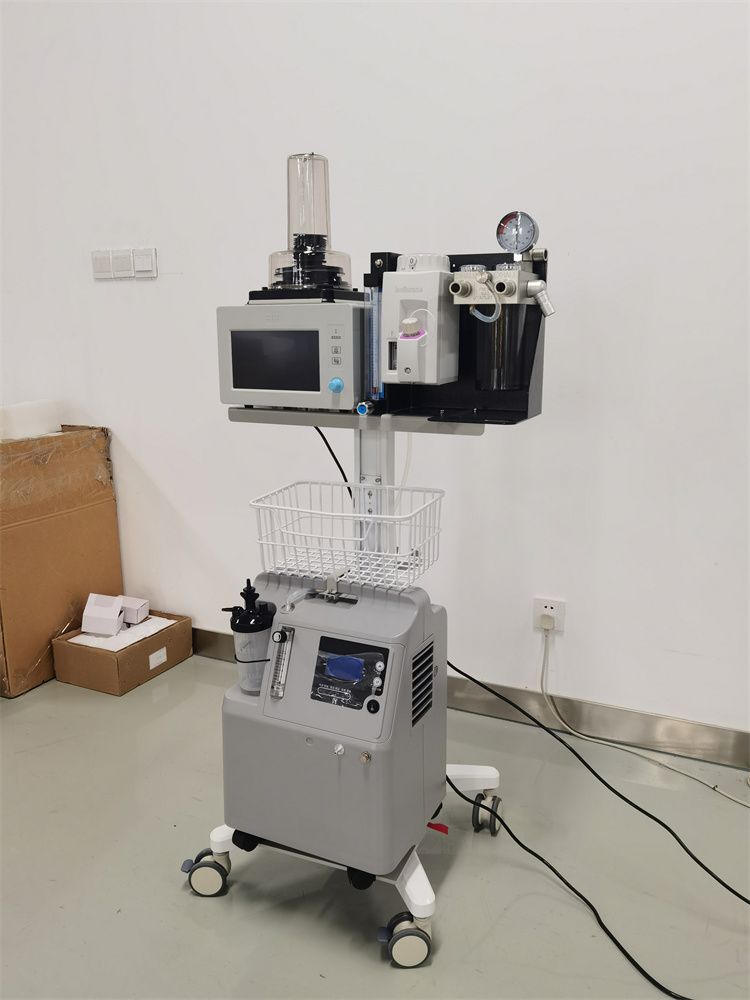

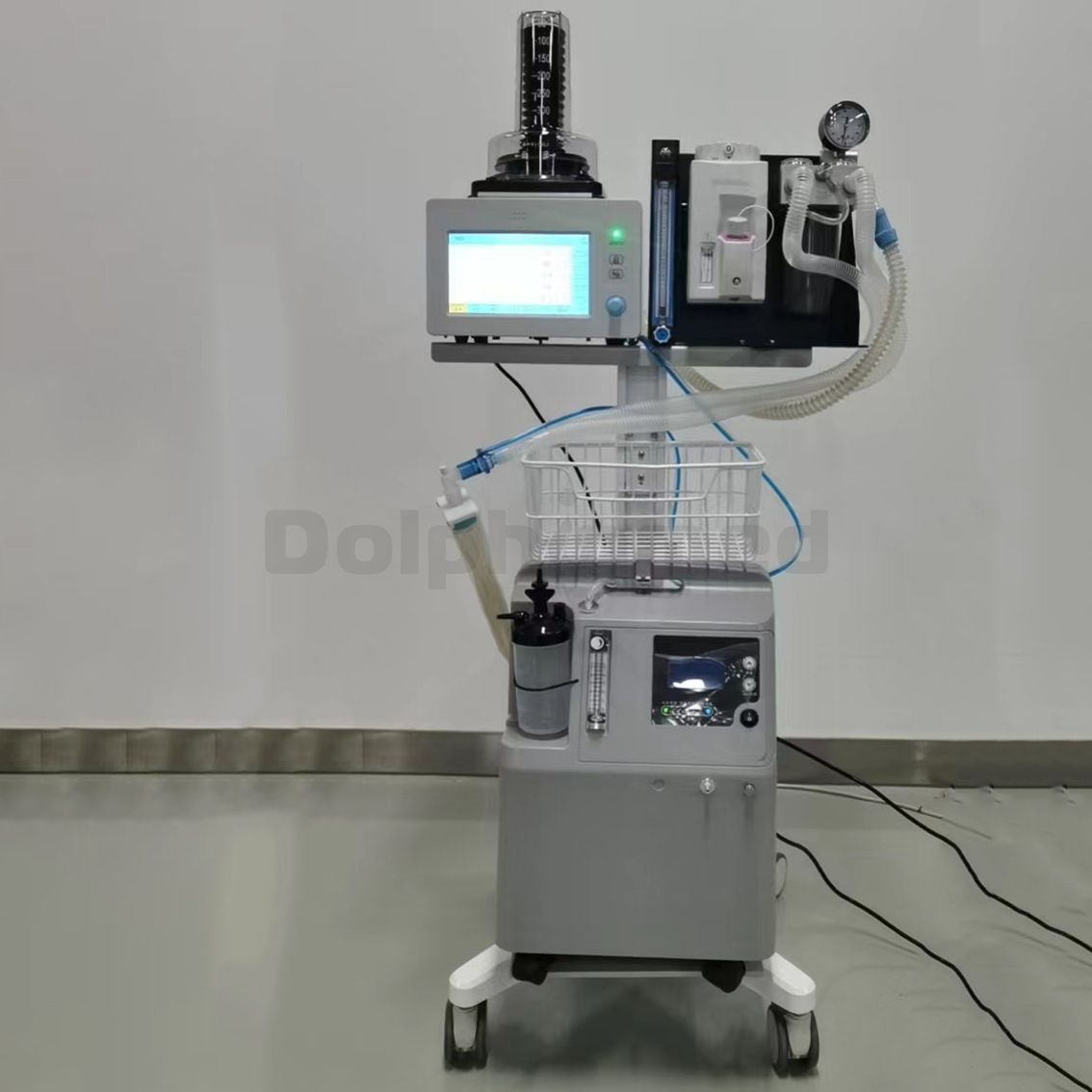

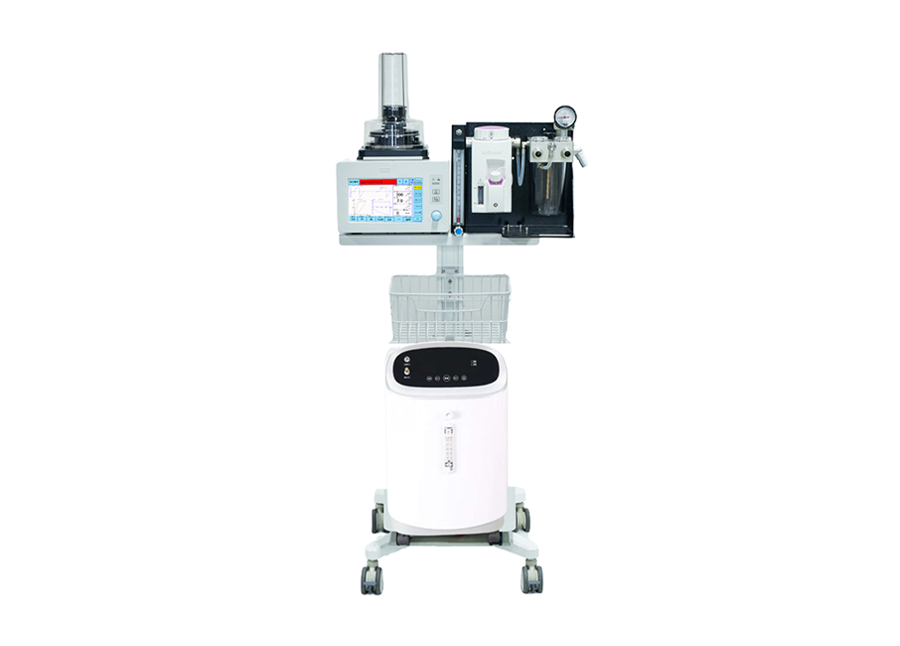

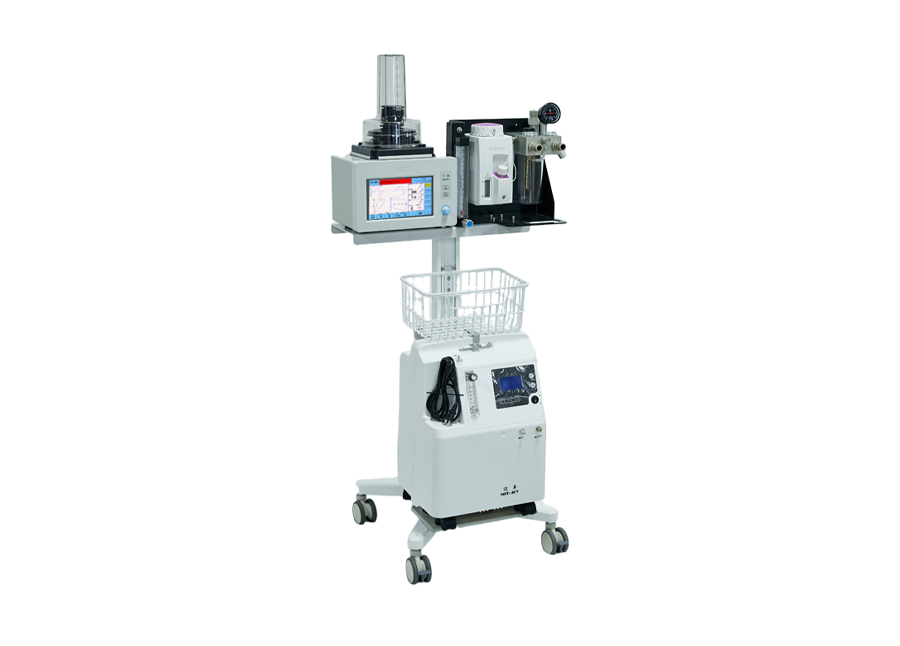

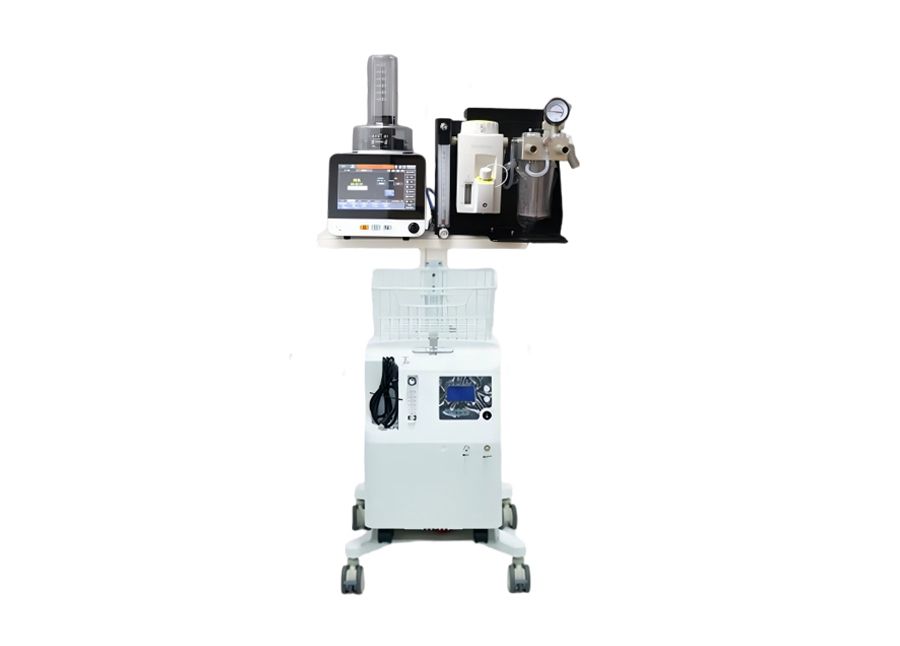

Veterinary Anesthesia Machine DA1200VT

Share:

Dolphinmed delivery high precious veterinary anaesthesia equipment system .This machine is driven by turbine with intergrated design,no gas source source.It is suitable for animal hospital, pet clinic and animal laboratory. This technical index of animal anaesthesia machine can meet the needs of general anesthesia and medical research on mice, dogs, cats, rabbits, monkeys, pigs, sheep and other animals in animal laboratory.



Products description



Feature

1.Integrated design, ventilator turbine drive, no gas source required

2.Smart 9-inch touch screen;integrated anesthesia machine with ventilator

3.Breathing modes includePCV,VCV,SPONT,DEMO.Just set the weight,other parameters are automatically calculated

4.With Electric PEEP function

5.Animal-specific bellows design to meet the needs of clinical scientific research

6.The internal battery can be used for more than two hours

7.Suitable for small animals,Non-breathing circuit(Jackson or Bains Absorber)is available

8.Selectatec-bar and quick change vaporizer mounting device

9.Professional airtight breathing circuit design,provide the stable gas anesthesia, save anesthesia gas consumption, to ensure a clean operating room and laboratory environment

10.External and reusable soda lime canister, easily watch and replace soda lime

11.With Oxygen flush function to ensure that clinical anesthesia demand and Oxygen supply demand

12.Anaesthesia CO2 absorber assembly has no dead angle design, fast anesthesia, short recovery and high precision.

13.Provide a special Pop-Off valve,unique design,it can connected to the exhaust gas recovery system and provide a continuous 2 cmH2O negative pressure for the respiration airbag ,reducing valve to prevent pressure to hurt the animal, ensure the animal safety

14.Provides an accurate oxygen flow meter with a display range of 0 to 5LPM

15.Vaporizer:the output concentration is not affected by the change of flow, pressure and temperature accurate ;equipped with safety locking device to prevent anesthetic leakage

16.lsoflurane,sevoflurane and halothane vaporizer are optional

17.The hard aluminum solid shell is used, and thesurface sanding treatment is adopted, so that the cleaning and disinfection are more convenient

18.Visible inspiration and expiration valve

19.With fresh gas output connector ,specifically designed to accomodate low flow


Vet Anesthesia ventilator

Respiration mode

PCV,VCV,SPONT,DEMO

Bellow

Big animal t:50-1600ml,small animal:0-300ml

Screen

9 inches touch screen

Waveform

Pressure,Flow,Volume

Loop

PV,PF,FV

Tidal volume

Mechanical control:20-1600ml

Manual control:5-1600ml

BPM

1-100bpm

I:E

9.9:1to1:9.9

Inspiratory time

0.1s-10.0s

Apnea

0-50%

PEEP

Off,3-20cmH2O

Pressure support

5-60cmH2O

Flow trigger

0.5-20L/min

Pressure trigger

-1~20cmH2O

PSV Inspiratory terminal level

25%

Monitoring

Tidal volume,breathing rate,Spontaneous breathing rate,I:E,Spontaneous minute ventilation volume,Minute ventilation peak airway pressure,Average airway pressure,PEEP,Inspiratory platform pressure,FIO2

Alarm parameters

Tidal volume,Minute ventilation volume,Frequency,Airway pressure ,Continuous airway pressure,Negative pressure alarm,Apnea alarm,Air supply pressure failure alarm,Power supply alarm,Low battery alarm,Battery exhaustion alarm,Oxygen battery failure alarm,FIO2(optional),FICO2(optional)

Power supply

220V±10%,50HZ±1%



Vet Main unit

Ventilation mode

Open,Closed,half-closed,half-open

Drive mode

pneumatic

Application

0.5-100kg animal

Anesthesia Vaporizer

Isoflurane,Sevoflurane,Halothane

Oxygen Flush

25L/min~75L/min

Gas source pressure

Oxygen 0.25Mpa~0.65Mpa

Trolley

High-quality aluminum alloy profile, with storage frame and special interface for exhaust gas emission

Flowmeter

Oxygen flow meter for animals,

Scale range:0~5L/min



CO2 Absorber

Sodium Lime Tank Capacity

500ml-700ml

Absorber

The animal-specific integrated circuit can be sterilized at high temperature and high pressure at 134 . The dedicated interface can be connected to an open circuit, suitable for low-flow small animals.

Valve piece

Visible ceramic valve piece, easy to observe animal breathing.

Pop off valve

Directs the waste anesthetic gas from the machine to a scavenging system. In the completely open position, the pop-off valve will release pressure at 2 cm H2O, while maintain a constant passive volume in the breathing bags.

Other advantage

Strong air tightness, reduce airway resistance;Design of quick replacement of sodium lime Canister



Anesthesia Vaporizer

Concentration scope

Isoflurane:0.2%~5%

Sevoflurane:0.2%~8%

Flow rate scope

0.2L/min~15L/min

Anesthetic capacity

Dry :340ml

Wet :300ml

Mounting type

Selectatec or Cagemout
