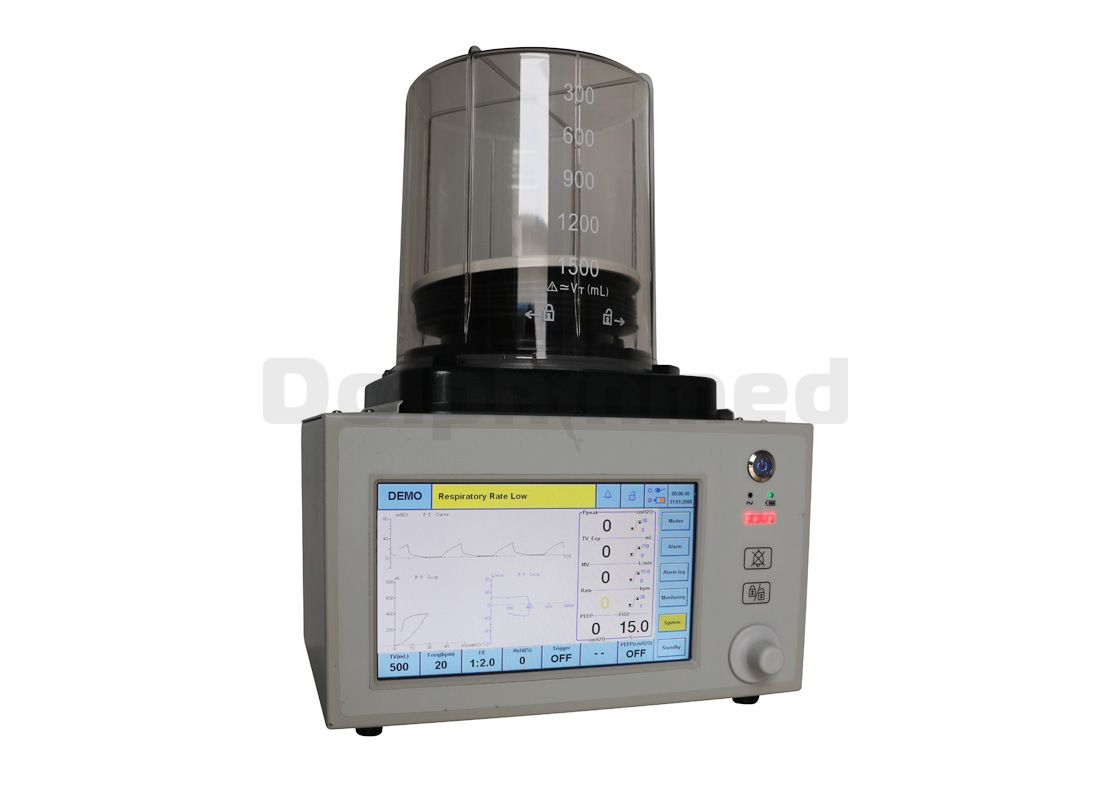

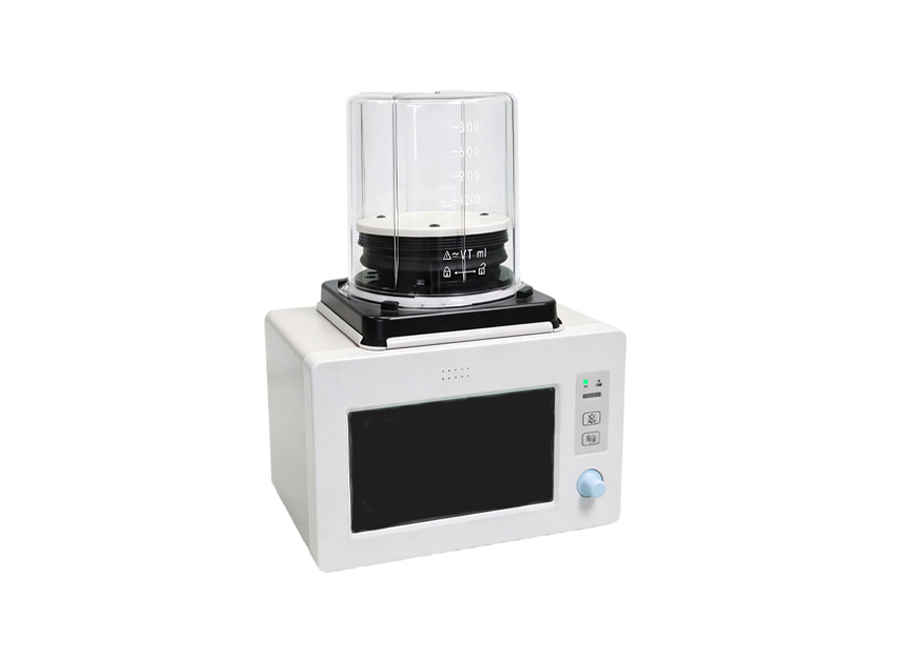

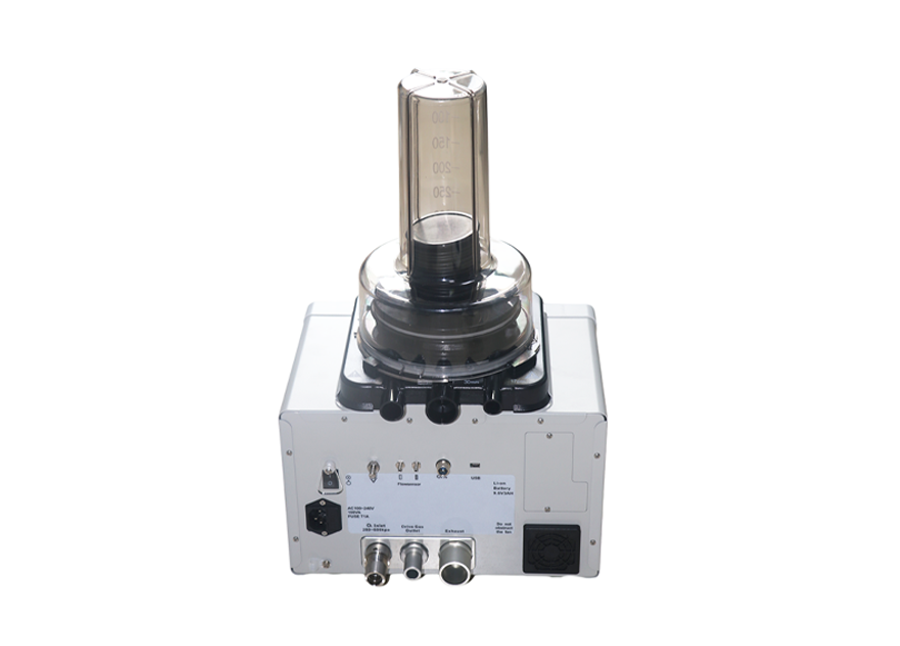

Anesthesia Ventilator(Model:DAV80)
  • Anesthesia Ventilator(Model:DAV80)
  • Anesthesia Ventilator(Model:DAV80)
  • Anesthesia Ventilator(Model:DAV80)
  • Anesthesia Ventilator(Model:DAV80)
  • Anesthesia Ventilator(Model:DAV80)
  • Anesthesia Ventilator(Model:DAV80)
  • Anesthesia Ventilator(Model:DAV80)
  • Anesthesia Ventilator(Model:DAV80)

Anesthesia Ventilator(Model:DAV80)

Share:

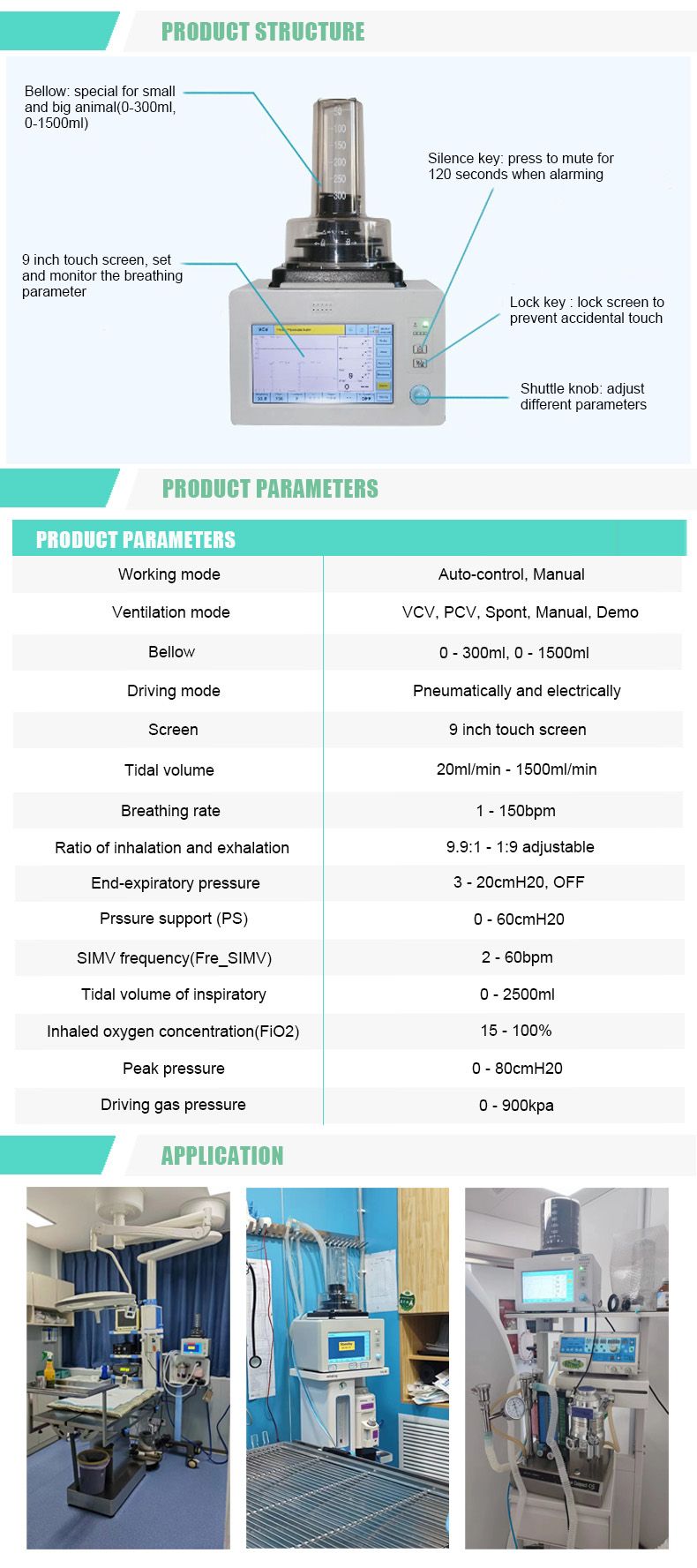

Specifications

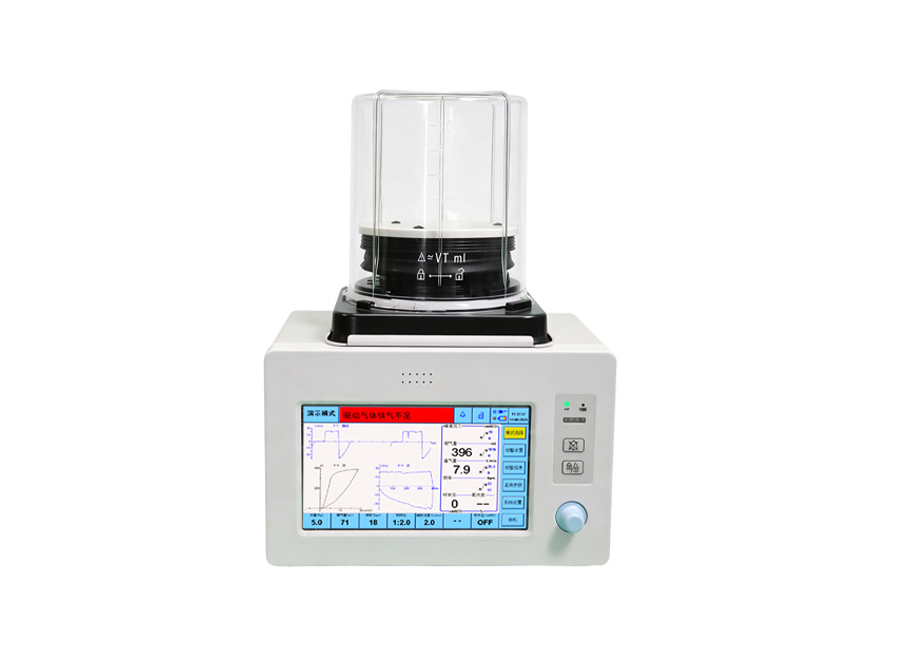

Display:8 " TFT, with touch screen.

Driving gas:O2 or Air,Inlet pressure,280-600 kPa.Max flow ≤ 120 L / min.

Mode:VCV,PCV,SIMV-VC,SIMV-PC,PSV,Manual/SPONT.

Optional: SIMV-PRVC, PRVC

Waveform:Pressure,Flow-rate,Volume

Loop:PV loop, PF loop,FV loop

Safety Pressure:Does not exceed 6 KPa.

Battery Type:Li-ion,work time more than 2 hours


Products description

Feature:

●Suitable for a range of anesthesia at adult,pediatric

●Comprehensive Safety&Alarm system,make sure the operation accuracy and stability

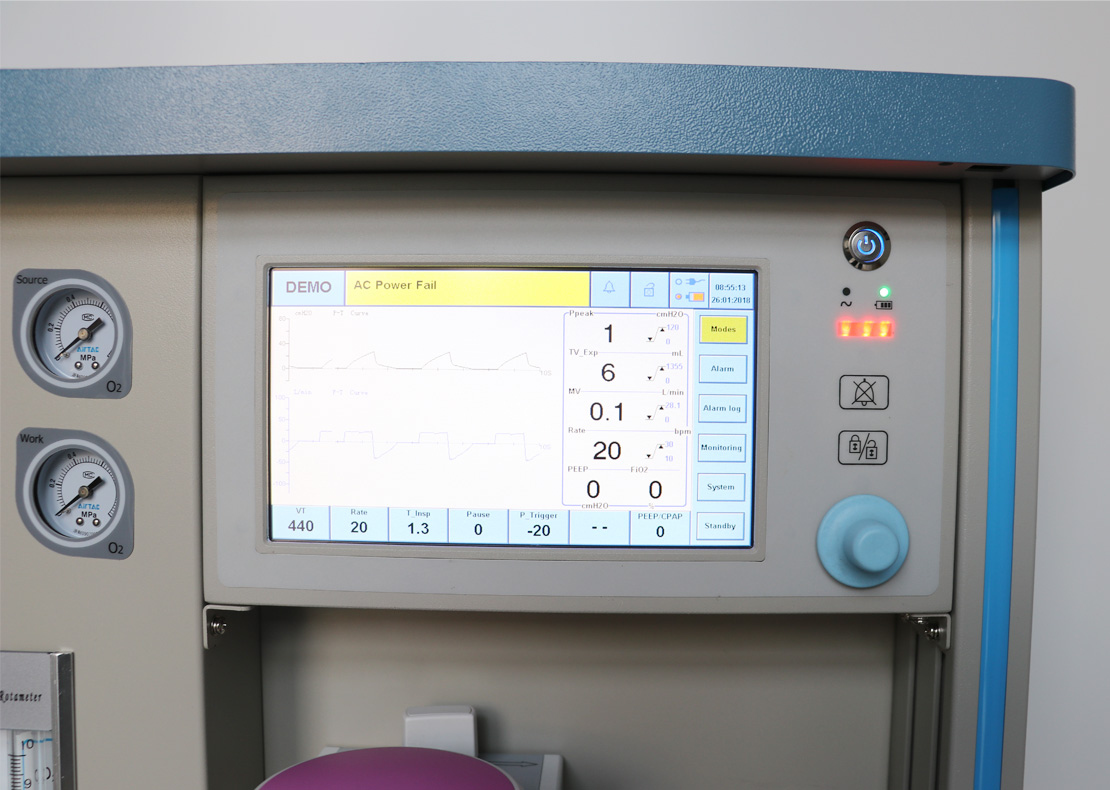

●8 inch TFT display with touch screen,shuttle knob design, quick and efficient operation

●Powerful ventilation mode meet all complex clinical requirement

●Three levels alarm system, visual and sound alarm information.

●The core components are imported from top international and original, and the industrial control chip is chosen

●High precious sensor and valve technology make sure the pressure ,flow and volume monitor and control at high safety, stability and precision

●Built-in backup battery provide the emergency power supply to the unit.


Specifications

Display:8 " TFT, with touch screen.

Driving gas:O2 or Air,Inlet pressure,280-600 kPa.Max flow ≤ 120 L / min.

Mode:VCV,PCV,SIMV-VC,SIMV-PC,PSV,Manual/SPONT.

Optional: SIMV-PRVC, PRVC

Waveform:Pressure,Flow-rate,Volume

Loop:PV loop, PF loop,FV loop

Safety Pressure:Does not exceed 6 KPa.

Battery Type:Li-ion,work time more than 2 hours


Parameter Setting Range:

Tidal Volume:Range: 20 - 1500ml;

Respiratory rate::1~100 bpm;

Inspiratory time:0.1 ~ 10.0 s;

Respiratory ratio: 9.9:1 to 1:9.9;

Percentage of inspiratory pause:0 to 50%;

PEEP:OFF, 3 ~ 20 cmH2O

Pressure Support:0 ~ 60 cmH2O

Pressure Control:5 ~ 60 cmH2O

Flow trigger: 0.5 ~ 20L/min

Pressure Trigger: -1 ~ -20 cmH2O

PSV Insp Termination Level:25%

Monitoring Parameter

Inspiratory tidal volume,Expiratory tidal volume,Minute ventilation,Spontaneous minute ventilation,Respiratory rate,Spontaneous breathing frequency,Respiratory ratio,Peak airway pressure,Mean airway pressure,PEEP,Inspiratory plateau pressure,FiO2(optional)

Alarm Setting:

Tidal volume:High/Low;Minute ventilation:High/Low;Respiratory rate:High/Low;

FiO2(optional):High/Low;Airway pressure:High/Low ;FiCO2 (optional):High/Low


Continuous Positive Airway Pressure:Greater than (PEEP +15) cmH2O,

15 s sustained when an alarm is triggered.

Negative pressure alarm:Airway pressure is less than (-10) cmH 2 O.

Apnea alarm:Setting time is 10 ~ 60 s

Gas deficiency alarm:less than 280 kPa.

AC power failure alarm:The mains breaks down or the power cord disconnects

Low battery alarm: Time is 20 min.

Alarm battery is exhausted: time is 10 min.

Silent Alarm:≤ 120 s

O2 sensor failure:FIO2 <15% Vol;
