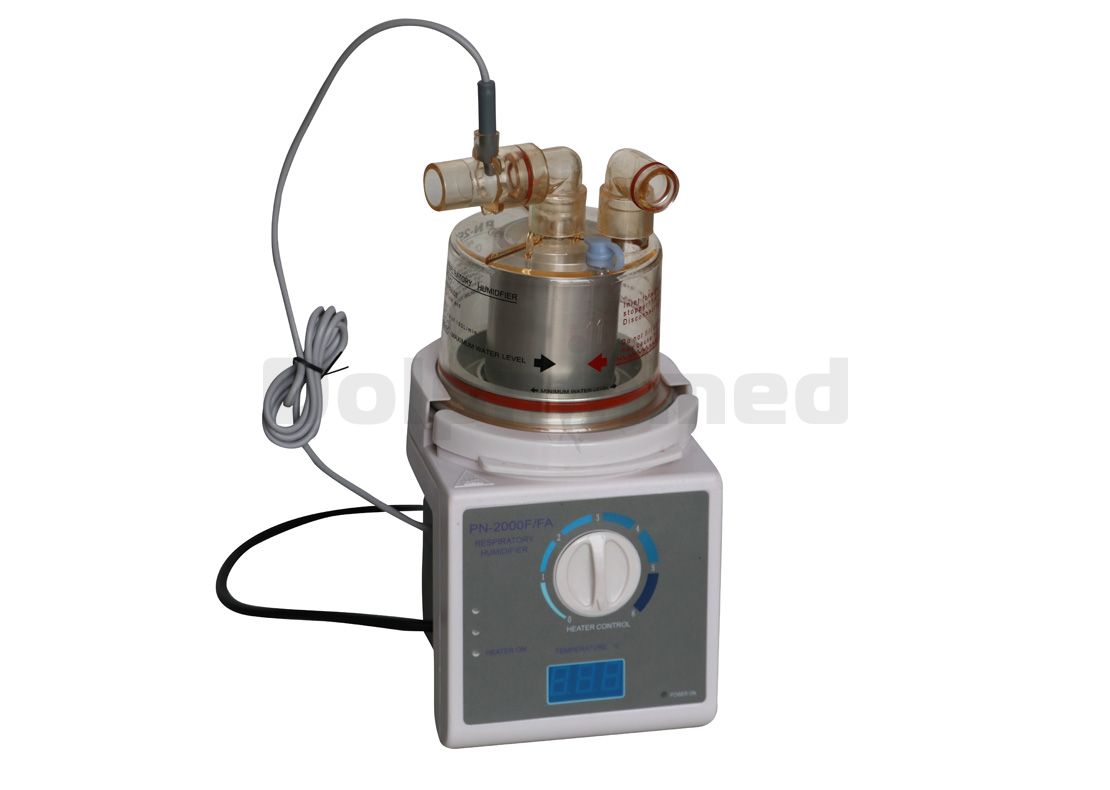

DP306 humidifer
  • DP306 humidifer
  • DP306 humidifer

DP306 humidifer

Share:

It is a kind of humidifying control devices that adopts principle of thermal equilibrium, microprocessor control and heat-sensitive sensor. It heats and humidifies for breathing circuit that patients need mechanical ventilation. It controls the temperature automatically, and equipped with over-heat protection device.

Products description

Main unit:

Application range: match with ventilator for heating and humidifying;

Control function: automatic temperature control;

Protection function: dry and over-heat protection;

Temperature monitor: digital display 0℃~75℃

Application temperature: 30℃~75℃

Maximum temperature: 75℃

Technical specification:

Power: 220V±22V 50Hz±1Hz

Input rate: ≤85W+15%

Size: 135*170*150(mm)

Working temperature: 5℃~40℃

Storage relative temperature: -10℃~+40℃

Storage relative humidity: ≤90%

Atmospheric pressure: 860hPa~1060hPa


Chamber:

Maximum water capacity: 280ml(PN-2000F Adult)

Maximum water capacity: 230ml(PN-2000FA Infant)

Maximum flow: 180L/min

Maximum working pressure: 2kPa

Inlet: 15mm F

Outlet: 22mm M
