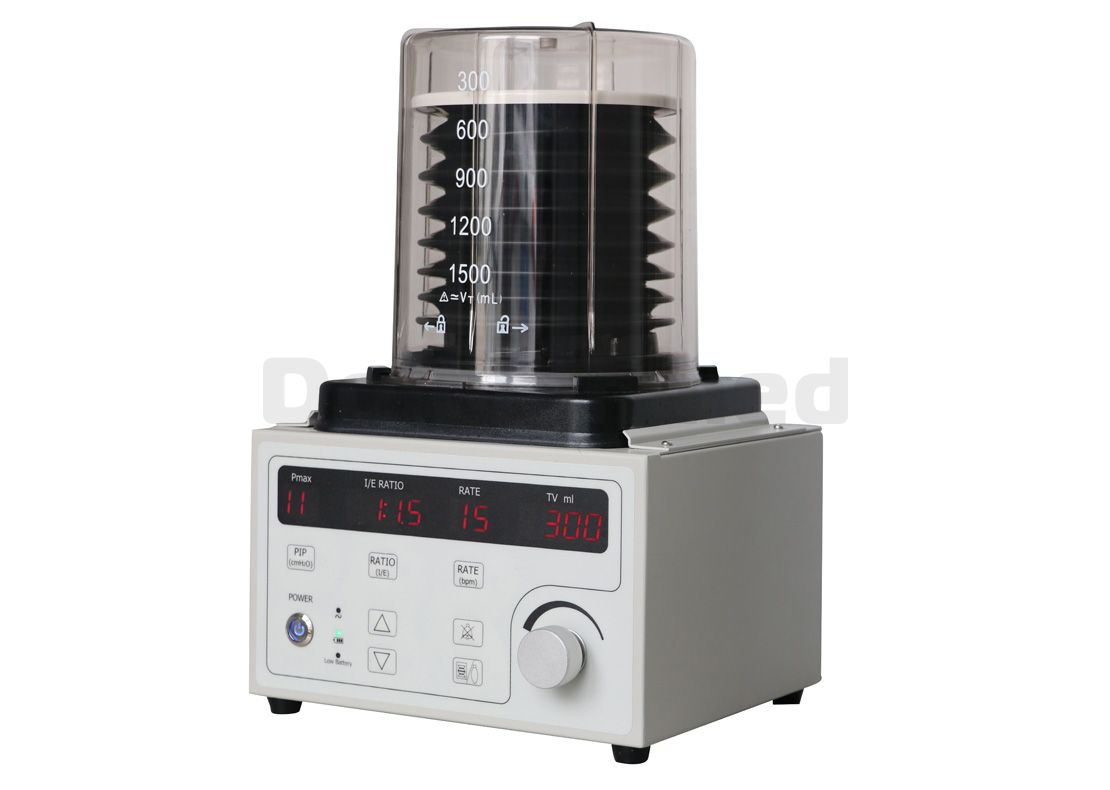

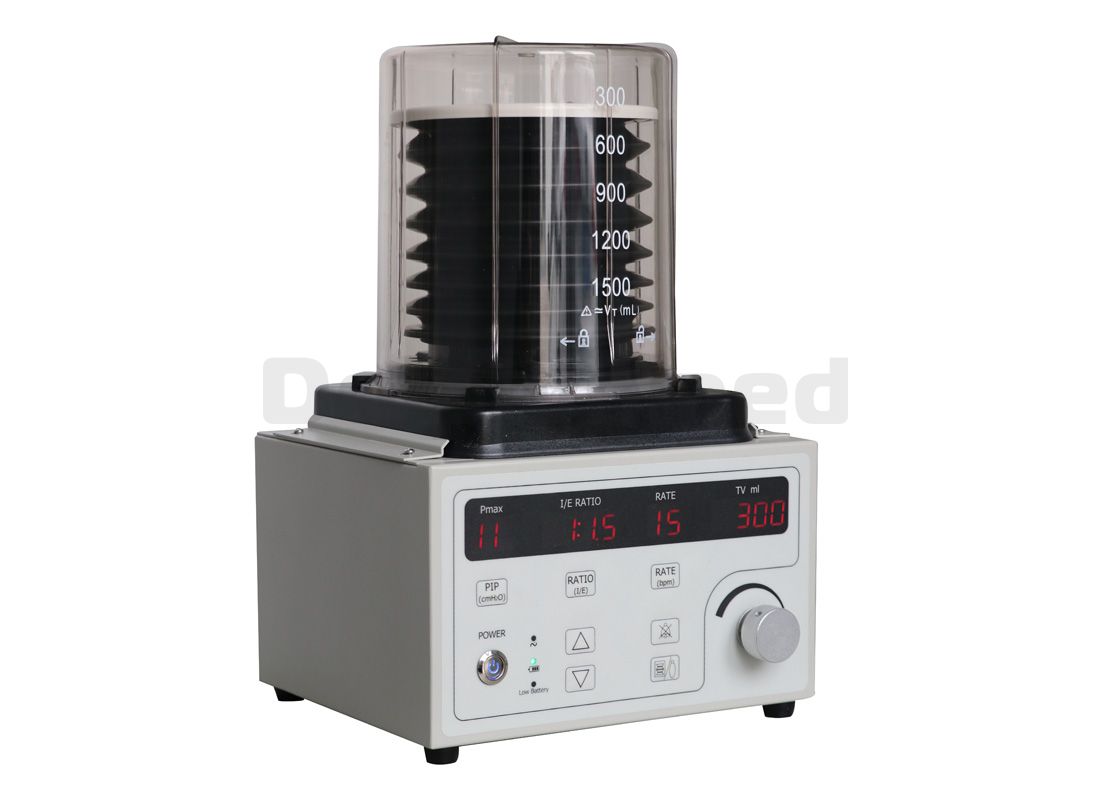

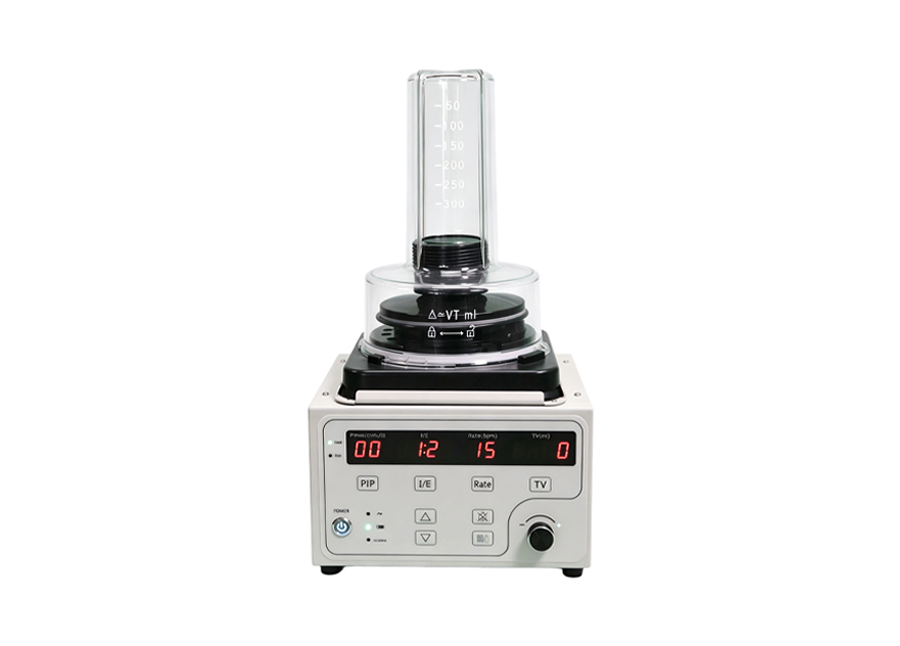

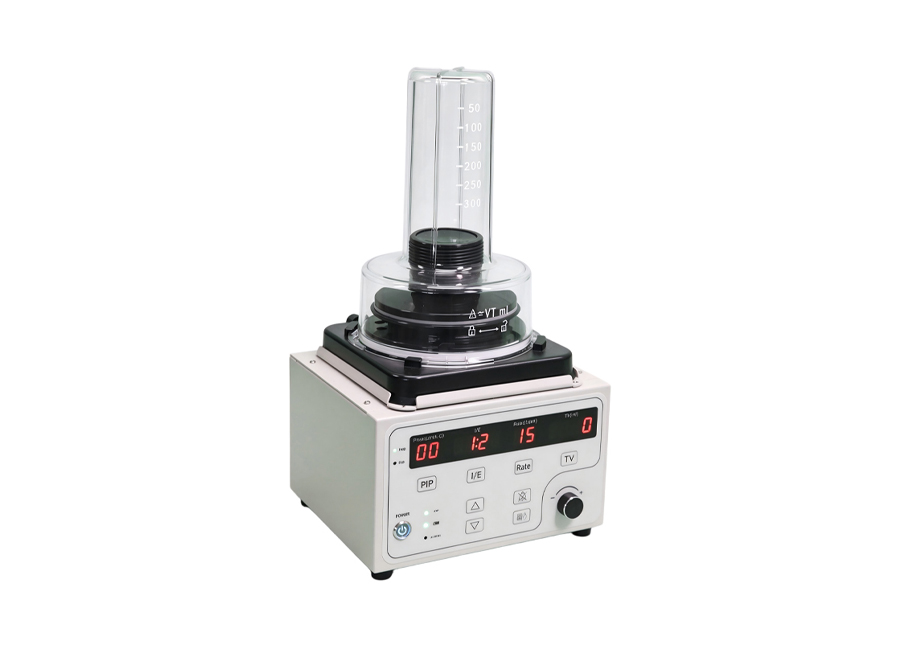

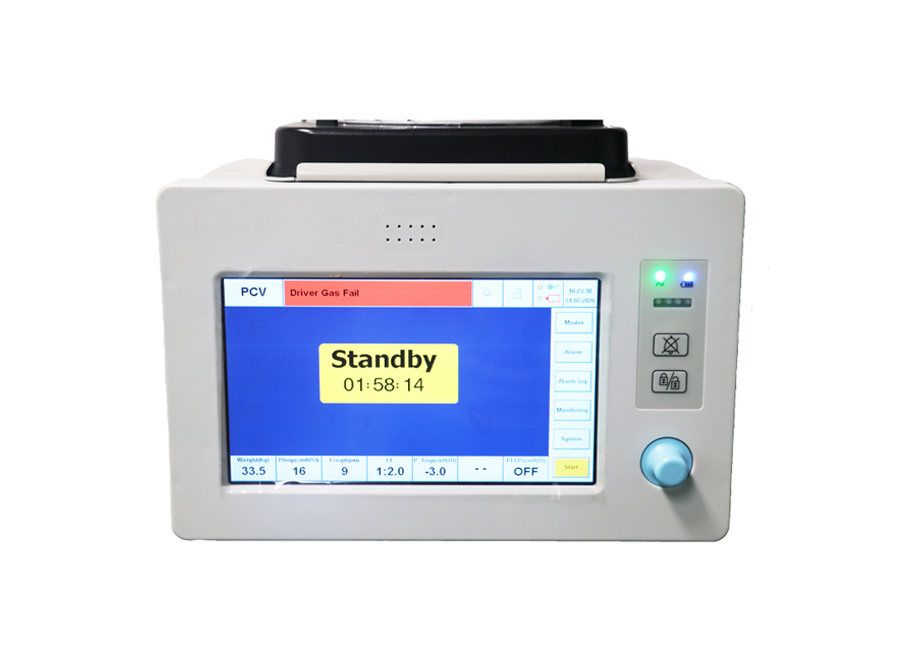

Anesthesia Ventilator(Model：DAV60)

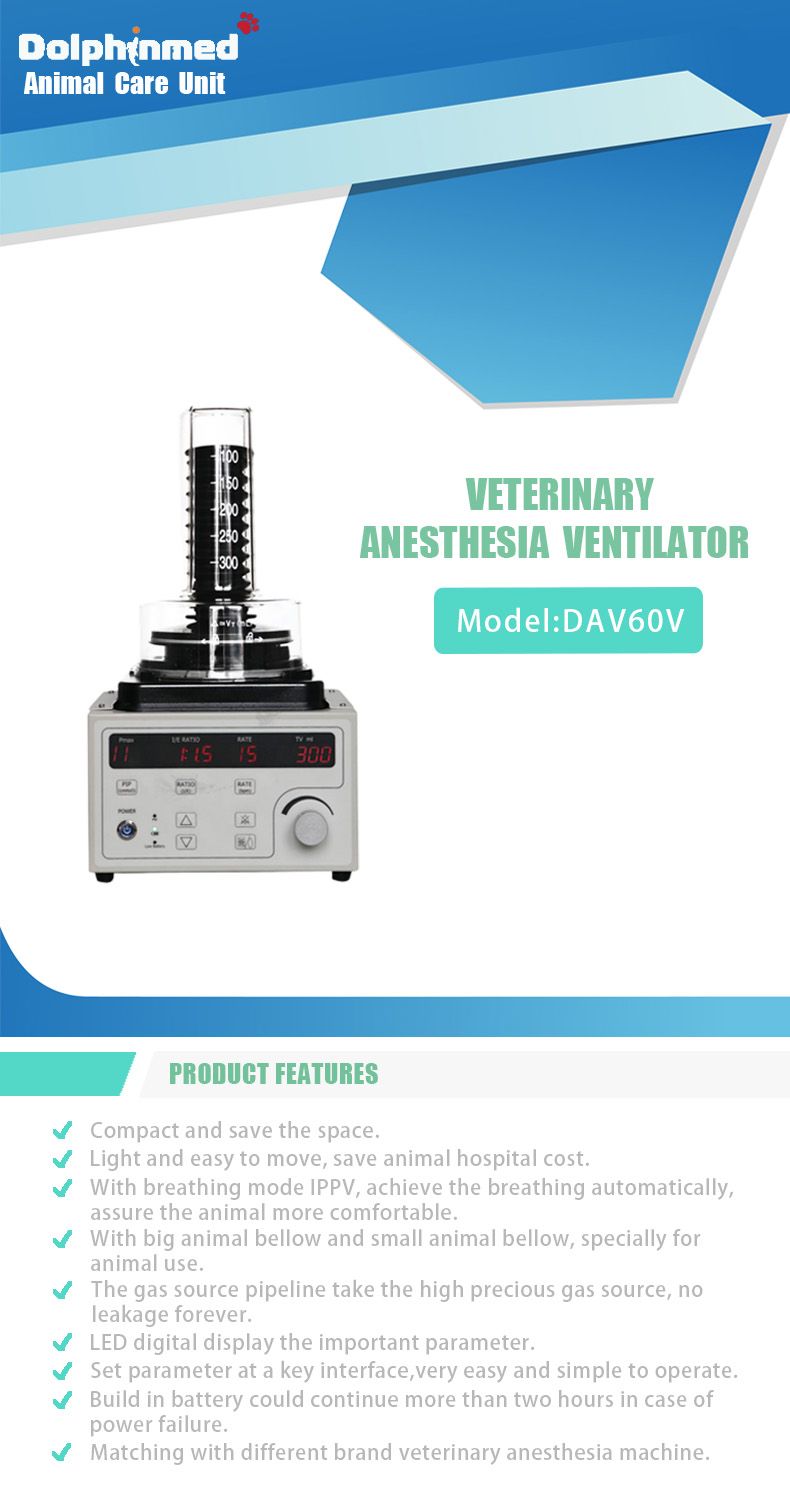

Feature：

● suitable for e range of anesthesia at adult，pediatric

● Built-in backup battery provide the emergency power supply to the unit at 2 hours

● PIP setting 5-60cmH2O,suit for wide range operation

● With breathing mode IPPV,achieve the breathing automatically,Assure the patient more comfortable.

● With adult bellow and child bellow

● the gas source pipeline take the high precious gas source,no leakage forever.

● LED digital display the important parameter.

● Set parameter at a key interface,very easy and simple to operate.

● Matching with different brand anesthesia machine

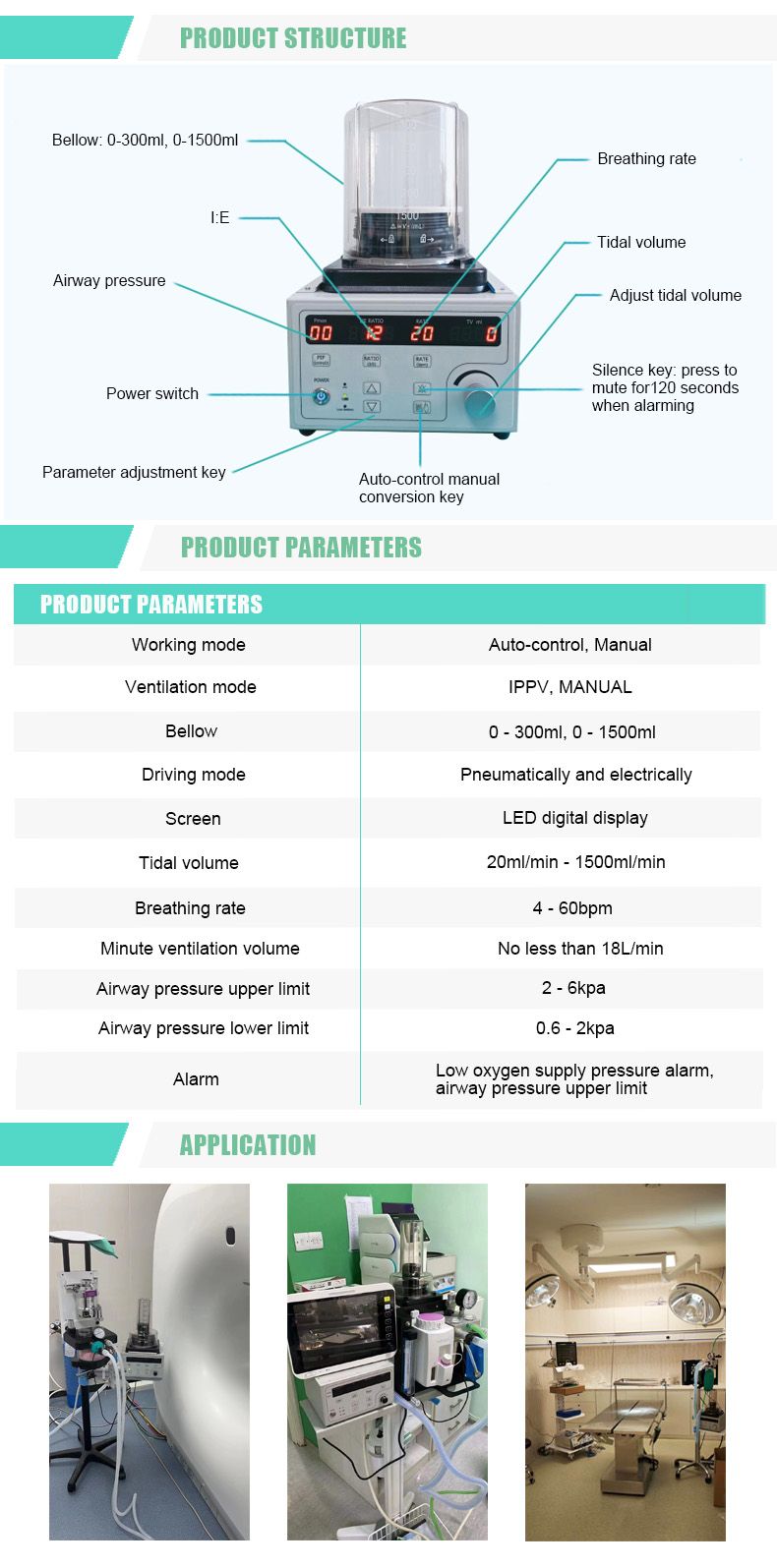

Specification：

Ventilation mode: IPPV,Manuel

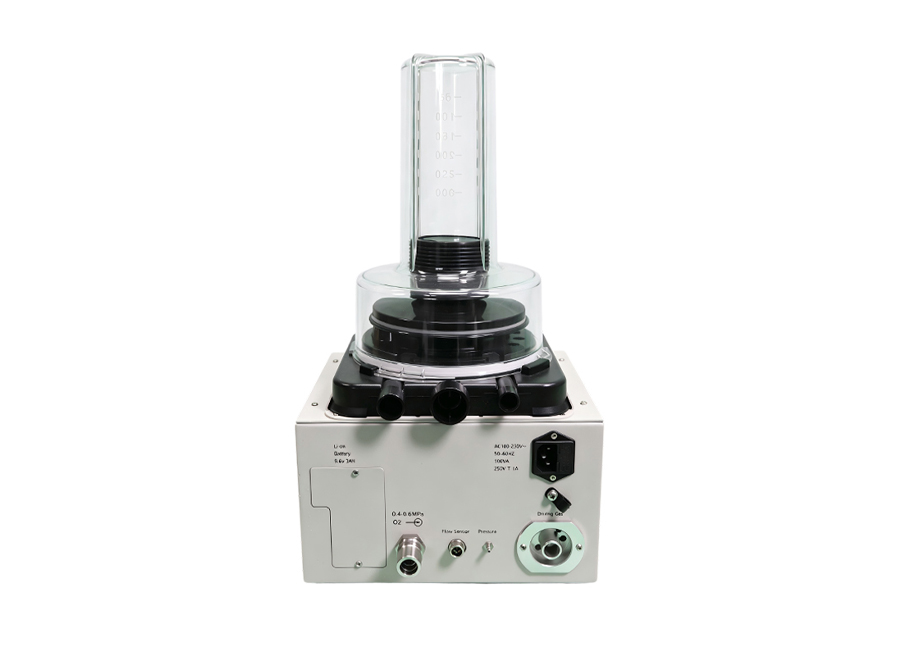

Pneumatically driven and electrically controlled

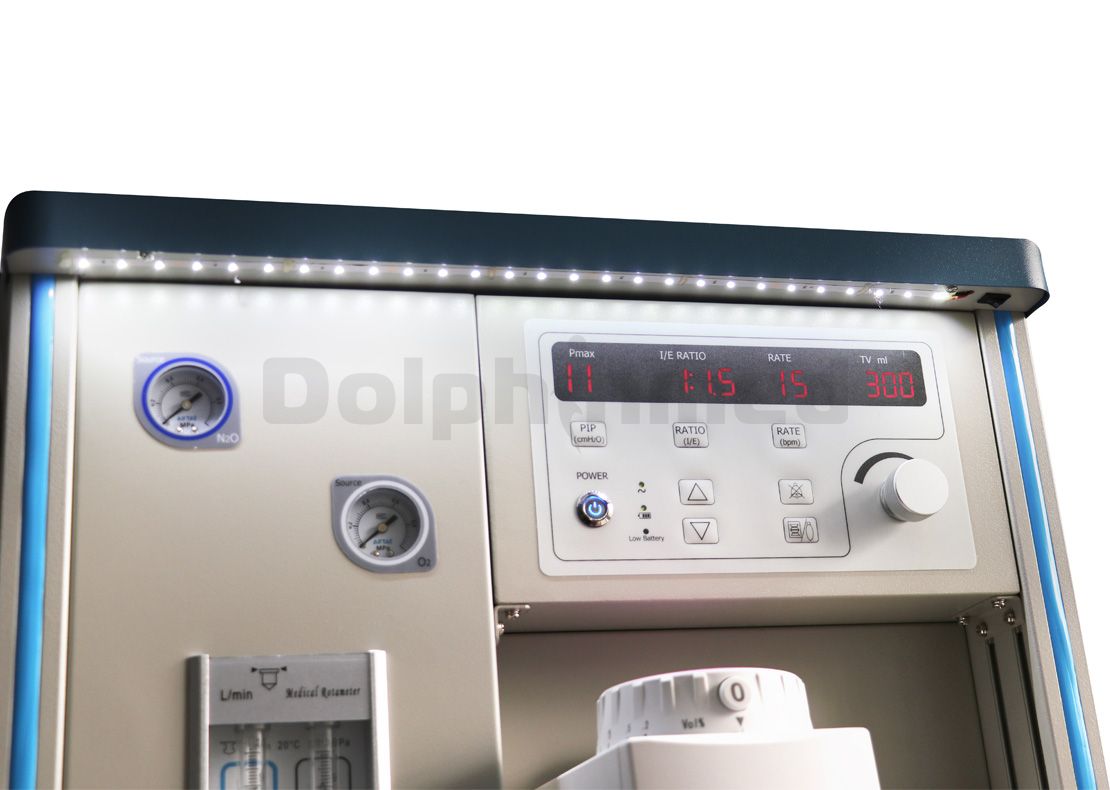

Display: LED digital display

Bellow：Adult：300-2000ML ; Pediatric：0-300ML

Monitoring：Tidal volume,breathing rate,I:E ratio,Peak airway pressure,

TV: 50-1600ml

Breathing rate: 4~60bpm

I:E ration: 1:1~1:4 adjustable

Upper airway pressure: 2~6kpa

Lower airway pressure: 0.6~2kpa

Alarm: Battery low, Power failure, Airway pressure high/low

Alarm Silence

Manuel/Auto Switch

PIP sets：5-60cmH2O
