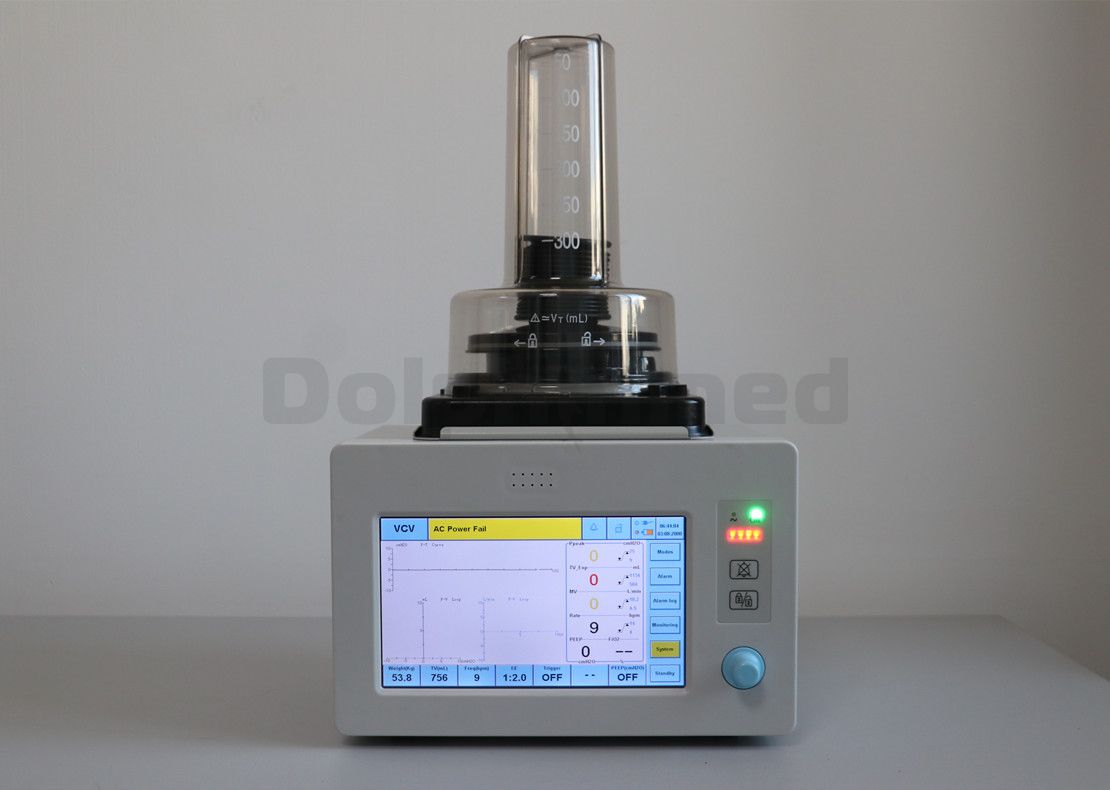

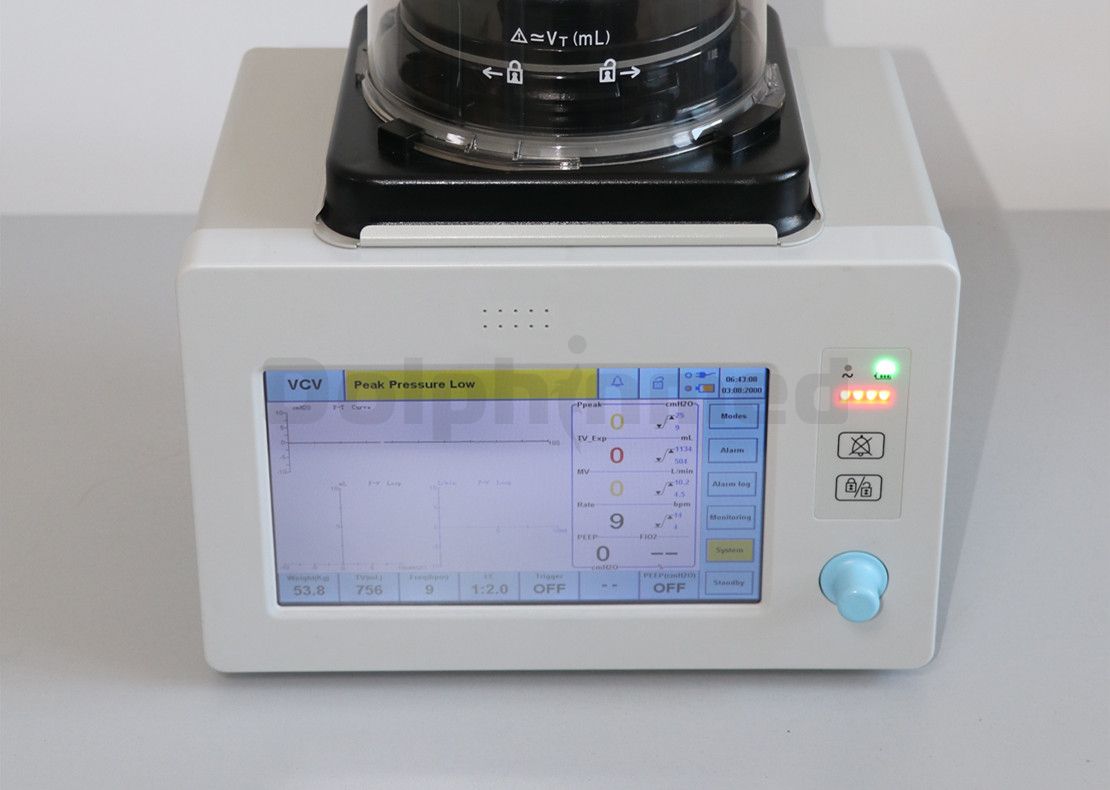

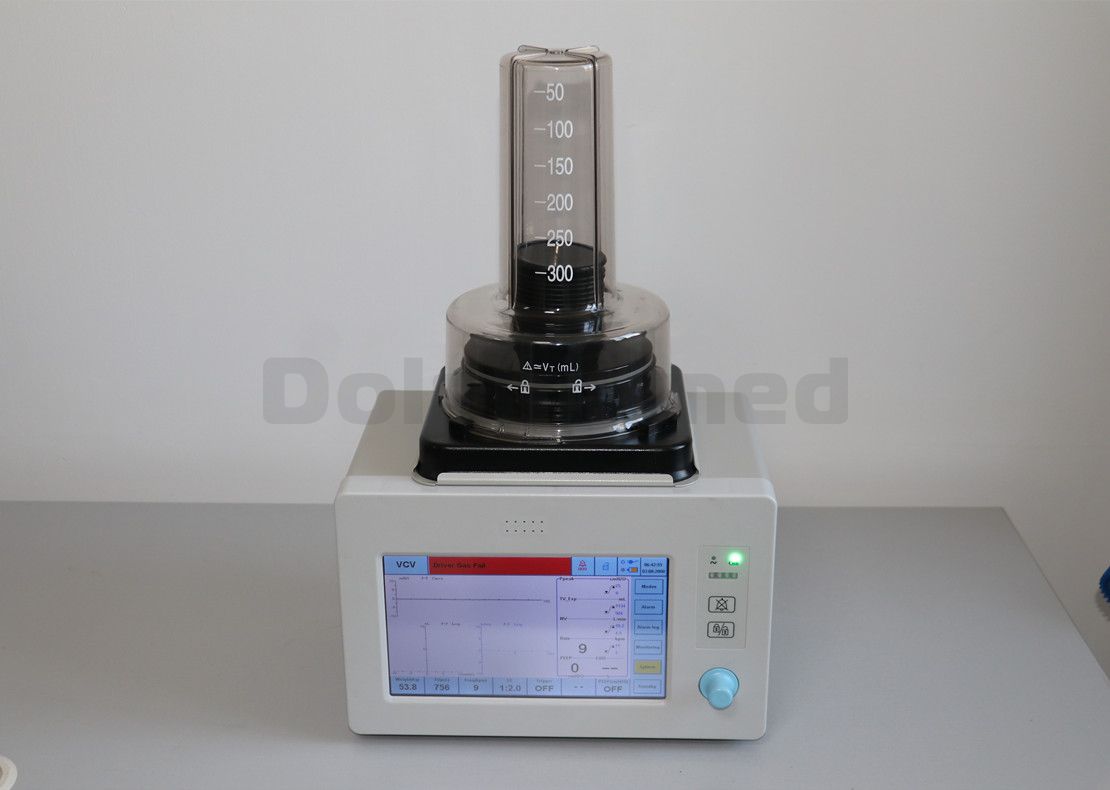

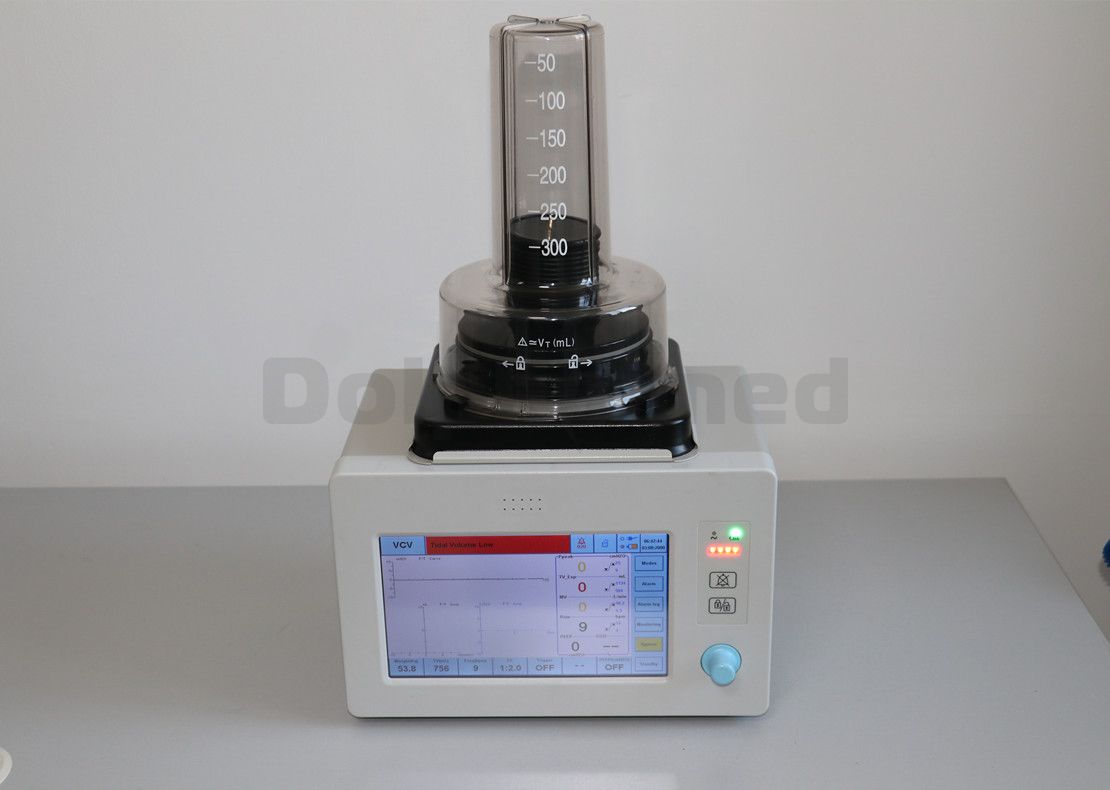

Vet anesthesia ventilator(Model:DAV80VT)

Share:

Dolphinmed has made a major breakthrough in the field of veterinary respiration, and independently developed a turbine-driven veterinary anesthesia ventilator, which does not require oxygen and saves air source and space

Products description
 Feature:
  • 1.Turbine drive design,no gas source required,save space and gas source cost

  • 2.Light and easy to move,save animal hospital cost

  • 3.Only set the weight,other parameter are calculate automatically

  • 4.With Electric PEEP to adjust expiration end pressure

  • 5.With breathing mode VCV,PCV etc,meet different clinical requirement

  • 6.With Spont Mode,auto ventilation while animal have no spontaneous breathing

  • 7.With apena alarm and apena time adjustable

  • 8.With Proximal respiratory flow monitoringzmore accurate

  • 9.With big animal bellow and small animal bellow,specially for animal use

  • 10.The gas source hose take the high precious gas source^o leakage forever

  • 11.HD TFT Touch screen,perfect technology,touch at key to Set parameter,very easy and simple to operate

  • 12.Build in battery could continue more than two hours in case of power failure Matching with different brand veterinary anesthesia machine

  Technical Parameters
Working modeAuto-control,Manual
Ventilation modeVCV,PCV,Spont,Manual, Demo
Bellow0-300ml, 300-1600ml
Driving modePneumatically and electrically
Screen9 inch touch screen
MonitorTidal volume,breathing rate, l:E,peak pressure
Tidal volume20ml/min-1500ml/min

Ventilation parameterSetting range
Tidal volume (TV)20-1500ml
Breathing rate ( Freq)l-150bpm
Spontaneous breathing rate (Freq Spont)0-150bpm
l:E9.9:1-1:9 adjustable
Hold time0-50%
Flow trigger sensitivity (F-Tring)0.5-20L/min,OFF
Pressure Trigger Sensitivity (P-Tring)-l-20cmH2OOFF
End-expiratory pressure3-20cmH2O,OFF
SIMV frequency (Fre-SIMV)2-60bpm
Inspiratory time (T-lnsp)0.1-12S
Pressure support (PS)0-60cmH20
Inspiratory pressure (T-Insp)0-60cmH20
Minute Ventilation (MV)Display range 0-99L/min
Use range 0-25L/min
Spontaneous minute ventilation (MV_Spont)Display range 0-99L/min
Use range 0-25L/min
Peak pressure (Ppeak)0-80cmH20
Platform pressure (Pplat)0-80cmH20
Mean pressure (Pmean)0-80cmH20
Inhaled oxygen concentration (FiO2)15-100%
End-expiratory pressure(PEEP)0-20cmH20
Driving gas pressure (Press Drive)0-900kpa
Paw-T waveformPressure monitoring range:
0-120cmH20: X-axis: 0-10s
Flow-T waveformY-axis:-1800-180L/min X-axis: 0-10s
V-T waveformY-axis:0-2000L/min X-axis: 0-10s

Alarm parameterSetting range
Pressure upper limit0-60cmH20
Pressure lower limit0-60cmH20
Tidal volume upper limit0-1500ml
Tidal volume lower limit0-1500ml
Ventilation volume upper limit0-40L/min
Ventilation volume lower limit0-40L/min
Oxygen concentration upper limit15-100%
Oxygen concentration lower limit15-100%
PEEP upper limit0-25cmH20
PEEP lower limit0-20cmH20
Breathing rate upper limitl-150bpm
Breathing rate lower limitl-150bpm
Apena time3-20s
Gas source pessure lowLess than 280kpa
