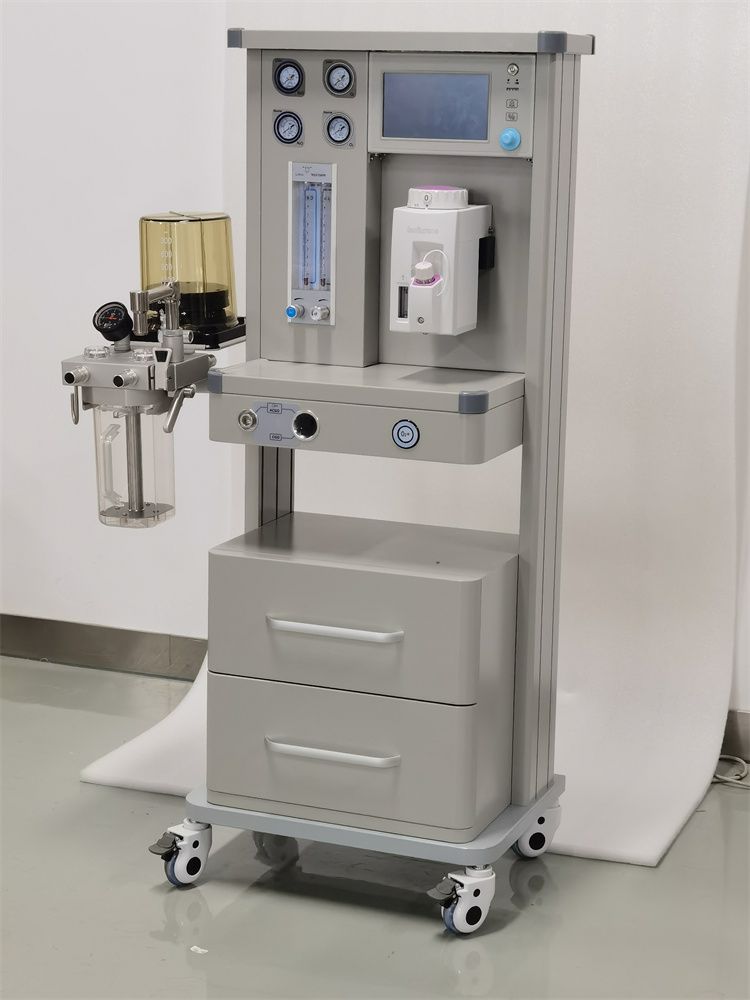

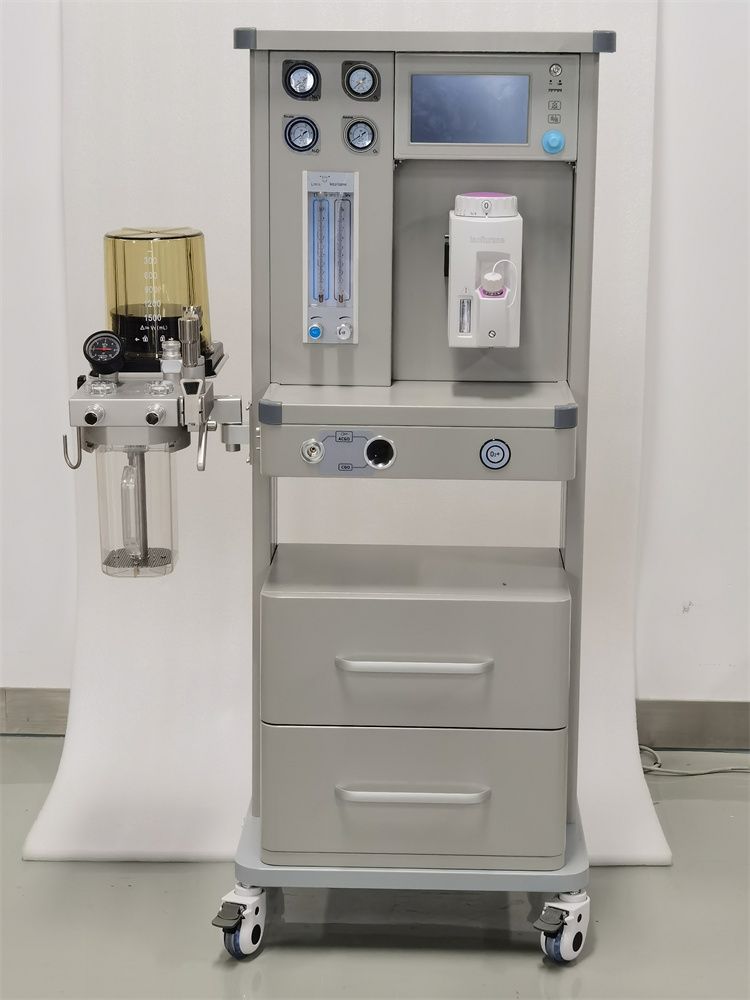

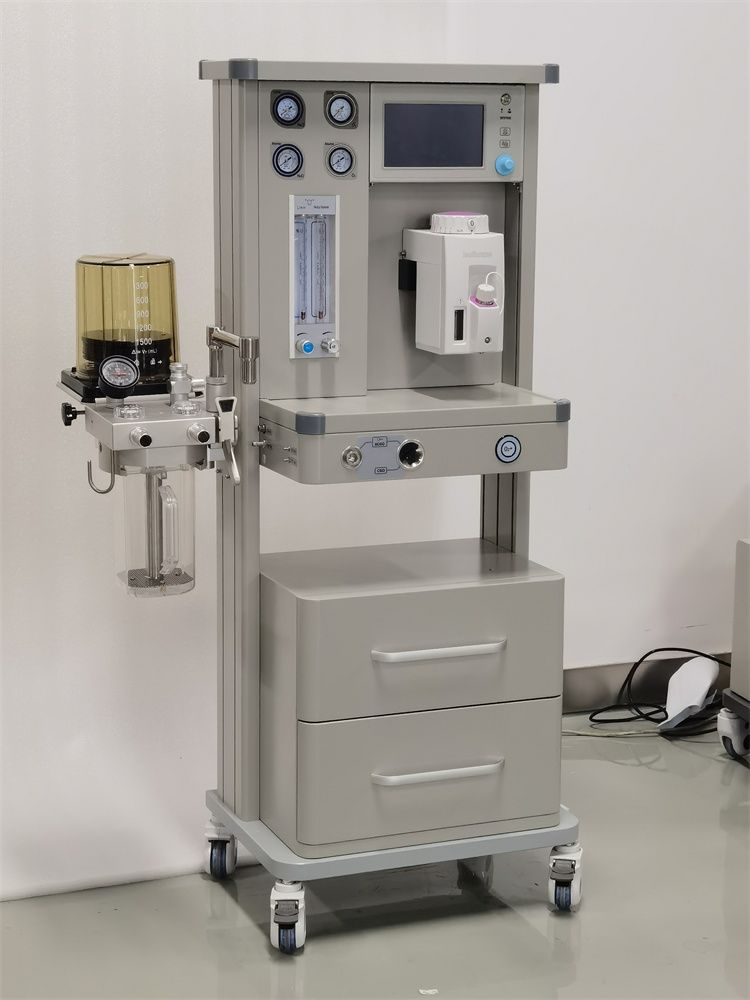

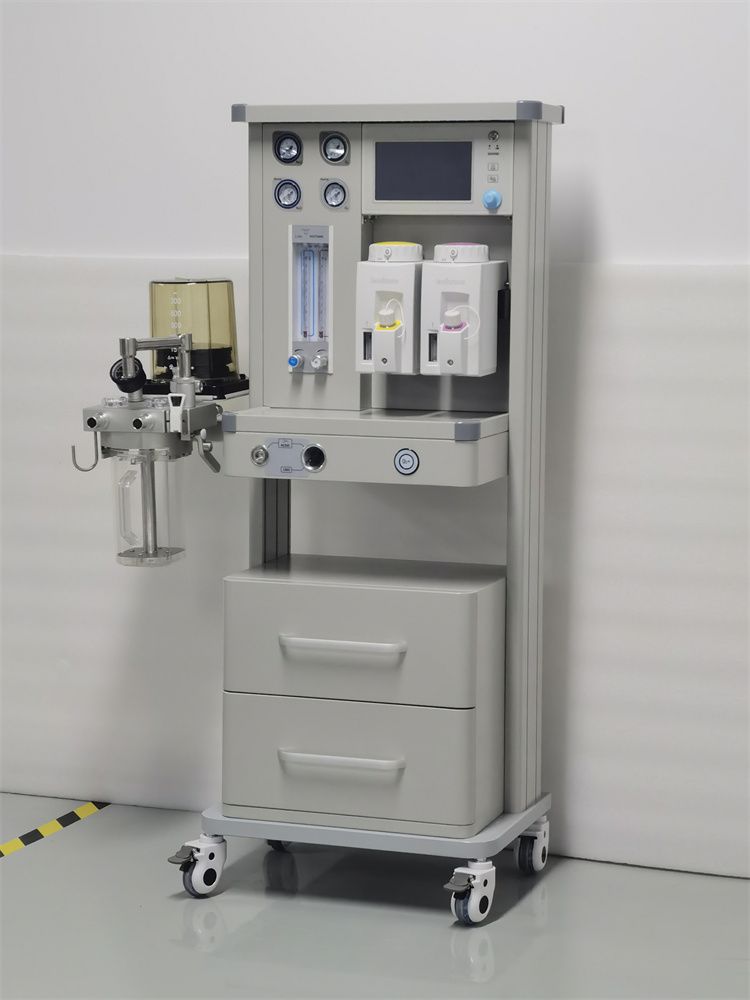

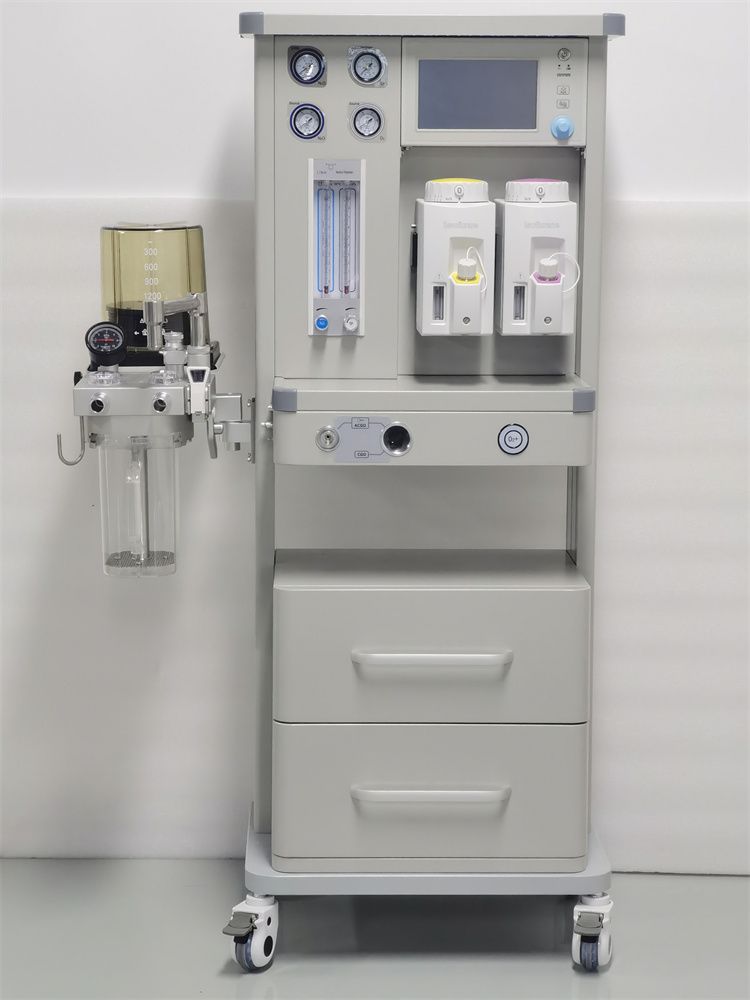

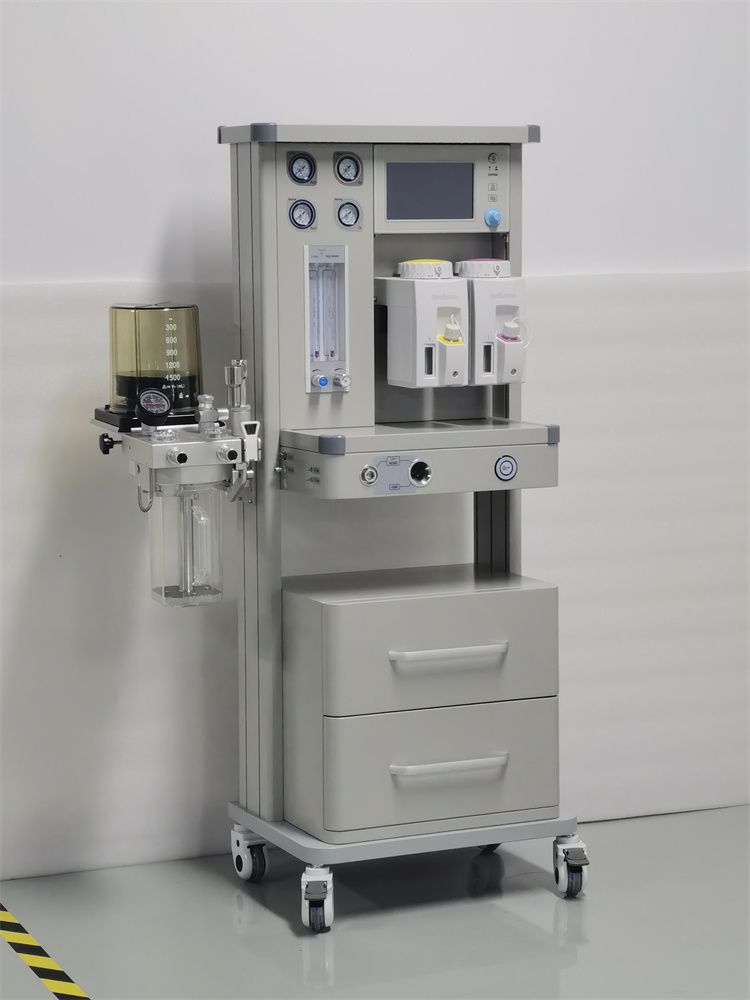

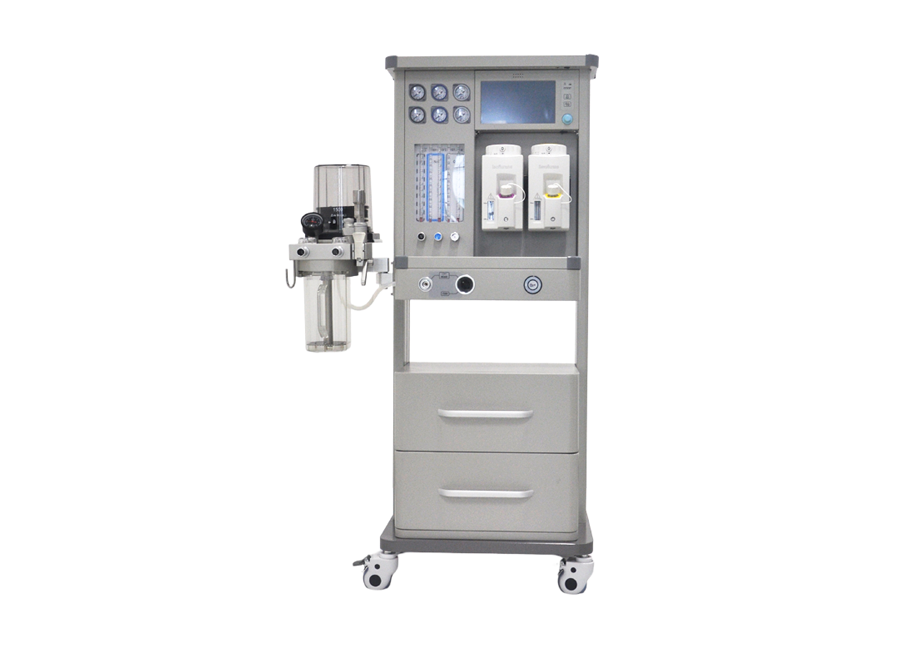

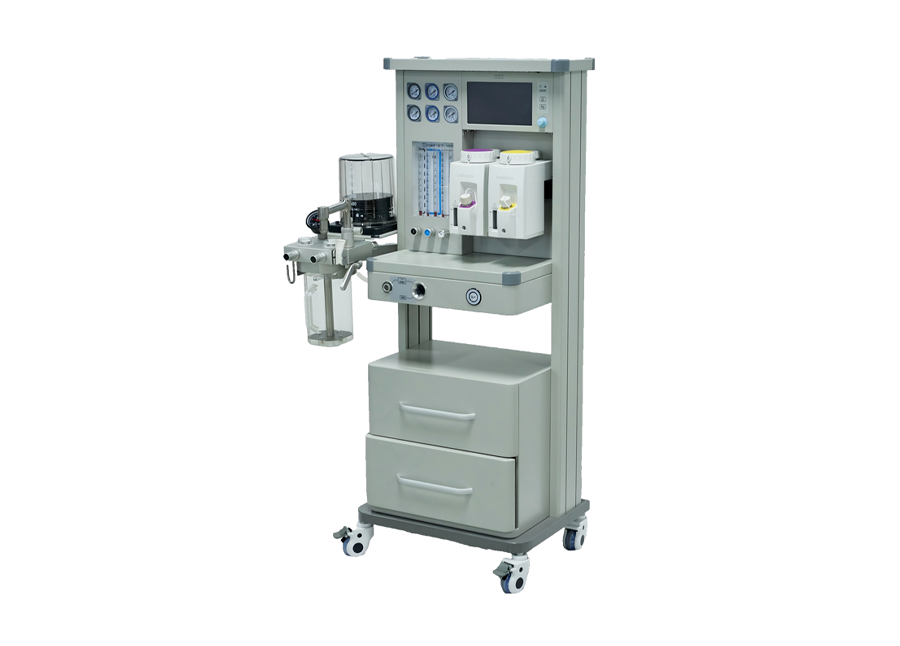

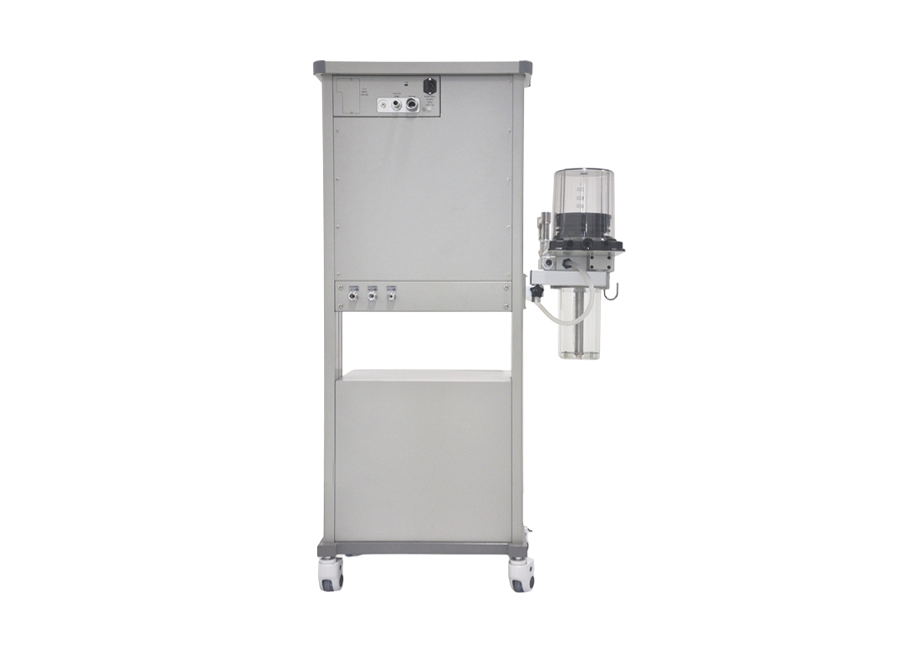

Anesthesia Machine (Model：DA2000)

Feature：

● More convenient operating and display systems for clinical operations,suitable for a wide range of anesthesia at adult，pediatric

● Comprehensive Safety&Alarm system，make sure the operation accuracy and stability

● 8 inch TFT display with touch screen，shuttle knob design, quick and efficient operation

● Integrated absorber design with good cable management solution,convenient to discharge and install timely..

● Powerful ventilation mode meet all complex clinical requirement

● Three levels alarm system, visual and sound alarm information.

● The core components are imported from top international and original, and the industrial control chip is chosen

● High precious sensor and valve technology make sure the pressure ,flow and volume monitor and control at high safety, stability and precision

● High precious anesthesia vaporizer with temperature,flow and pressure compensation

● Top-light system design provide more good vision

● Built-in backup battery provide the emergency power supply to the unit.

● Low O2  pressure alarm and N2O cut-off protection.

Technical Specifications

Display:8 " TFT, with touch screen.

Working Mode：Closed,Semi-closed,，semi-open system，Open

Ventilation Mode: VCV,PCV,SIMV-VC,SIMV-PC,PSV,Manual/SPONT.

Optional: SIMV-PRVC, PRVC

Waveform: Pressure, Flow-rate, Volume

Loop: PV loop, PF loop, FV loop

Safety Pressure: Does not exceed 6 KPa.

Battery Type: Li-ion, work time more than 2 hours

Parameter Setting Range:

Tidal Volume:Range: 20 - 1500ml;

Respiratory rate: 1~100 bpm;

Inspiratory time: 0.1 ~ 10.0 s;

Respiratory ratio: 9.9:1 to 1:9.9;

Percentage of inspiratory pause: 0 to 50%;

PEEP: OFF, 3 ~ 20 cmH2O

Pressure Support: 0 ~ 60 cmH2O

Pressure Control: 5 ~ 60 cmH2O

Flow trigger: 0.5 ~ 20L/min

Pressure Trigger:  -1 ~ -20 cmH2O

PSV Insp Termination Level: 25%

Monitoring Parameter

Inspiratory tidal volume,Expiratory tidal volume,Minute ventilation,Spontaneous minute ventilation,Respiratory rate,Spontaneous breathing frequency,Respiratory ratio,Peak airway pressure,

Mean airway pressure,PEEP,Inspiratory plateau pressure,FiO2(optional)

Alarm Setting:

Tidal volume: High 0 ~ 2000 mL, OFF; Low 0 ~ 1500 mL

Minute ventilation: High 1 ~ 99 L; Low 0 ~ 98 L

Respiratory rate: High 1 ~ 100bpm; Low 0 ~ 99 bpm

FiO2(optional): High 19 ~ 100%; Low 18 ~ 99%

Airway pressure: High 6 ~ 99 cmH2O, ; Low 0 ~ 9 8 cmH2O

FiCO2 (optional): High 0.1 to 13.3%; Low 0 to 13.2%

Continuous Positive Airway Pressure: Greater than (PEEP +15) cmH2O,

15 s sustained when an alarm is triggered.

Negative pressure alarm:Airway pressure is less than (-10) cmH 2 O.

Apnea alarm: Setting time is 10 ~ 60 s

Gas deficiency alarm: less than 280 kPa.

AC power failure alarm: The mains breaks down or the power cord disconnects

Low battery alarm: Time is 20 min.

Alarm battery is exhausted: time is 10 min.

Silent Alarm: ≤ 120 s

O2 sensor failure: FIO2 <15% Vol;

Driving gas: O2 or Air,Inlet pressure, 280-600 kPa.Max flow ≤ 120 L / min.

Anesthesia Vaporizer: Dvapo200plus  Selectatec  bar  mounting type

CO2 Absorber: Twins canister,2 L volume for sadalime,wth no-return respiration valve and inspiraition valve,avoid gas back flowing.

Flow meter: O2,N2O TWO TUBES FLOWMETE

1*O2 tubes: 0-1L/min, 1-10L/min ; 1*N2O tubes: 0-1L/min, 1-10L/min

Mechanical flowmeter O2,N2O and air （Optioanl）

N2O will be auto cut when O2 supply failure

O2 and N2O linkage device, keep O2 not low than 25%

Bellow: Adult bellow（300-1800ml）and pediatric bellow（0-300ml）.

Gauge: Two gas supply pressure gaugage ( O2,N2O )

Three gas working prssure gauage (O2,N2O and air)（optioanal）

One gas airway pressure gauge

Gas supply pressure: 0.27-0.55Mpa

O2 Flush: 25-75LPM

Gas switch: Control gas source with starting or stopping

Optional:

Yoke system: Pin index O2 and N2O Yokes System,

backup gas will auto working when central gas supply fail

AGSS: (Anesthesia Gas Scavenging System)

ETCO2: End-Tidal Carbon Dioxide
