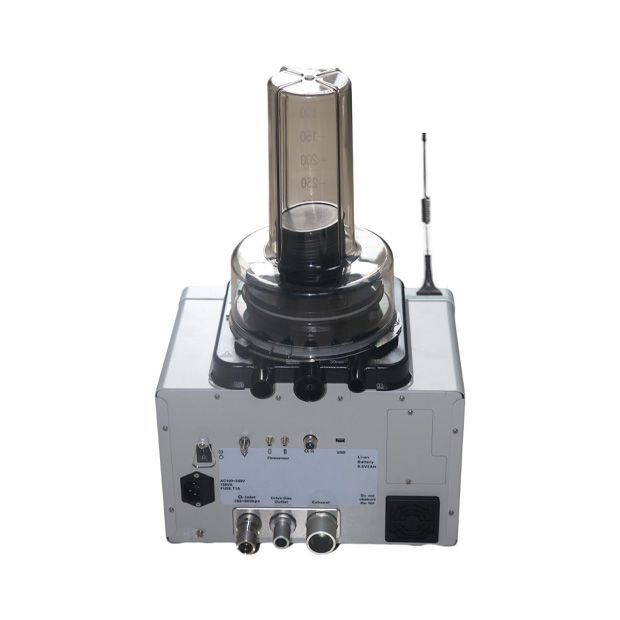

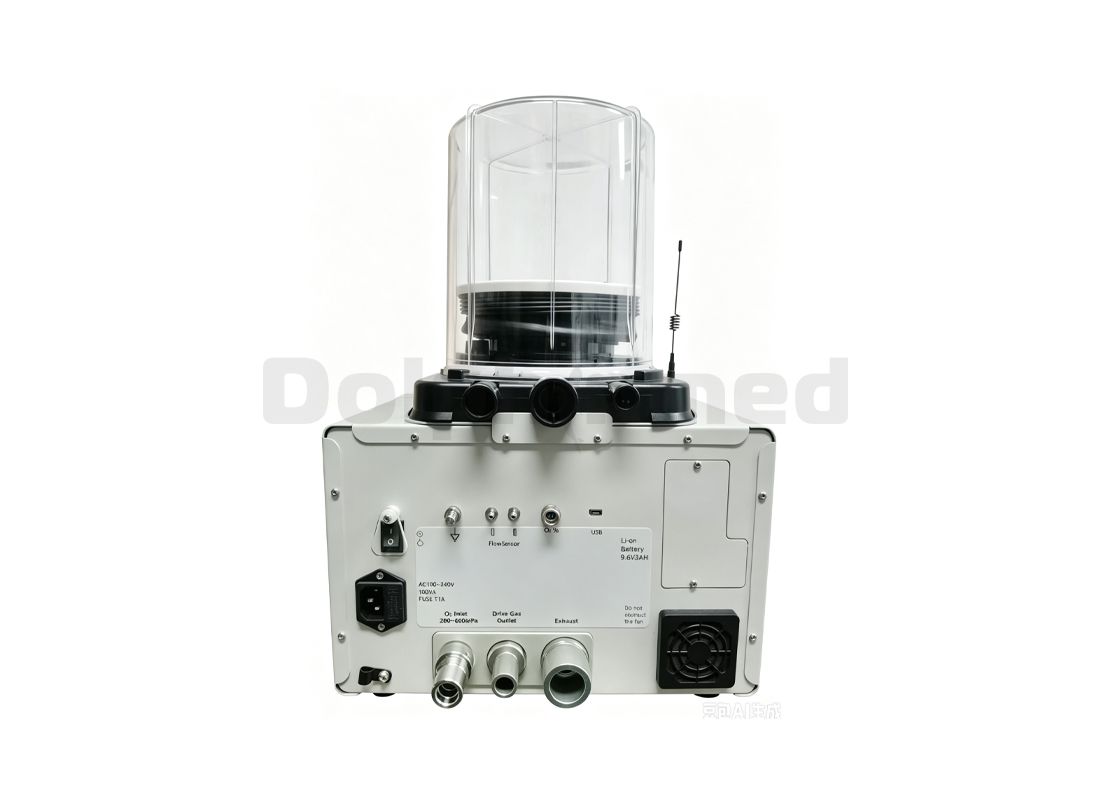

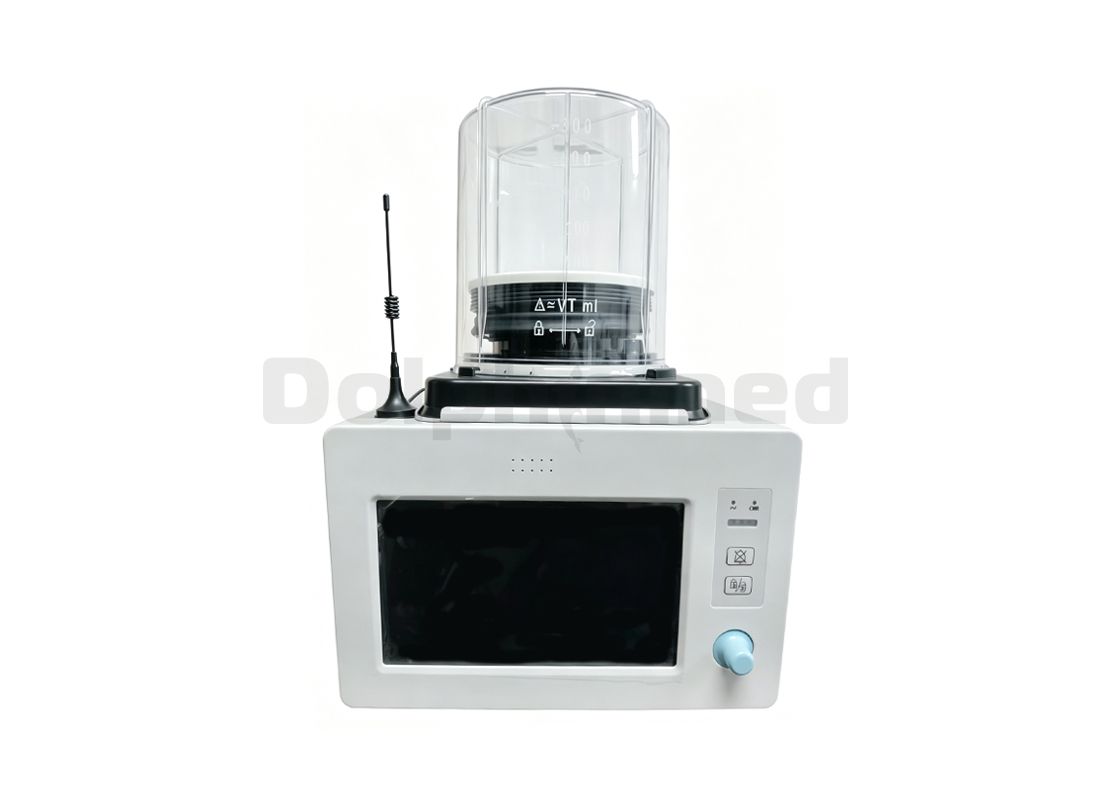

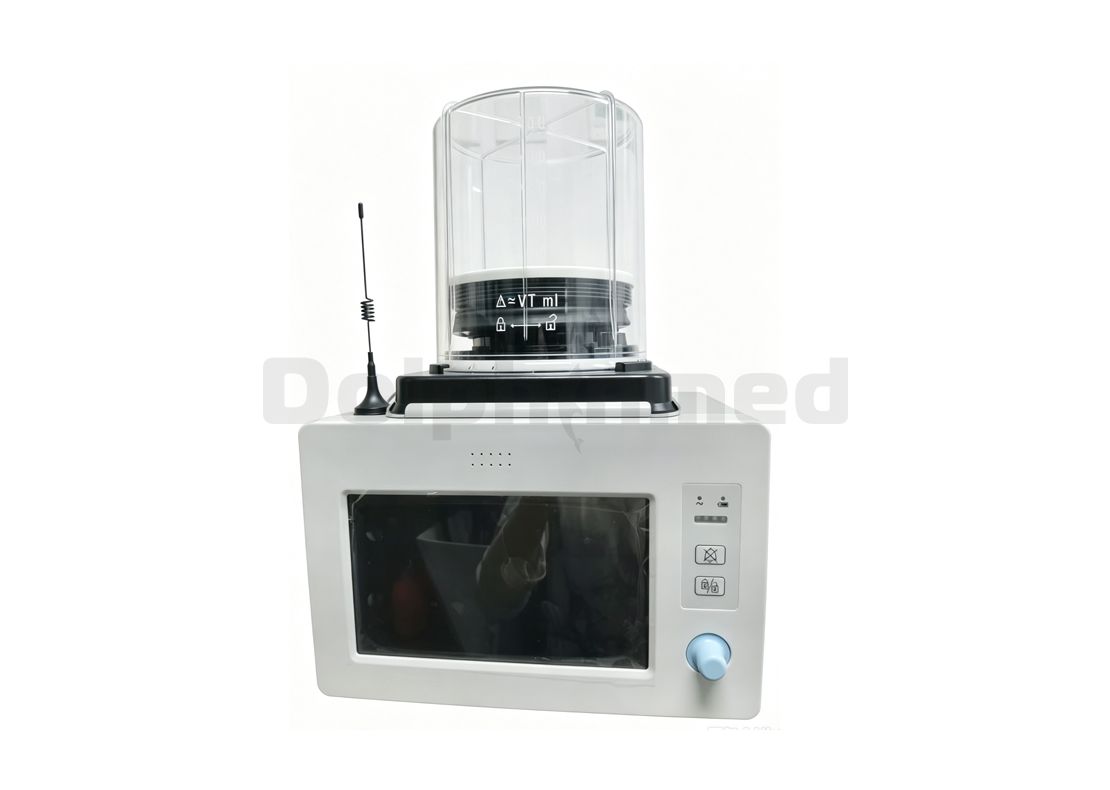

CT Turbine Veterinary Anesthesia Ventilator DAV80CT

DAV80VT is ergonomically designed,turbine-driven,with zero oxygen consumption,acompact design,and space-saving features.It is suitable for various complex surgical scenari-os and is widely used in CT rooms,pet hospitals,animal clinics,research institutions,animallaboratories,livestock schools,wildlife rescue facilities,school laboratories,training institu-tions,agricultural appraisal stations,and more.

Inquire Now Next Product

Products description

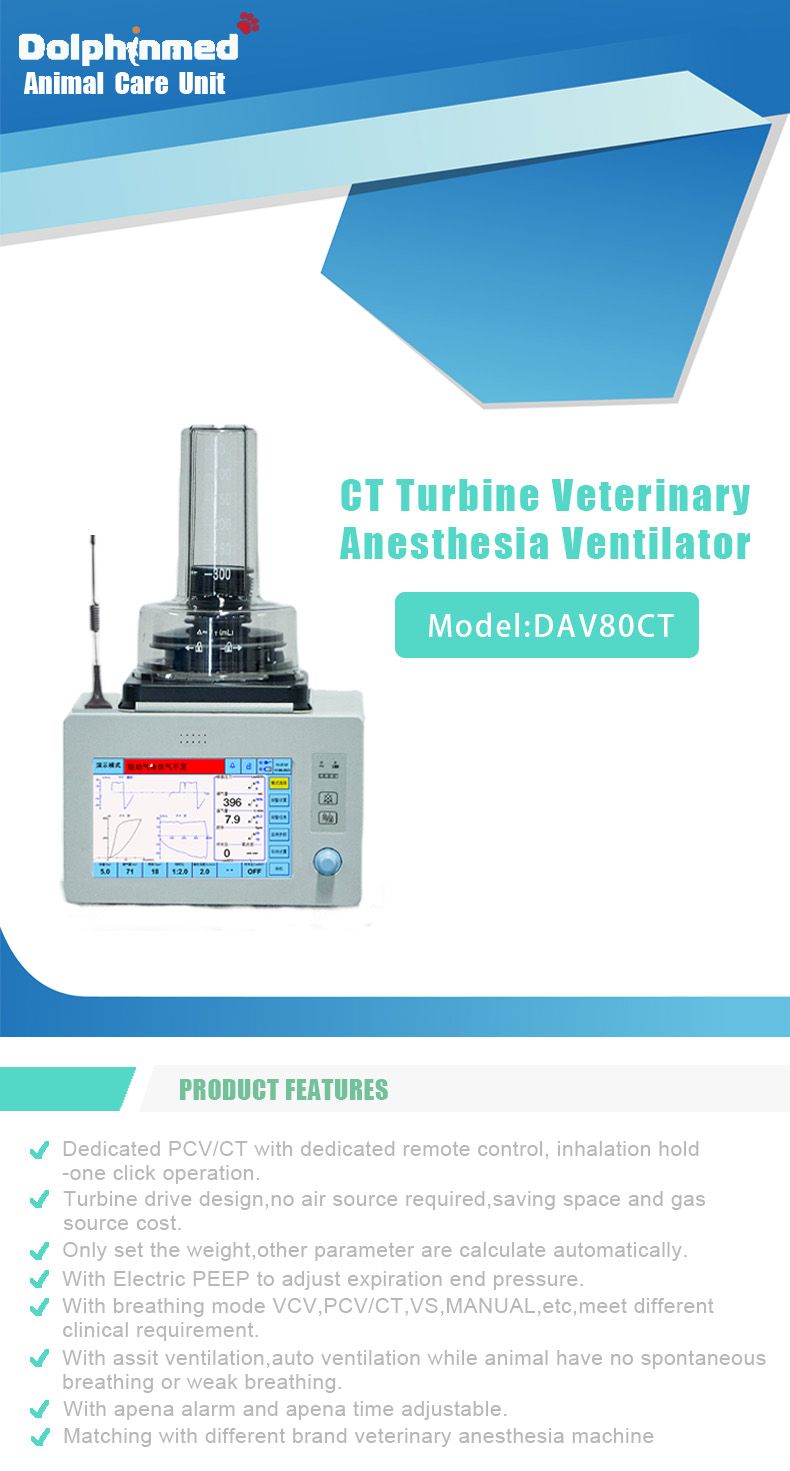

Feature：

•Dedicated PCV/CT with dedicated remote control, inhalation hold-one click operation.

•Turbine drive design,no air source required,saving space and gas source cost.

•With intelligent spontaneous mode to avoid breathing confrontation.

•Light and easy to move,save animal hospital cost.

•Only set the weight,other parameter are calculate automatically.

•With Electric PEEP to adjust expiration end pressure.

•With breathing mode VCV,PCV/CT,VS,MANUAL,etc, meet different clinical requirement.

•With assit ventilation,auto ventilation while animal have no spontaneous breathing or weak breathing.

•With apena alarm and apena time adjustable.

•With Proximal respiratory flow monitoring,more accurate.

•With big animal bellow and small animal bellow,specially for animal use.

•The gas source hose take the high precious gas source,no leakage forever.

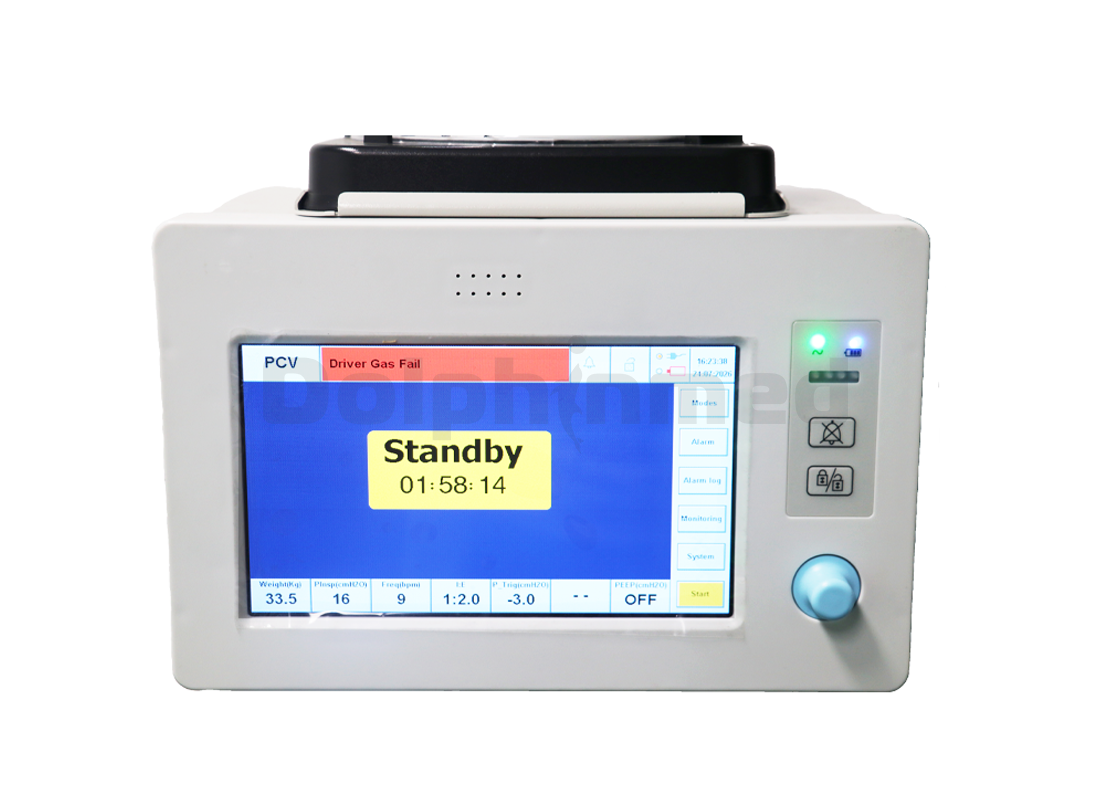

•HD TFT Touch screen,perfect technology,touch at key to Set parameter,very easy and simple to operate.

•Matching with different brand veterinary anesthesia machine.

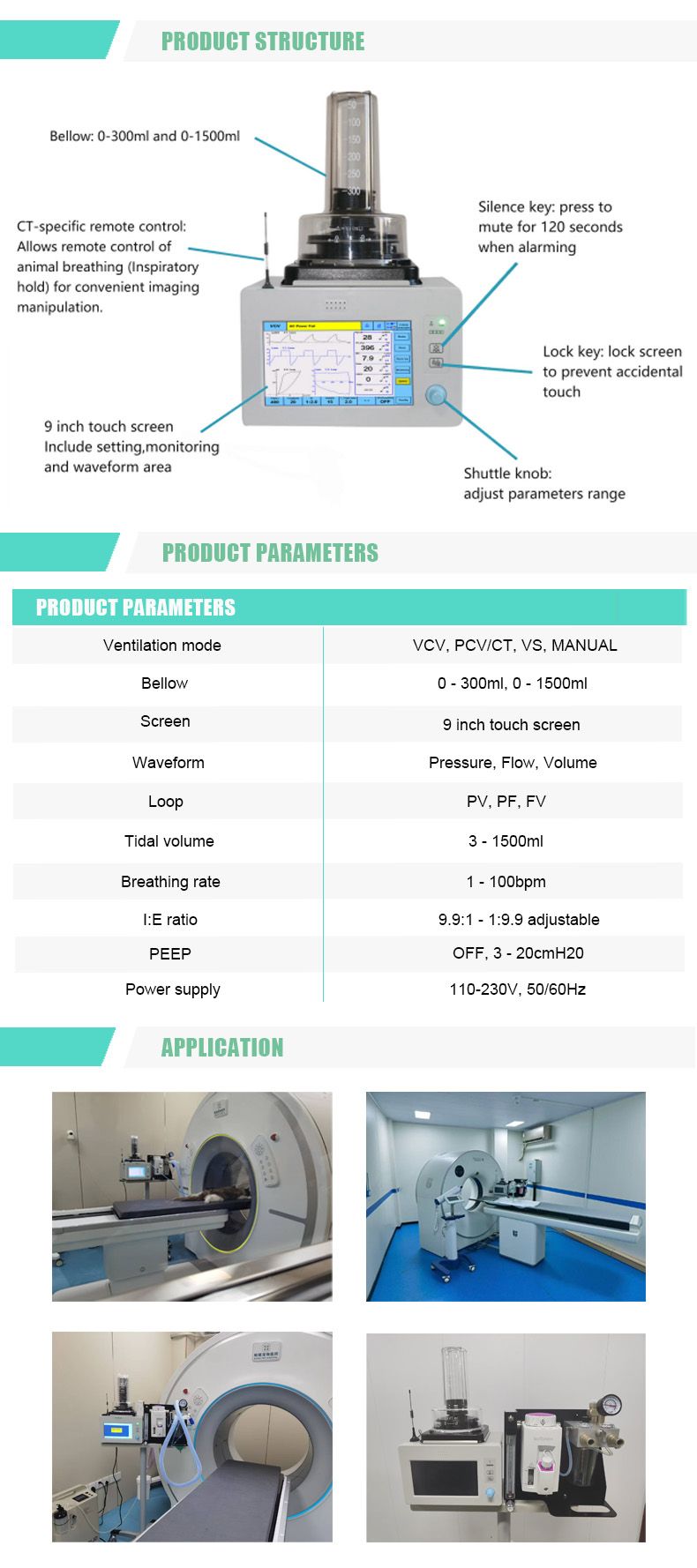

Parameter：

Ventilation mode: VCV, PCV/CT, VS, MANUAL

Bellow: 0-300ml, 0-1500ml

Screen: 9 inch touch screen

Waveform: Pressure, Flow, Volume

Loop: PV, PF, FV

Tidal volume: 3-1500ml

Breathing rate: 1-100bpm

I:E ratio: 9.9:1-1:9.9 adjustable

PEEP: OFF, 3-20cmH20

Monitor: Tidal volume, breathing rate, spontaneous breathing rate, I:E, spontaneous minuteventilation, minute

01111ventilation peak airway pressure, average airway pressure, PEEP, inspiratory platform pressure, FIO2.

Alarm parameters: Tidal volume, minute ventilation volume, breathing rate, airway pressure, continuous airway

pressure, negative pressure alarm, apnea alarm. supply pressure failure alarm, power supply alarm, low battery

alarm, battery empty alarm, oxygen battery failurealarm. FIO2(optional), FICO2(optional)

Main unit, CT sets, bellow cover 300ML&1500ML, folded bag 300ML&1500ML, flow sensor, silicone connecting pipe,

power cable.
