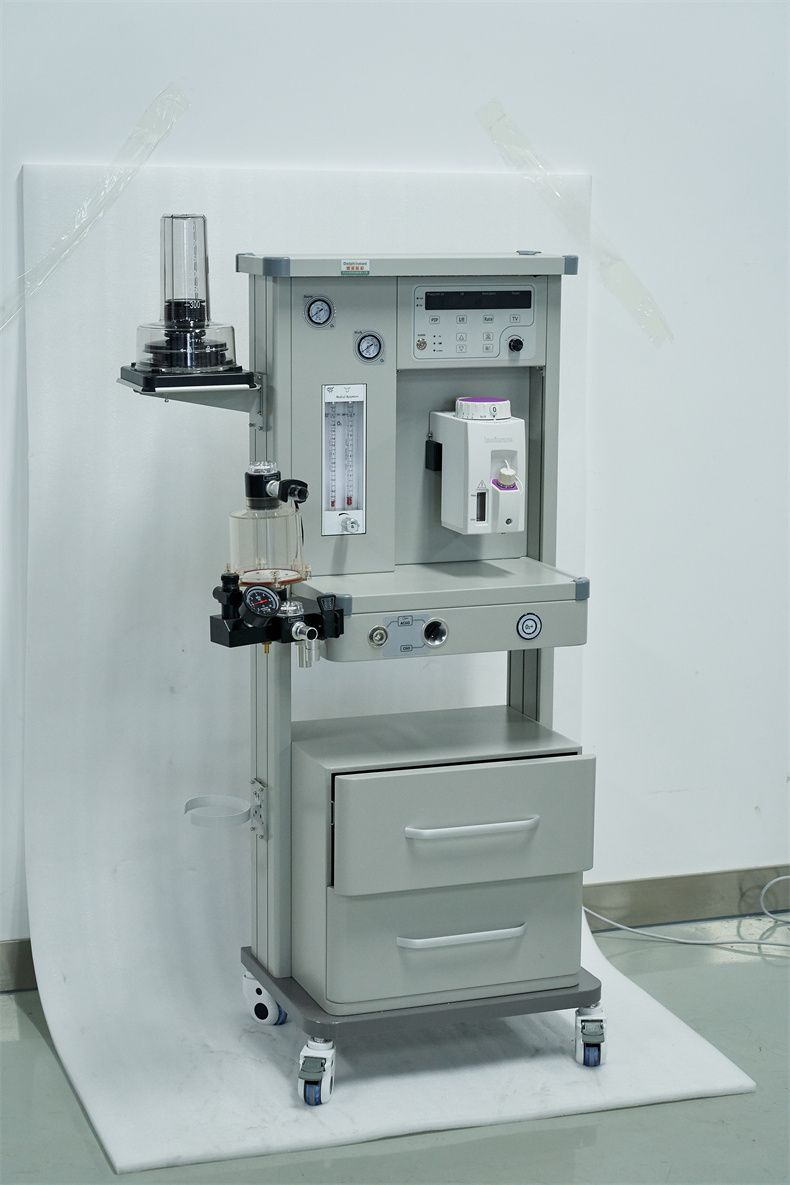

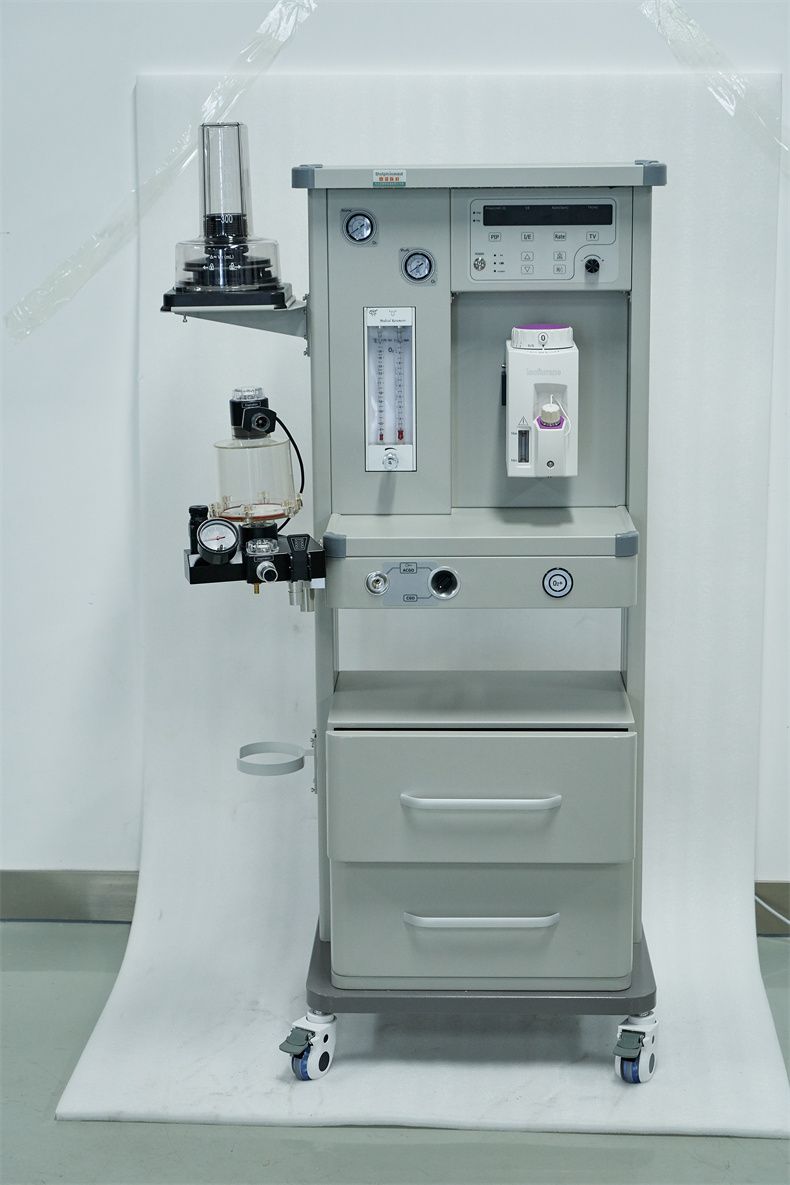

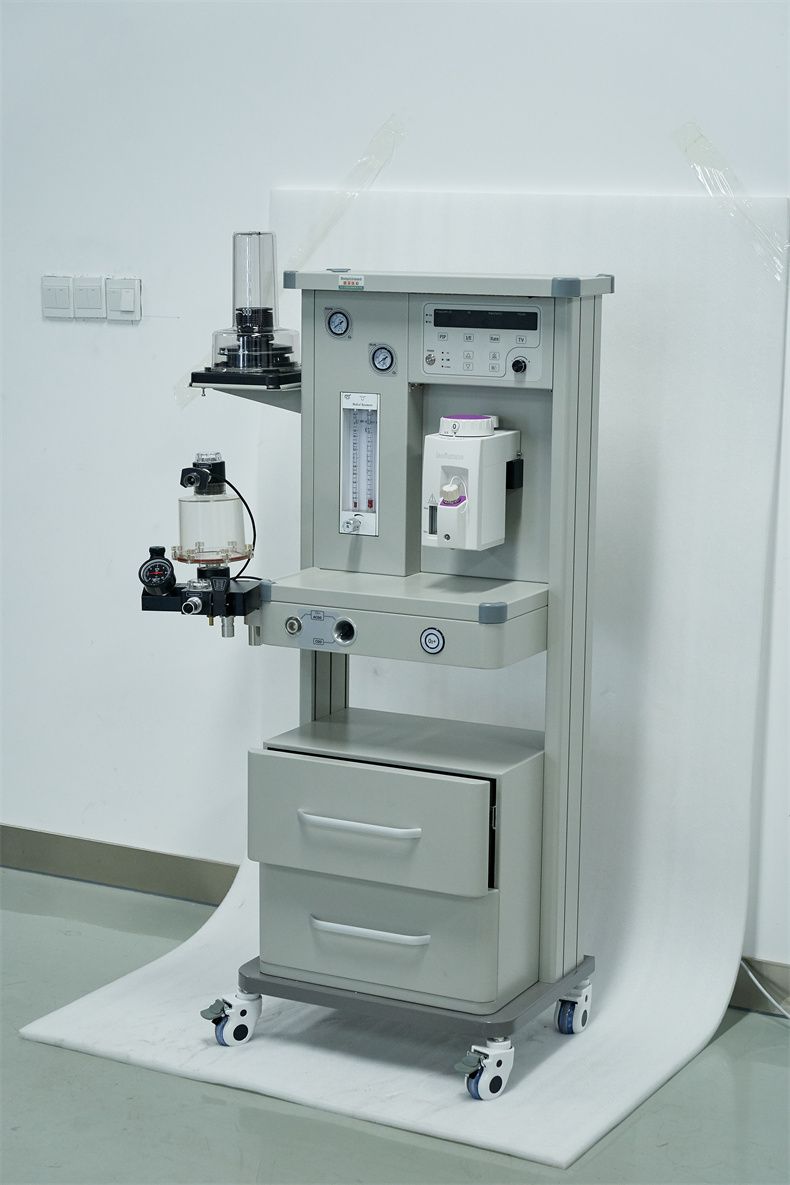

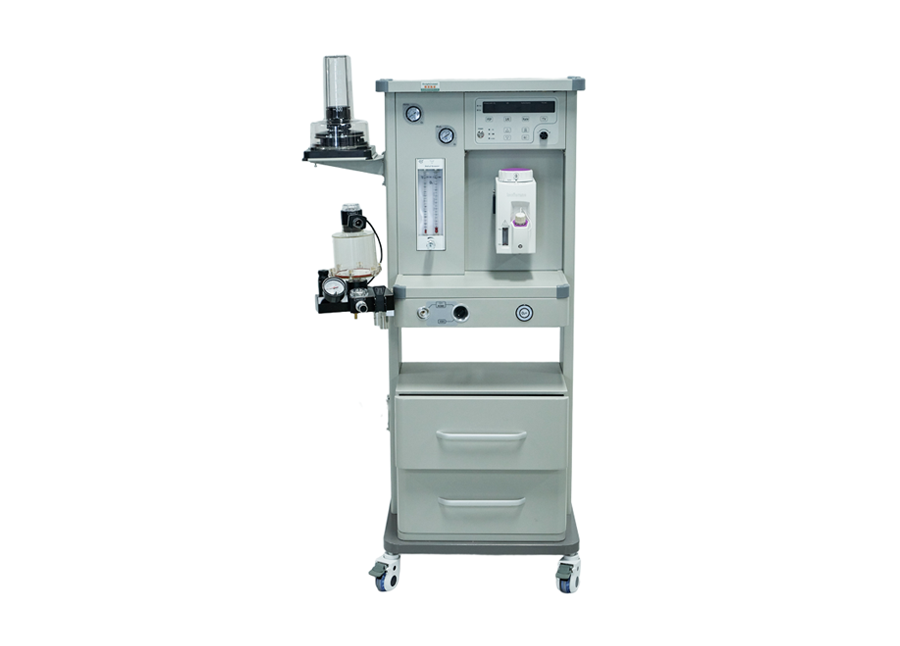

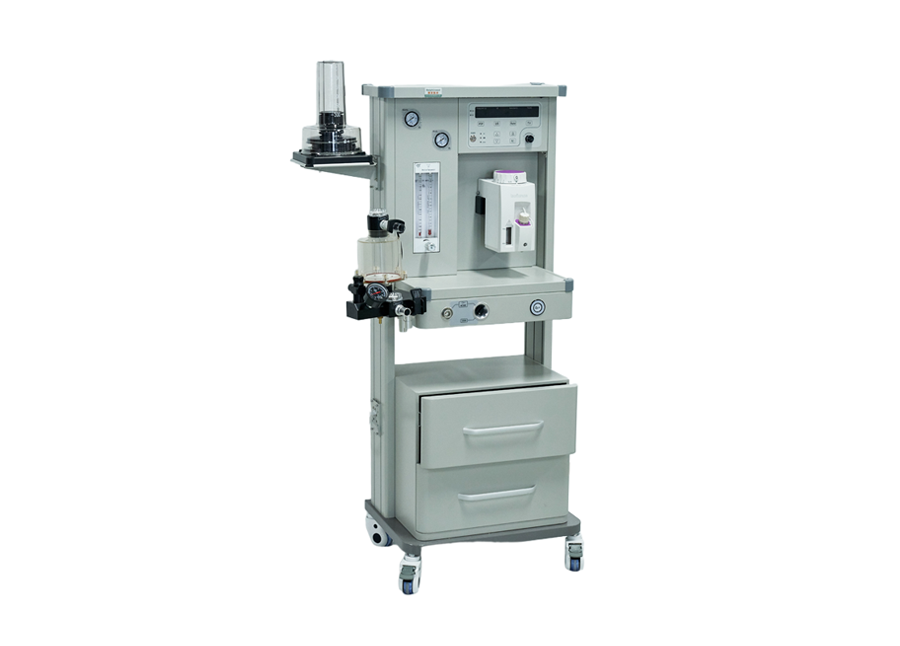

Veterinary Anesthesia Machine (Model:DA1000vet)
DOLPHINMED delivery advanced anesthesia system with ventilator based hightechnology and safe&stable feature to protect patient,it is suitable for a range ofanesthsia at adult&pediatric in the operation of the differnet type hopsital.
Feature：
● Space saving compact design
● Build-in battery，can continue working in case of power failure
● Anesthesia Gas source switch design,keep operation at high efficient
● Top-light system
● Alloy frame, humanized handle, easily and conveniently move the machine to any place.
● Equipped with high precise Anesthesia Vaporizer.（Support Single or two vaporizer)
● Adopting stainless pressure gauge, both gas supply and working pressure could be monitored. The pressure range is 0-1MPa, reading scale is 0.05
● With special protection device for Power Socket and Standby Power Socket, so as to avoid any accidents;
● Audible O2.failure warning device

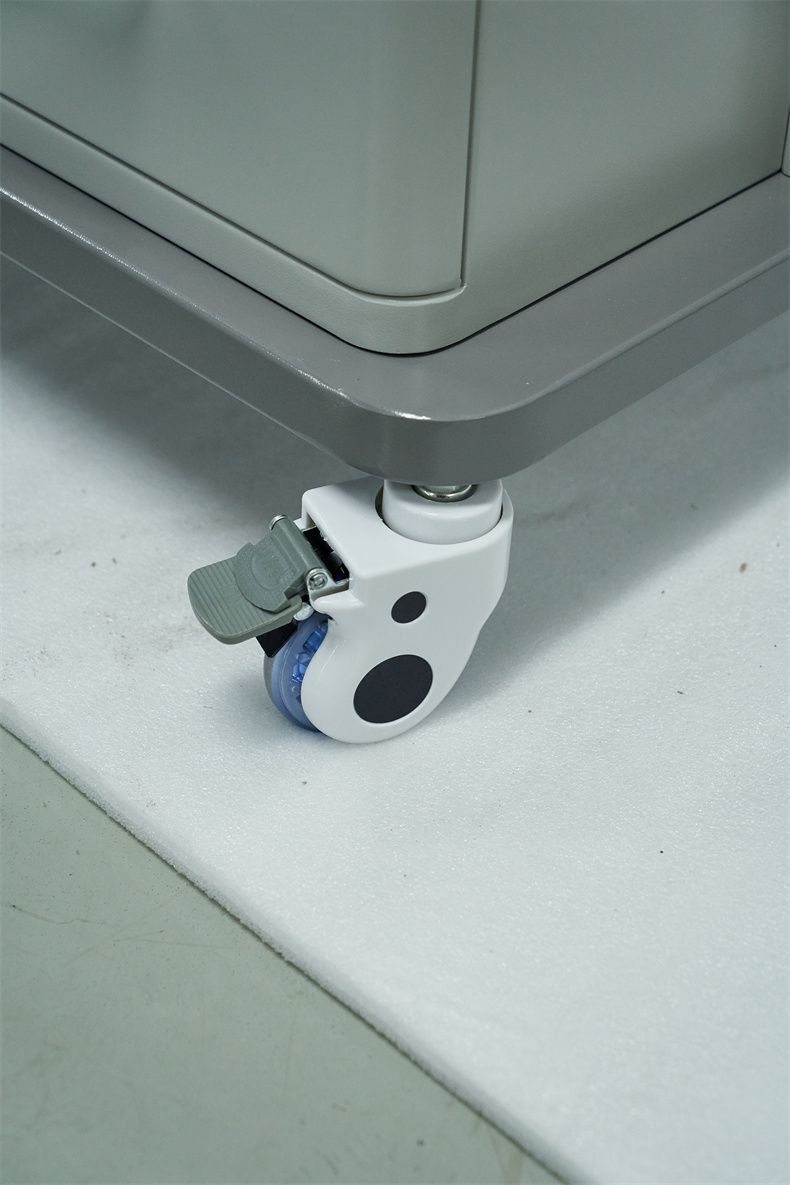

● Four Anti-static castors(2 with brakes)
● 2 large drawers with big storage space（support three drawer optional）
● Electronic-pneumatic ventilator
● Common gas outlet（CGO)
● Ergonomics design to meet the animal clinical requirements,suit for lab .animal hospital and scientific institute etc.
● Small animal special bellow design
Main Unit：
Working Mode：Closed,Semi-closed,，semi-open system，Open
Driven mode: Pneumatically driven manual controlled
Application: 0.5-100kg animal
Anesthesia gas source switch:start or stop the gas source control
Pressure Gas Gauge: four press gauge; one is oxygen source pressure; one is oxygen working
Alarm parameter: Upper tidal volume alarm, low oxygen alarm, Apnea, Power failure
High precious anesthesia vaporizer, the agent output is continuous and stable, and precise. the agent type: Isoflurane, halothane, sevoflurane.
Oxygen flush: 25L/min~75L/min
Airway pressure: O2:0.25Mpa~0.65Mpa
Power: 220V±10%, 50HZ±1% or 110V±10%, 60HZ±1%

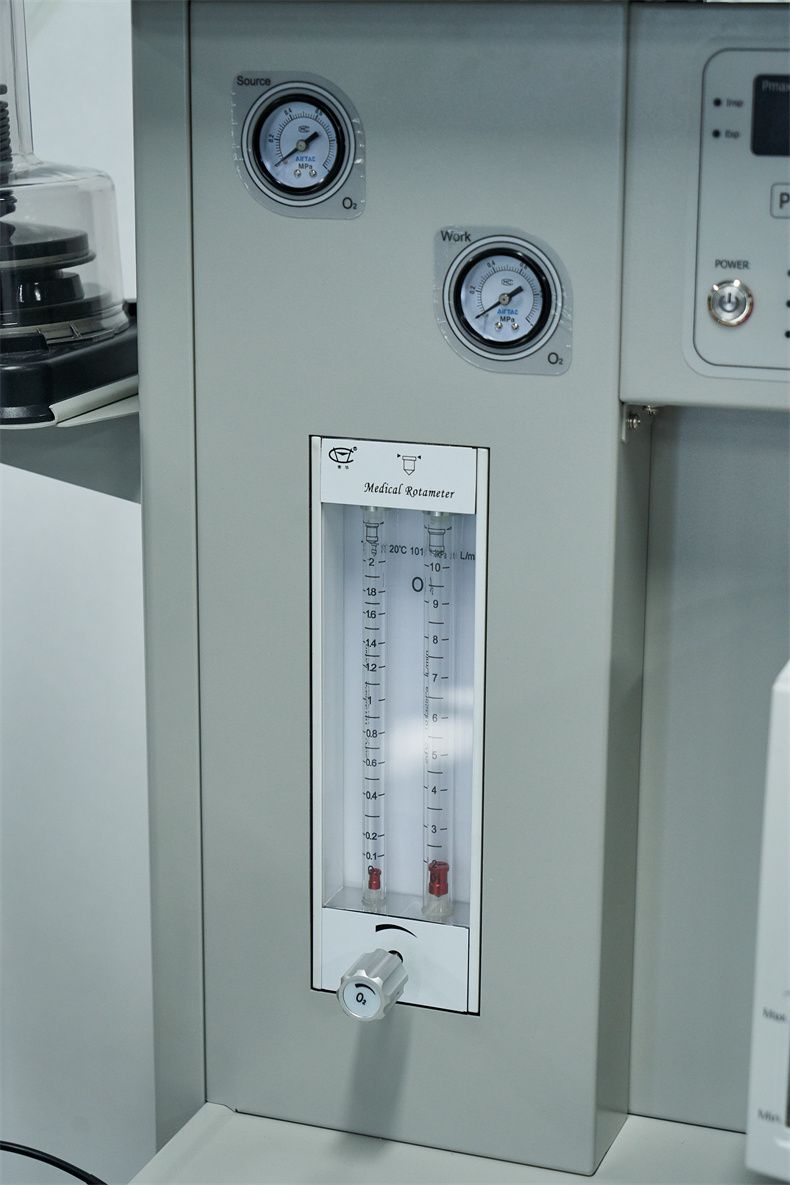

Flow meter：
O2 Two tube flowmeter
Two tube: 0~1L/min, 1~10L/min
O2 & Air Flowmeter Optional
O2&N2O& Air Flowmeter Optional

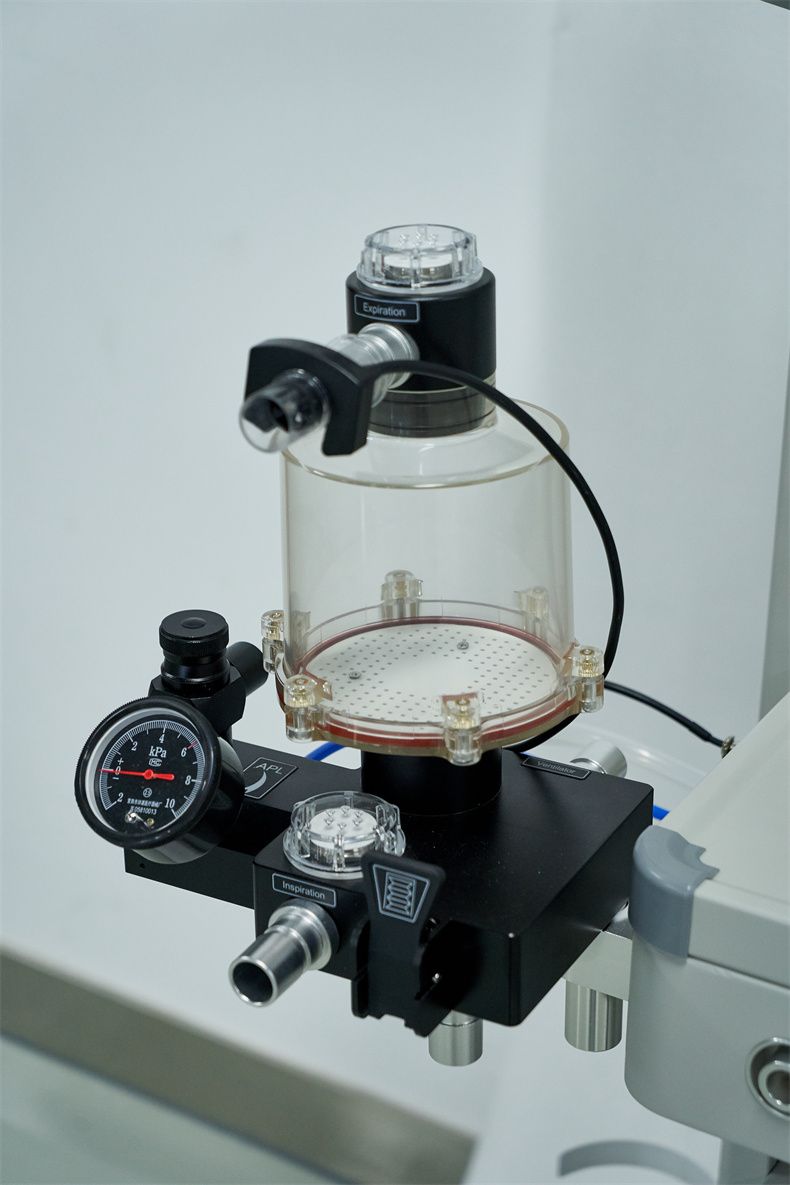

Circle Absorber:
Integrated and sterilized at 134°C high temperature and high pressure.
Visiable inspiration valve and expiration valve
Safety valve pressure limit: 6Kpa
Quick change soda lime system
Good air tightness, high reliability and minor respiratory impedance
Manual/ventilation switch
Anesthesia Ventilator

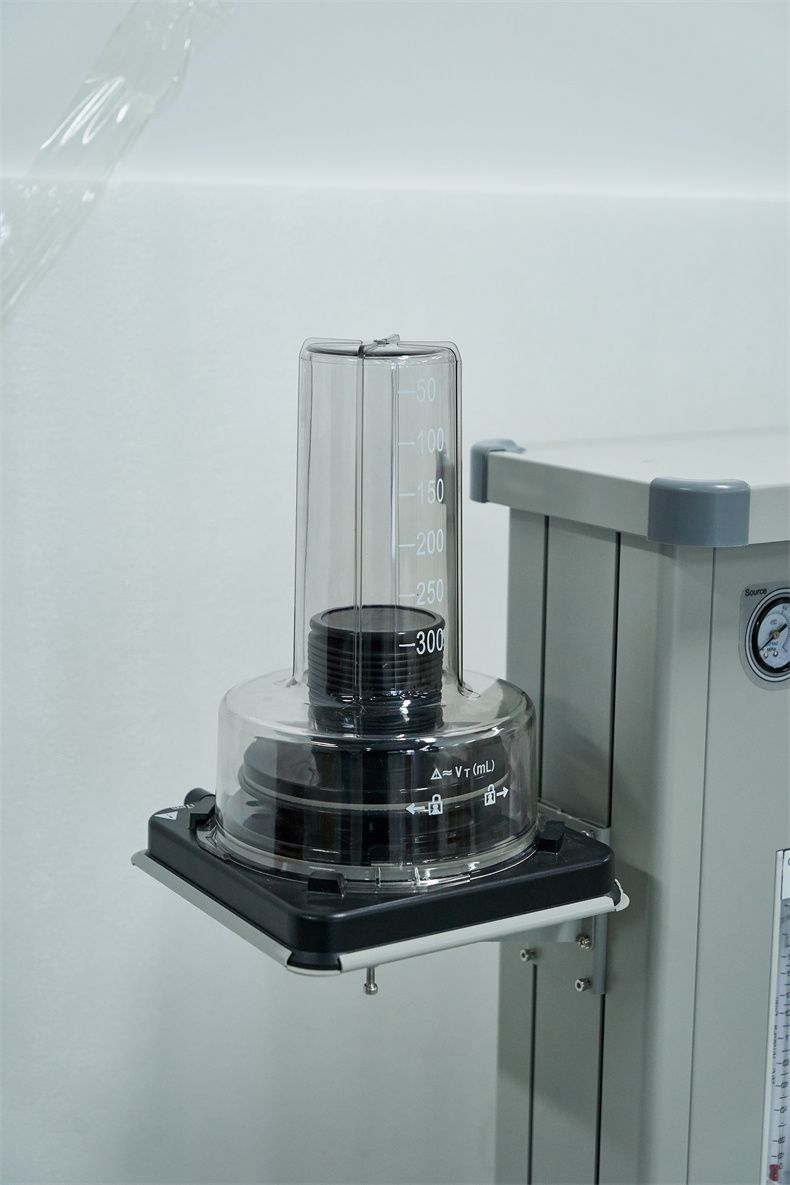

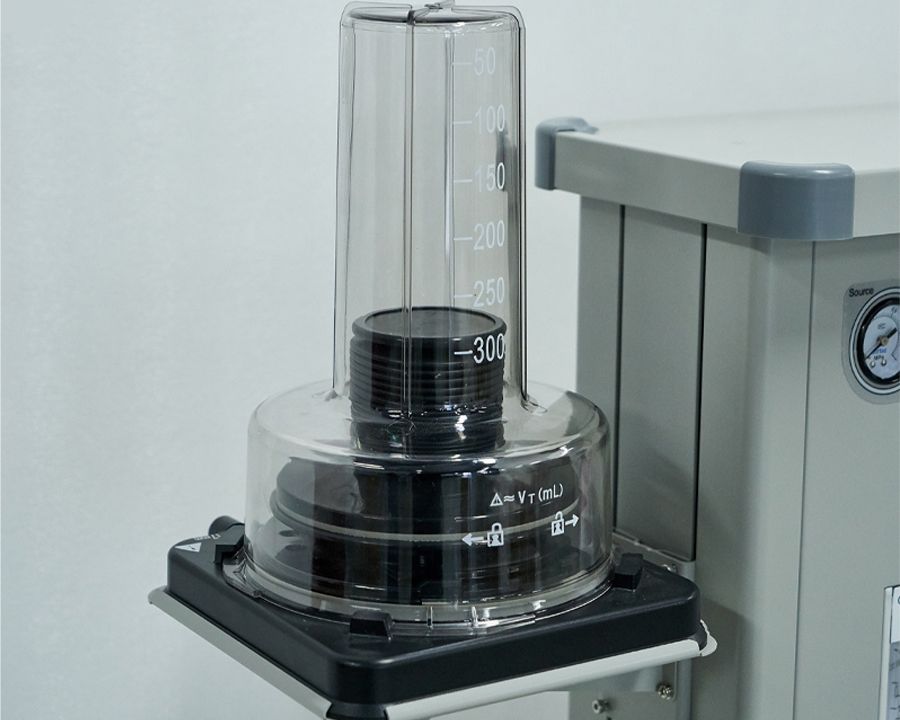

Small animal bellow design(0-300ml)
(300-2000ml)optional
Pneumatically driven and electrically controlled
Display: HD LCD digital display
Monitoring: Tidal volume, breathing rate, I:E ratio, Peak airway pressure,
TV: 50~1600ml
Breathing rate: 4~60bpm
I:E ration: 1:1~1:4 adjustable
Upper airway pressure: 2~6kpa
Lower airway pressure: 0.6~2kpa
Battery low alarm
Battery no power indicator
Alarm Silence
Manuel/Auto Switch

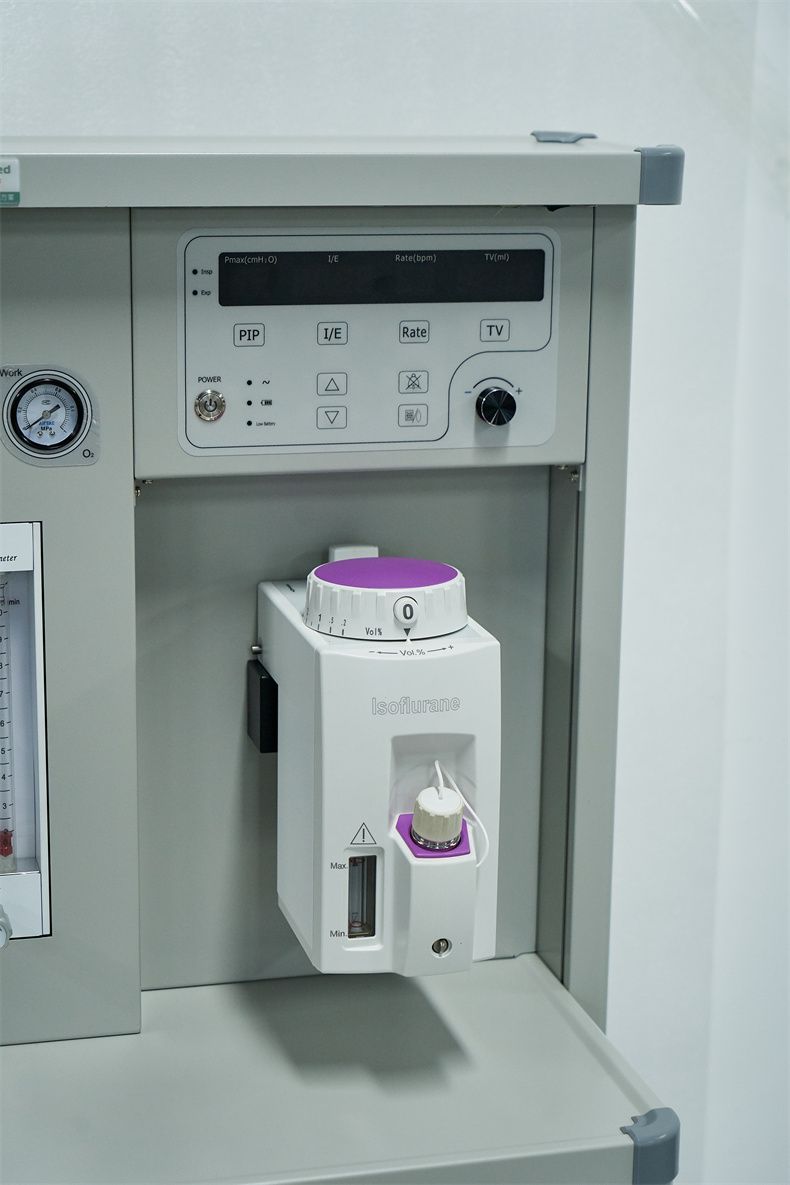

Vaporizer:
Iso, Sevo, Halo
With safety lock device
Concentration range:
Iso 0.2 to 5% Halo 0.2 to 5% Sevo 0.2 to 8%
Flow range: 0.2 to 15L/min
0.2 to 10L/min (normal usage) for concentrations>5 vol%
Filling volume for agent: about 340ml with dry wick
about 300 ml with moist wick
Mounting type:
selectatec compatible; Cagemout compatible(optional)
Filling type: Pour type, Easy-fill(optional), Key-fill(optional)
Optional:
AGSS system Yoke system
