Anesthesia Vaporizer (MODEL: Dvapo200plus)

Share:

Adopts well selected high precision and super clean monobloc copper alloy, processes the tested structure pieces by numerical control, processed by fine treatment, rubbing, matching, rinsing and disinfection, complied with the highest industrial processing standard---Food Grade Standard

Products description

Products description:

Dolphinmed deliver high quality anesthesia vaporizer with latest innovative design, deliver accurate concentrations under varying conditions of variable flowrate, pressure, temperature, CE certificated anesthesia vaporizer, now Dolphinmed are the biggest vaporizer producer in China, with different mounting type and filler type, could supply to different brand anesthesia machine at domestic and abroad.


Features:

Advanced temperature, flow and pressure compensation, ensuring accurate anesthetic output concentration in various complex situations
Stably deliver agent, automatic temperature-compensating. deliver accurate agent
Sophisticated delivery system, Stable, prompt, accurate
Various kinds of mounting types. Meet different anesthetic machine requirements.

h high precision and designed to comply with EU standard

The biggest vaporizer producer in China, supply to anesthesia machine manufactuer at domestic and abroad.

Adopts well selected high precision and super clean monobloc copper alloy, processes the tested structure pieces by numerical control, processed by fine treatment, rubbing, matching, rinsing and disinfection, complied with the highest industrial processing standard---Food Grade Standard

Gas filtration system adopts agglomeration copper, ensuring to supply clean gas to the patient and securing the patients safety to the maximum

The output concentration of Halothane, Enflurane and Isoflurane ranges from 0% to 5%, and Sevoflurane ranges from 0% to 8%

The internal key parts use imported materials with good air tightness. The compensation range is from15°C to 35°C for temperature and from 200ml/min to 15000ml/min for flow.

Safety lock device to prevent the anesthetic gas volatile accidentally.

The big view window is convenient to observe drug usage levels.

Ergonomics, acurancy, safety and reliability

With flow, pressure, temperature compensation

Support a solution in filler types and mounting types


Dvapo Series Anestheisa Vaporizer

The Dvapo serial anesthesia vaporizer combine the feature of ergonomics,acurancy,safety and reliability. Dvapo vaporizer with the sophisticated design, would provide a reliable and safe solution in filler types and mounting types.

With latest innovative design of delivery system, Dvapo vaporizers delivery accurate concentrations under varying conditions of variable flowrate, pressure, temperature, and so on

Dvapo vaporizer are calibrated by skilled calibrated by skilled technicians. The advanced temperature-compensative system can make the concentration delivery stably.

Dvapo vaporizer is designed sophisticated and produced strictly confirming to test standards. Dolphinmed can promise every Dvapo vaporizer apply to international standard ISO8835-4.

Dvapo vaporizer have been made by special high tech materials, which prove the vaporizer anti-corrosion from agent. Beside, with special rubber gaskets ,it can make sure agent leak-proofness and corrosion-resistant.

Dvapo vaporizer have safety locking device to prevent the anesthetic gas volatile accidentally, provide very safe anesthesia environment.

There is no need for regular maintenance to Dvapo vaporizer, we can provide the 36 months warranty and life-long free calibration service


Stability

With latest innovative design of delivery system, Dvapo vaporizers delivery accurate concentrations under varying conditions of variable flowrate, pressure, temperature, and so on


Anesthesia Vaporizer (MODEL: Dvapo200plus)

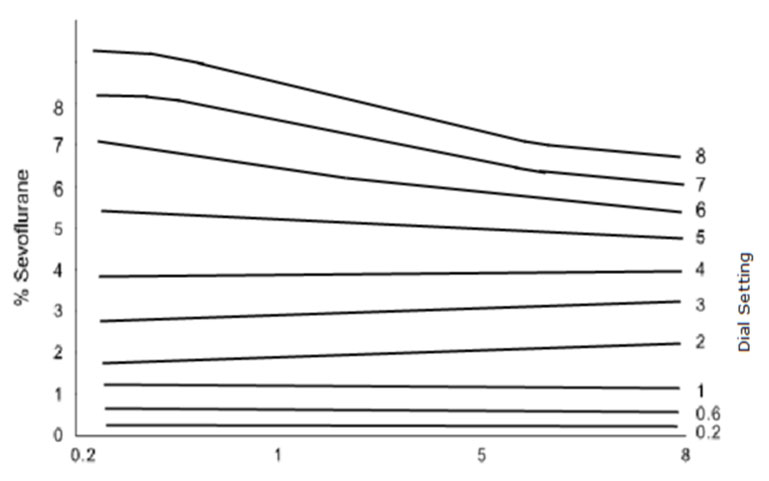

Flowrate(L/min oxygen) Flowrate influences at 20±3°C with oxygen flowing


Anesthesia Vaporizer (MODEL: Dvapo200plus)

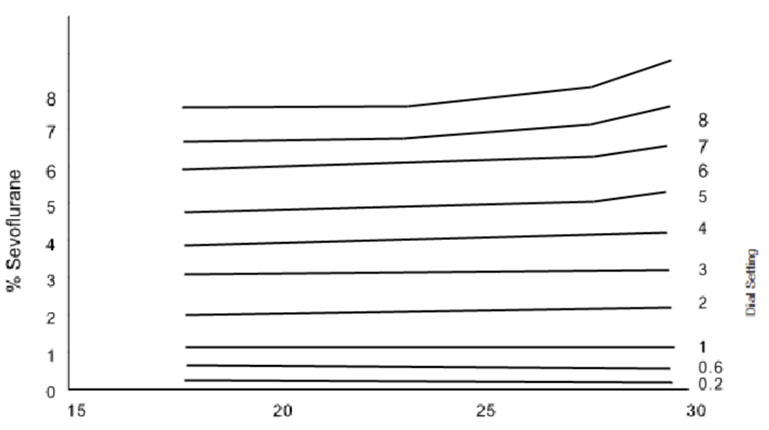

Temperature°C Temperature influences 5L/min with oxygen flow


Diversity

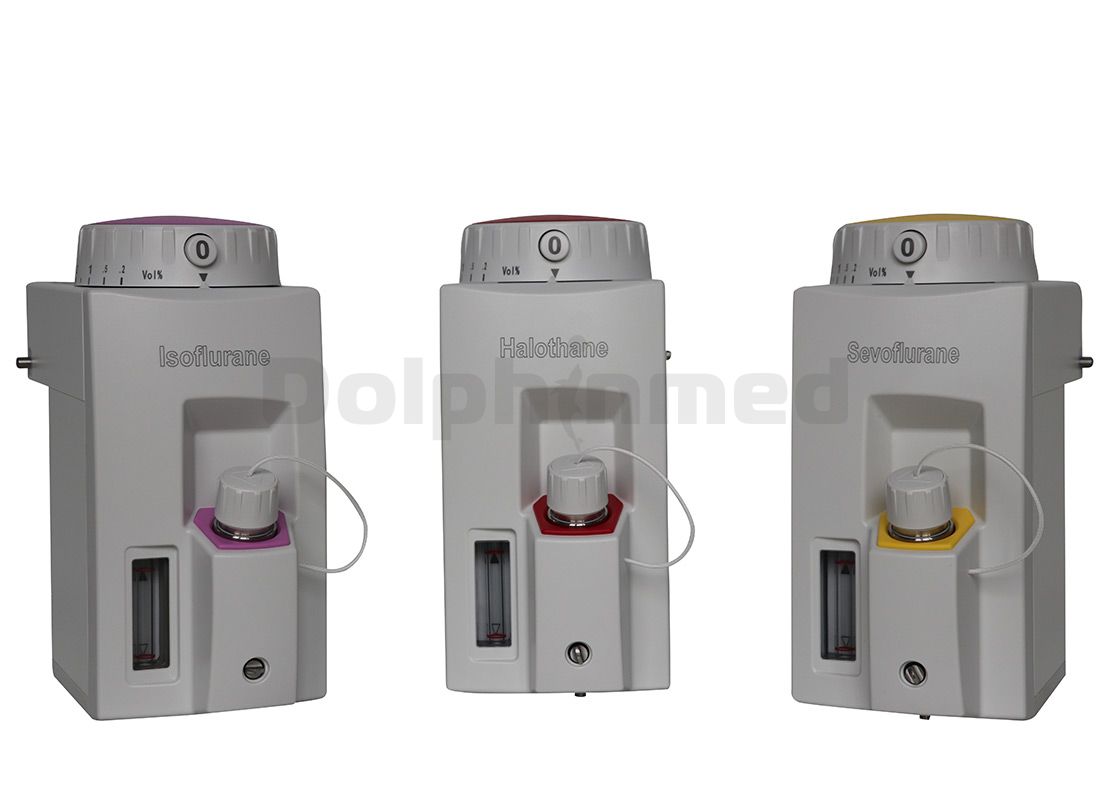

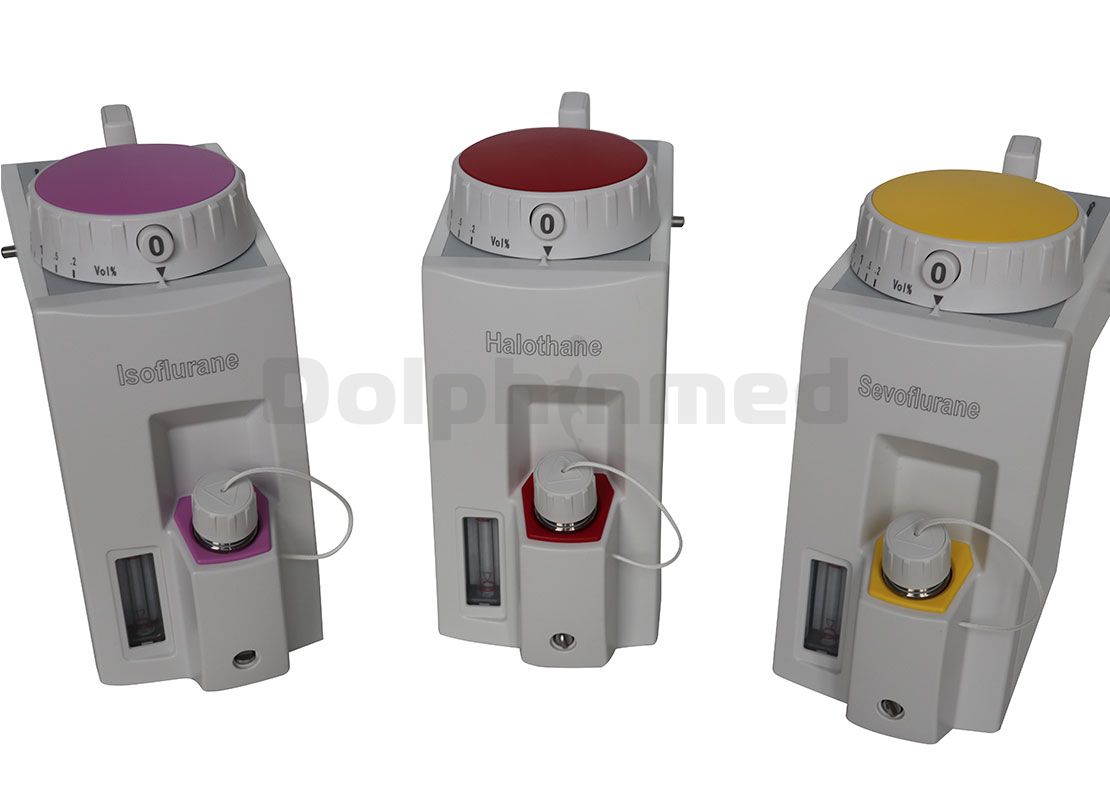

Dvapo Vaporizer meet the different agent need ,i.e. Isoflurane, Halothane,Sevflurane. and Enflurane.


Anesthesia Vaporizer (MODEL: Dvapo200plus)

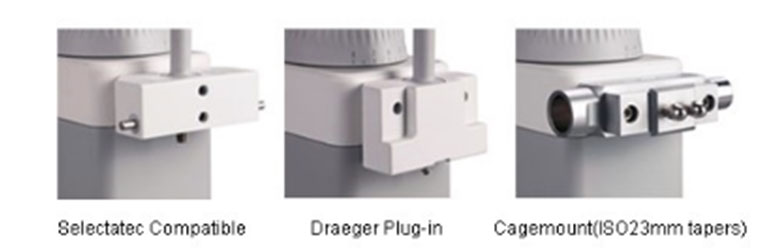

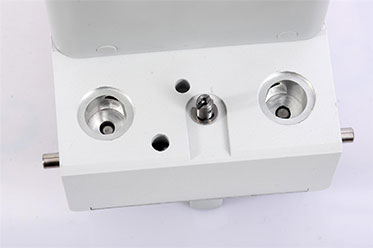

Dvapo provide several mounting types


Anesthesia Vaporizer (MODEL: Dvapo200plus)


Safety

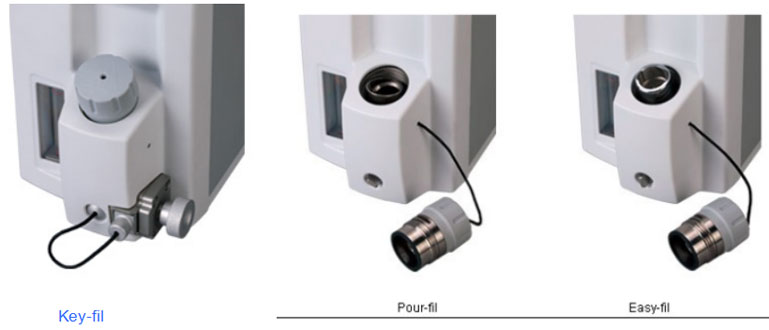

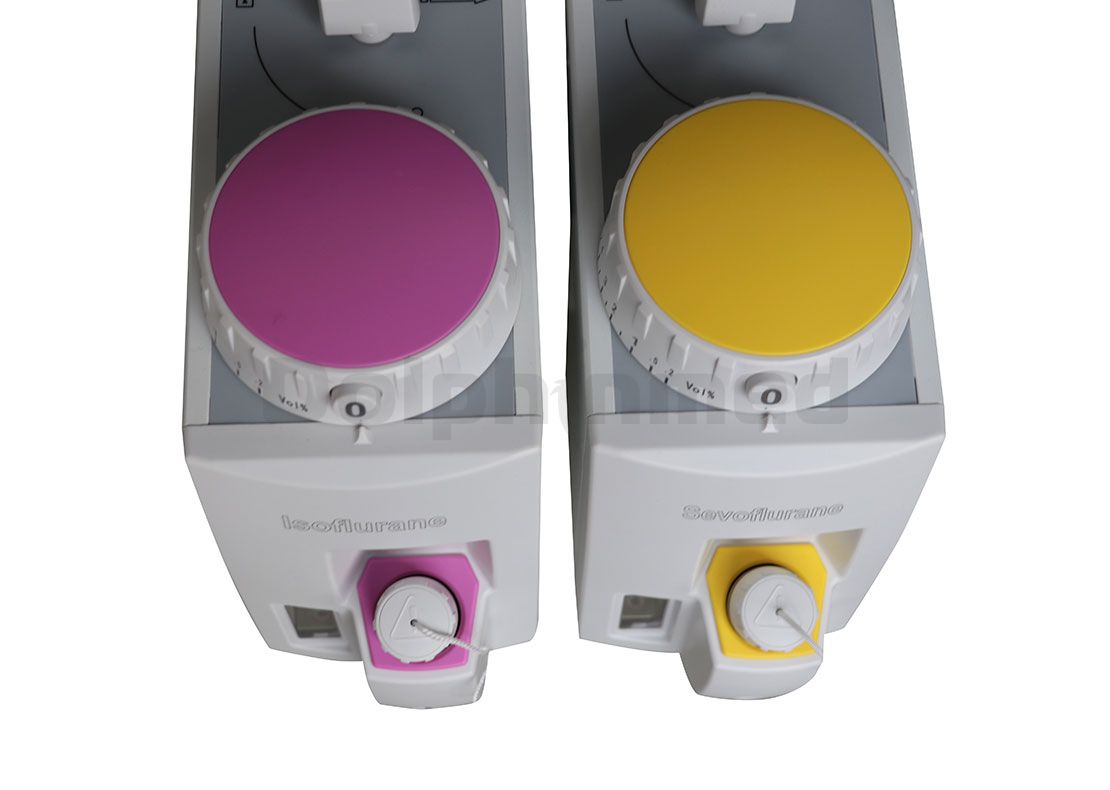

Dvapo series vaporizer is marked on from view with agent matching color labels and agent name labels. It can prove the agent-filling correct and safety. With various filler types.


Anesthesia Vaporizer (MODEL: Dvapo200plus)


Dvapo vaporizer have safety locking device to prevent the anesthetic gas volatile accidentally, provide very safe anesthesia environment.
