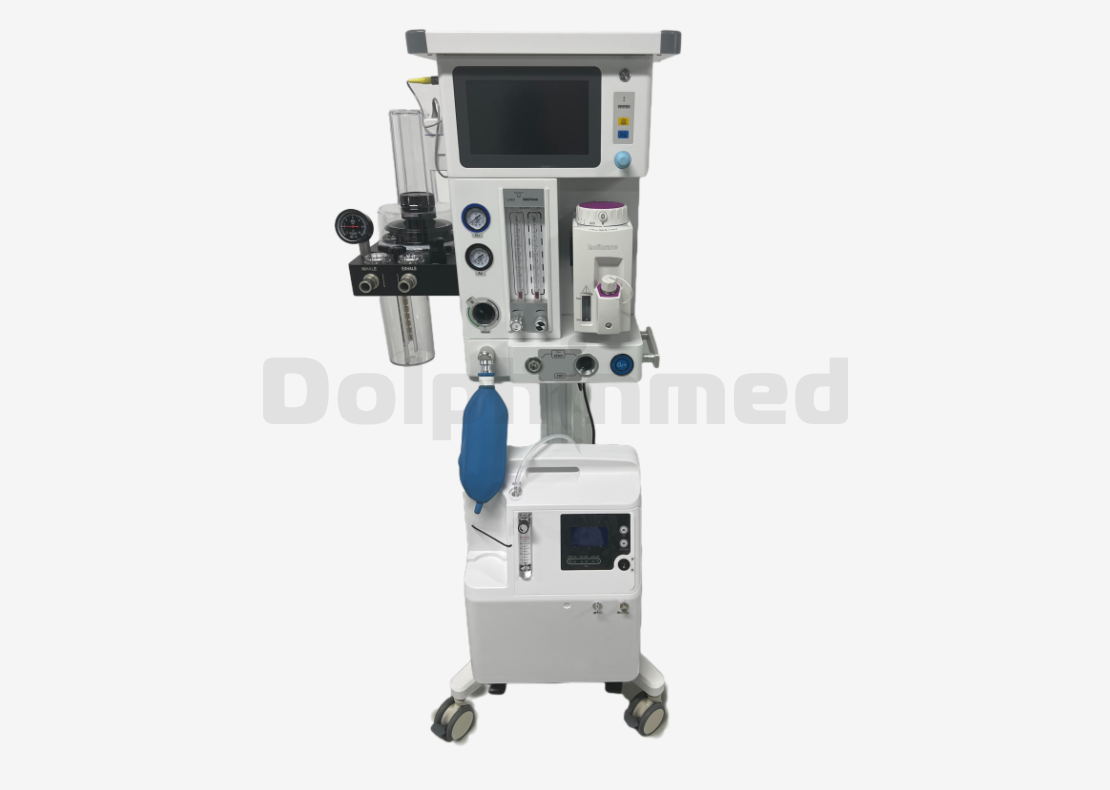

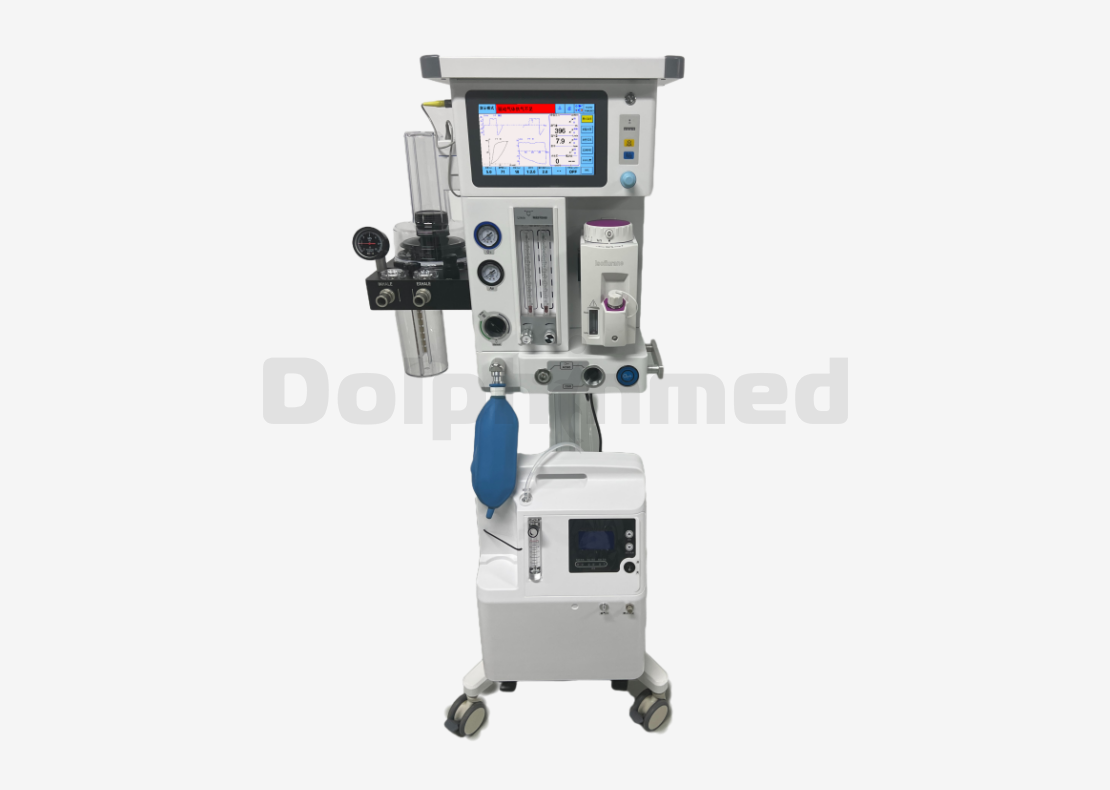

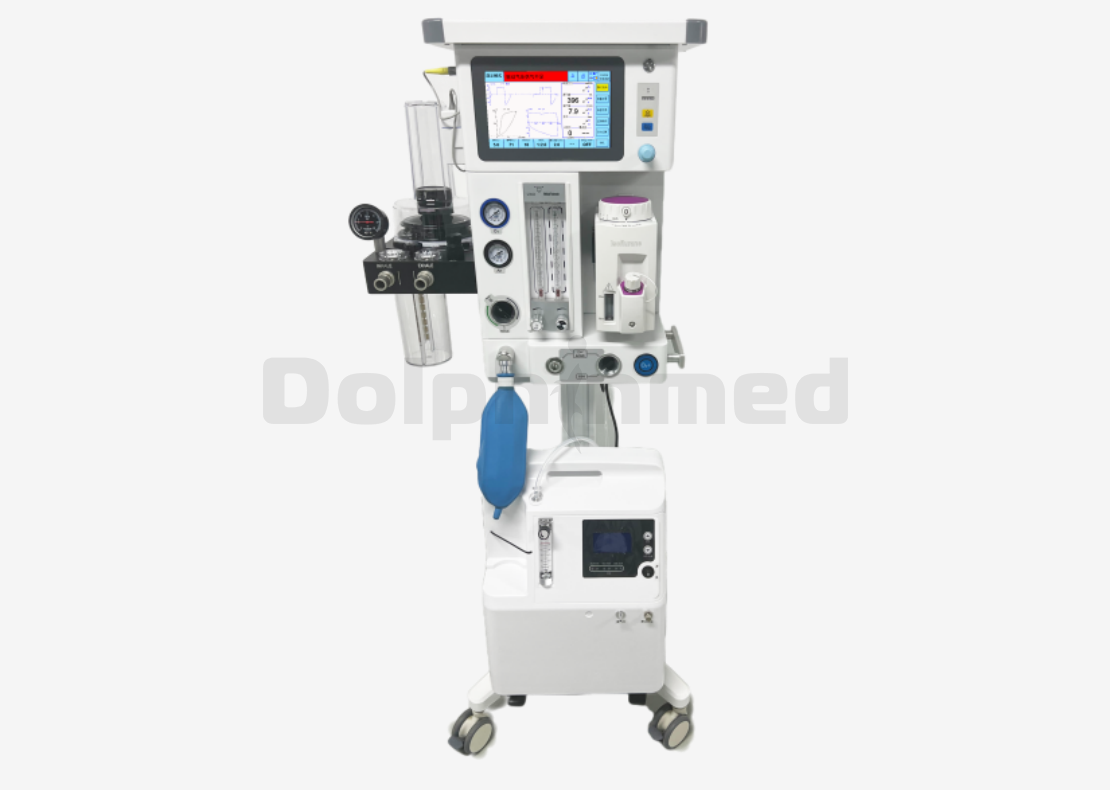

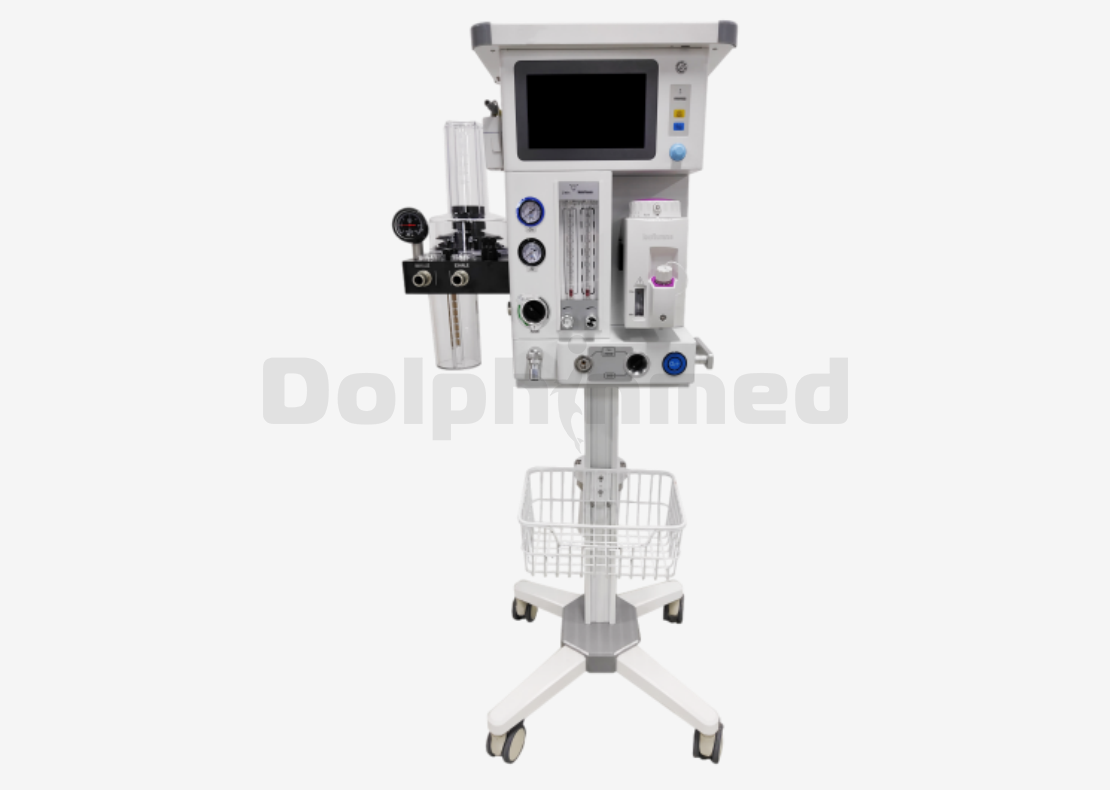

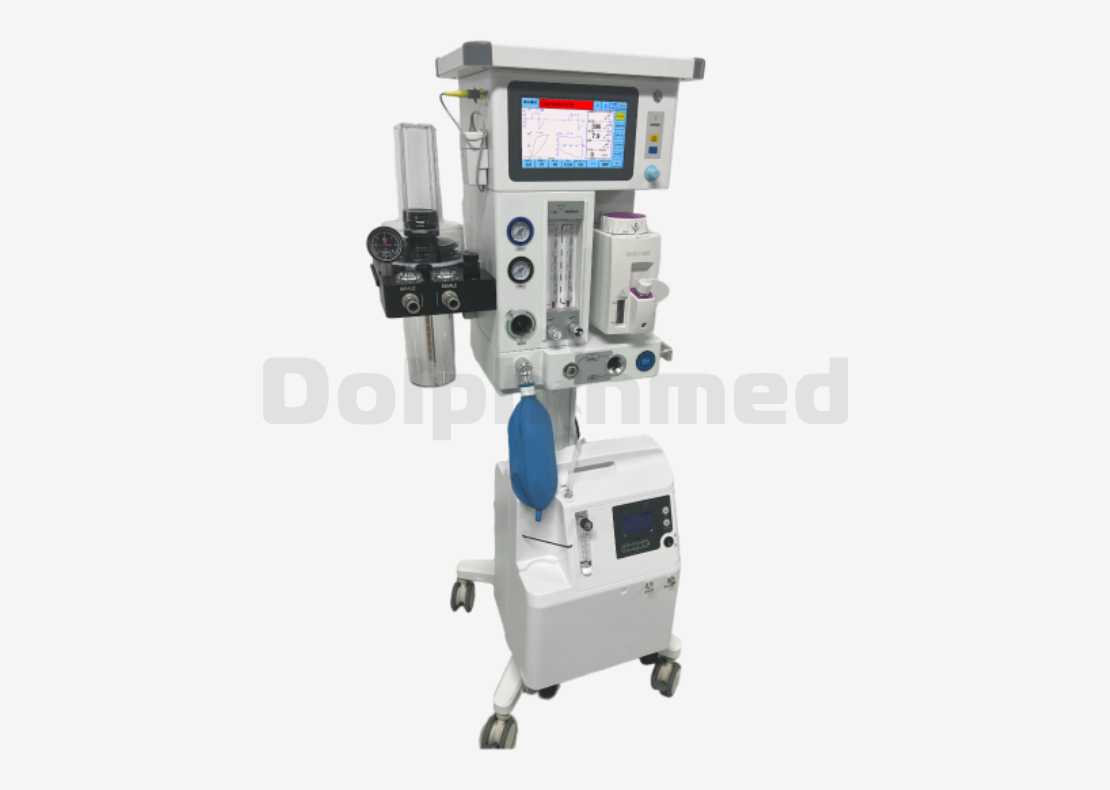

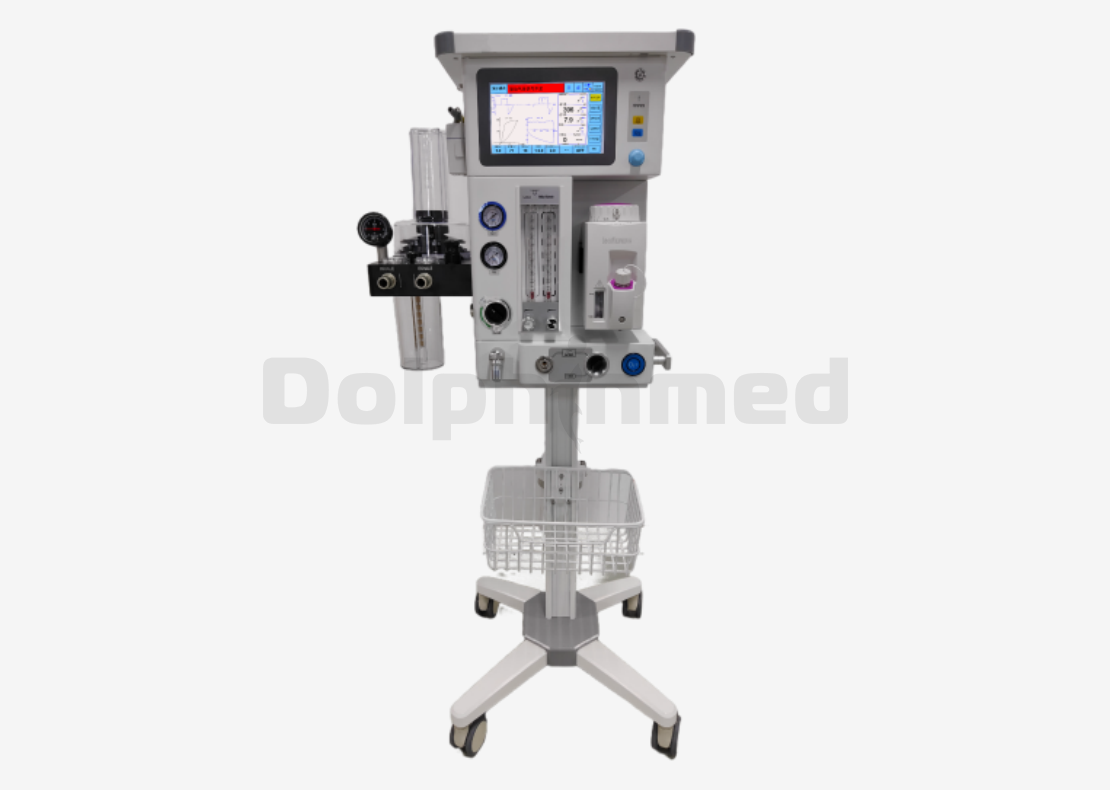

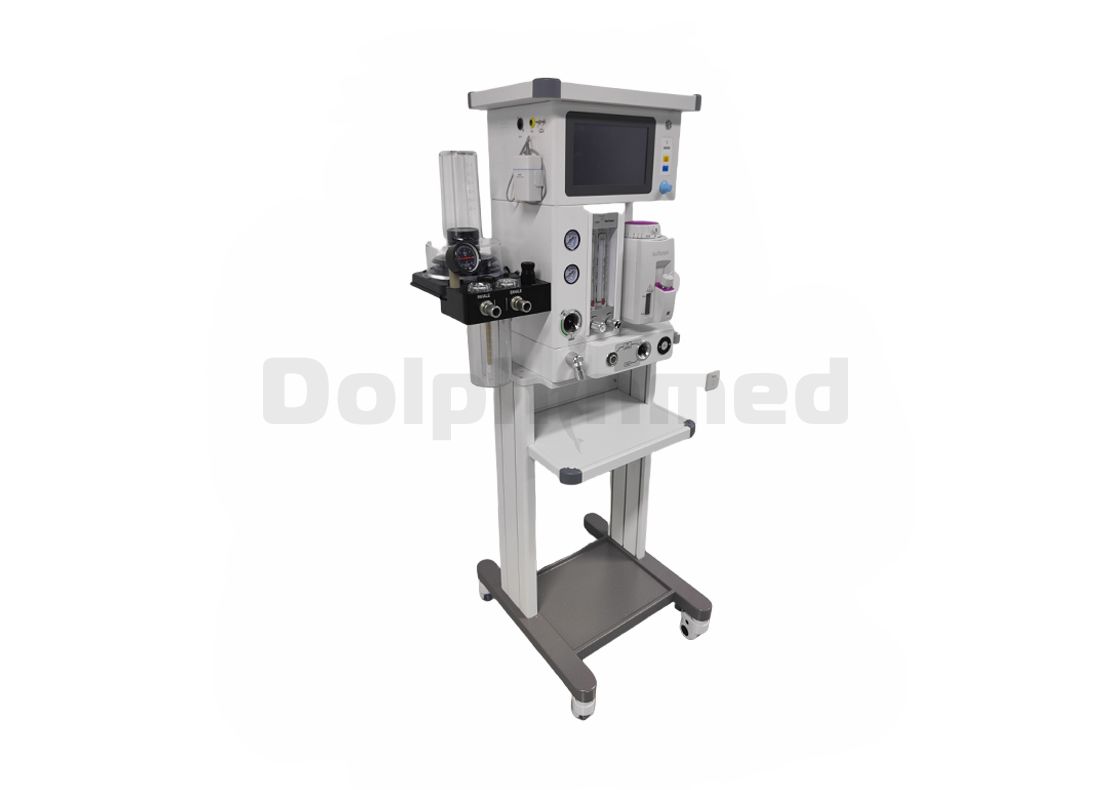

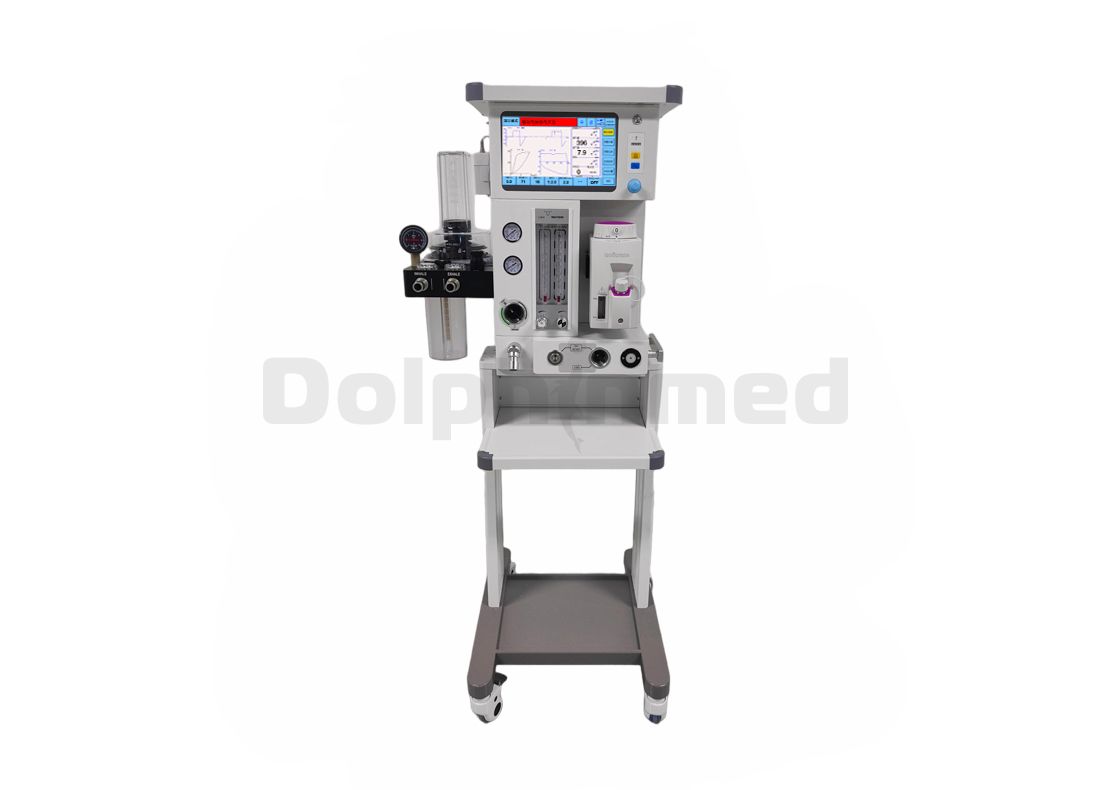

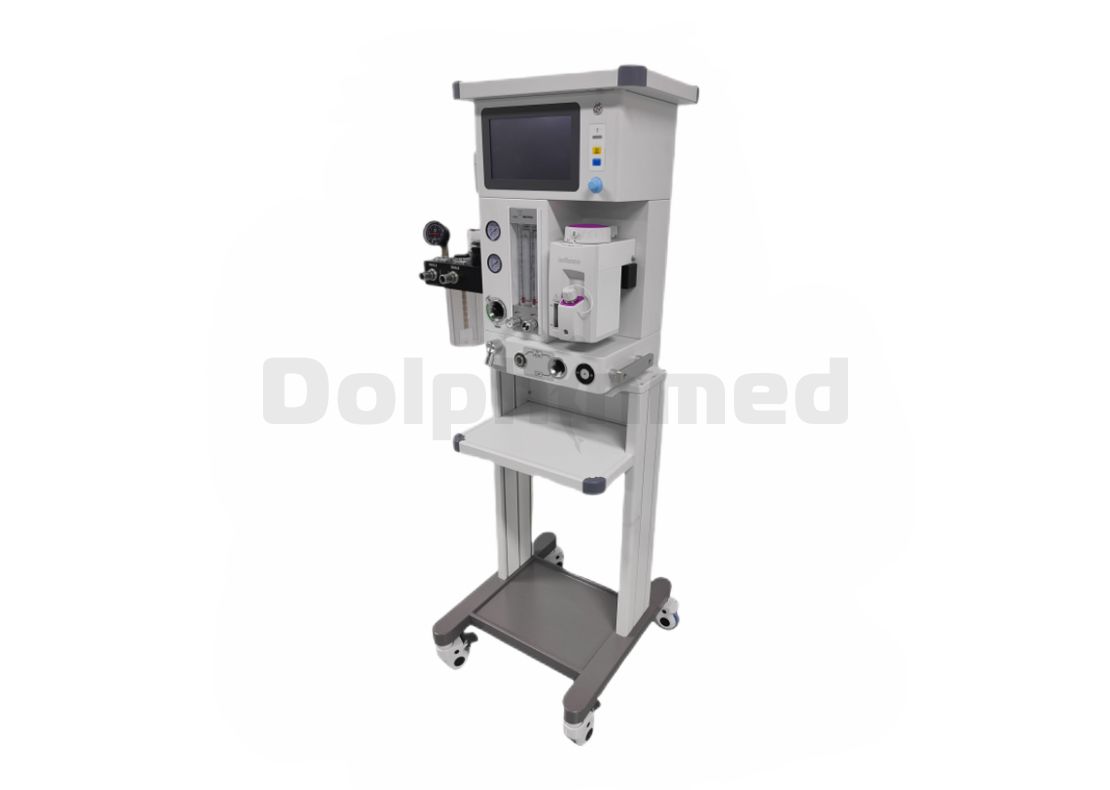

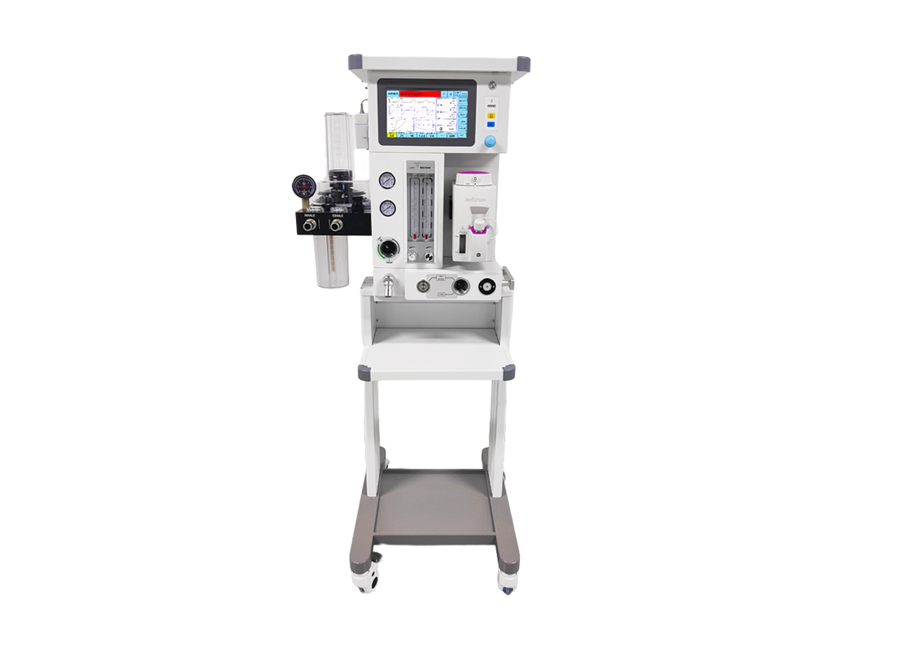

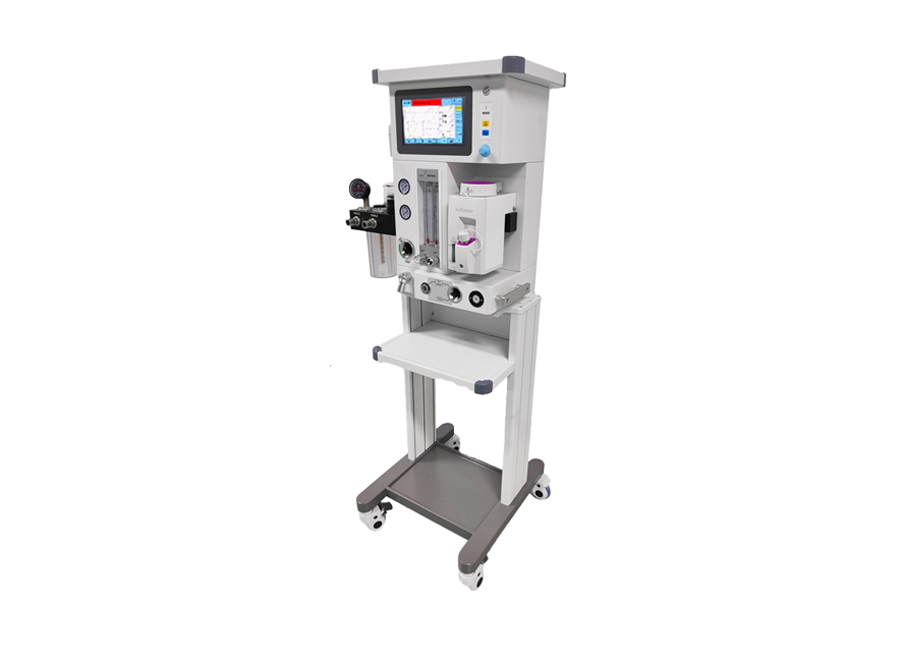

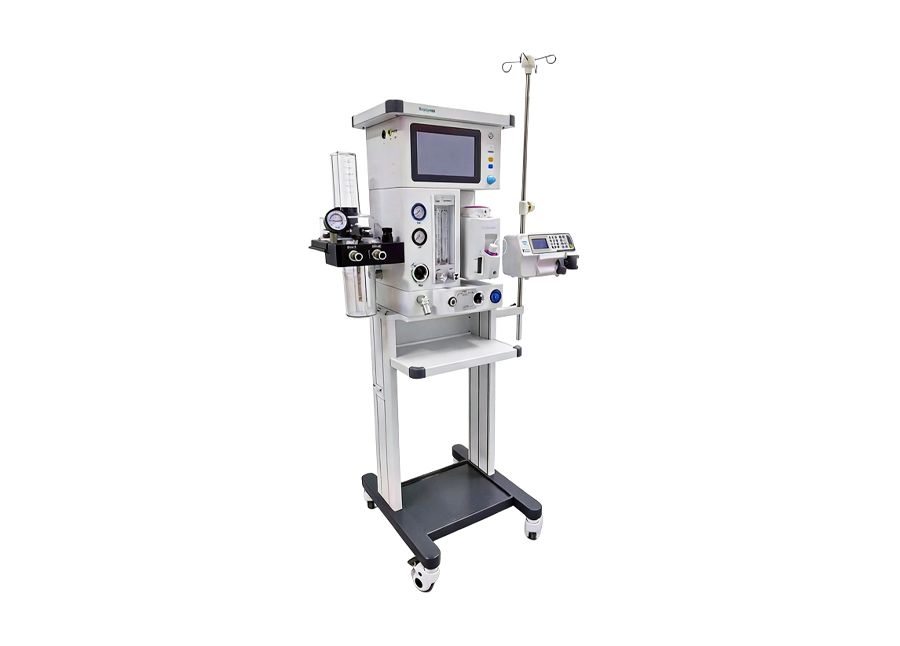

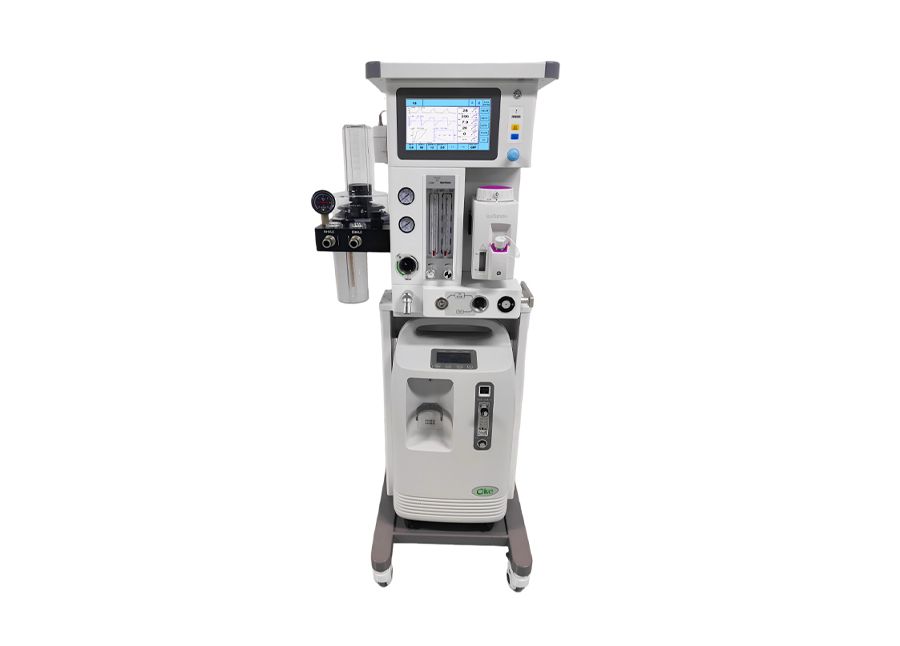

DA1200V9 Veterinary Anesthesia Workstation

Share:

Meet various requirements of surgical scenarios for animal,including thoracotomy, diaphragmatic hernia, orthopedics, minimally invasive surgery, etc

Integrated anesthesia system with oxygen concentrator,ventilation,anesthesia,monitoring

Comprehensive monitoring of animal breathing status,ensure animals safe

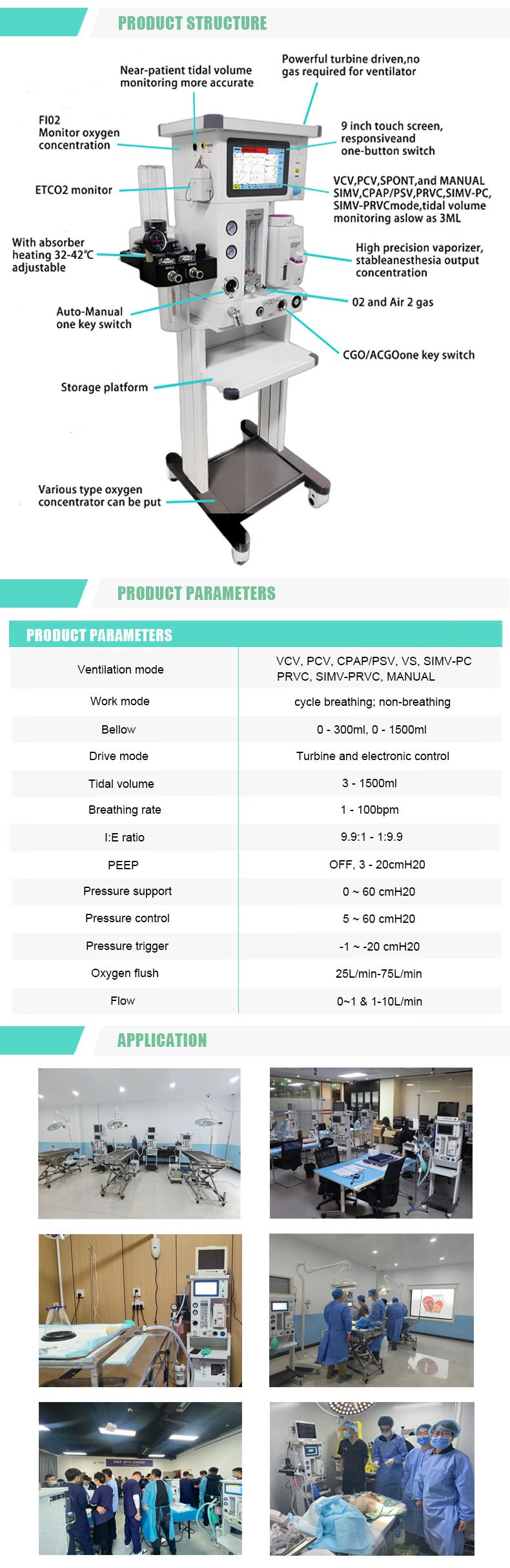

Products description

Main Unit:

Work mode: Cyclic breathing and non- bretahing

Application range: Animal weight 0.8-120kg Oxygen flush: 25L/min-75L/min

High quality aluminum trolley


CO2 absorber:

Integrated design of animal-specific integratedbellows and absorber

Dedicated fresh gas connection to non-breathingcircuit

Visible inspiration and expiration valve design toobserve the breathing state easy.Professional active pressure release valve designit is connected to the exhaust gas recoverysystem, and provides continuous 2cmH20 negative pressure for air bagAirway pressure real-time monitoringQuick change soda lime canister designStrong air tightness and reduced airway resistance


Flowmeter

Animal-specific oxygen 2 tube

Flow:0~1&1-10L/min

02 and Air

02 flow:0-10L/min

Air flow:0-10L/min

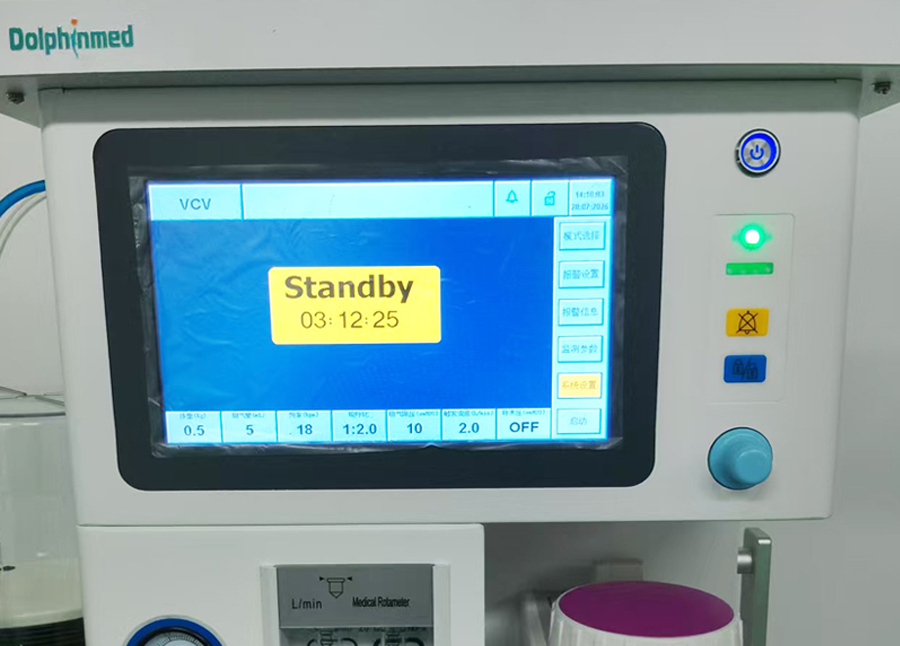

Ventilator

Drive mode: Turbine and electronic contro

Ventilation mode:VCV,PCV,SPONT(APENA),MANUAL DEMO

Bellow:0-300ML;0-1500ML

Waveform:pressure, flow, volume, end expiratory

Loop: pressure-volume; pressure-flow;flow-volume

Tidal volume: machine control: 3-1600mlManual:5-1600ml

Breathing rate: 1~100bpm    1:E: 9.9:1 to 1:9.9

Inhalation time: 0.1~10.0s   Inspiratory pause%:0-50%

PEEP:OFF,3~20 cmH20

Pressure support: 0~60 cmH20

Pressure control: 5~60 cmH20

Flow rate trigger: 0.5~20L/min

Pressure trigger:-1~-20 cmH20

PSV inspiratory terminal level: 25%


Anesthesia Vaporizer:

With pressure, flow and temperature automatic compensation

Concentration range:lsoflurane:0.2-5%Sevoflurane:0.2-8%

Halothane:0.2-5%

Flow rate range:0.2-15L/min


Monitor Parameter:

Inspiratory/expiratory tidal volume., breathingrate, spontaneous breathing rate, l:E ratio

driving gas pressure, spontaneous ventilationvolume minute ventilation, peak/airway/meanairway pressure/PEEP end-tidal pressure, inspiratory plateau pressure FIO2, ETCO2


Alarm parameters

Tidal volume, minute ventilation, breathing rate, airway pressure, peak airway pressure apena alarm, gas supply pressure failure alarm,power supply alarm, pipeline detachment orair leakage, low air gas pressure, PEEP end-tid-al pressure, FIO2, FiCO2
