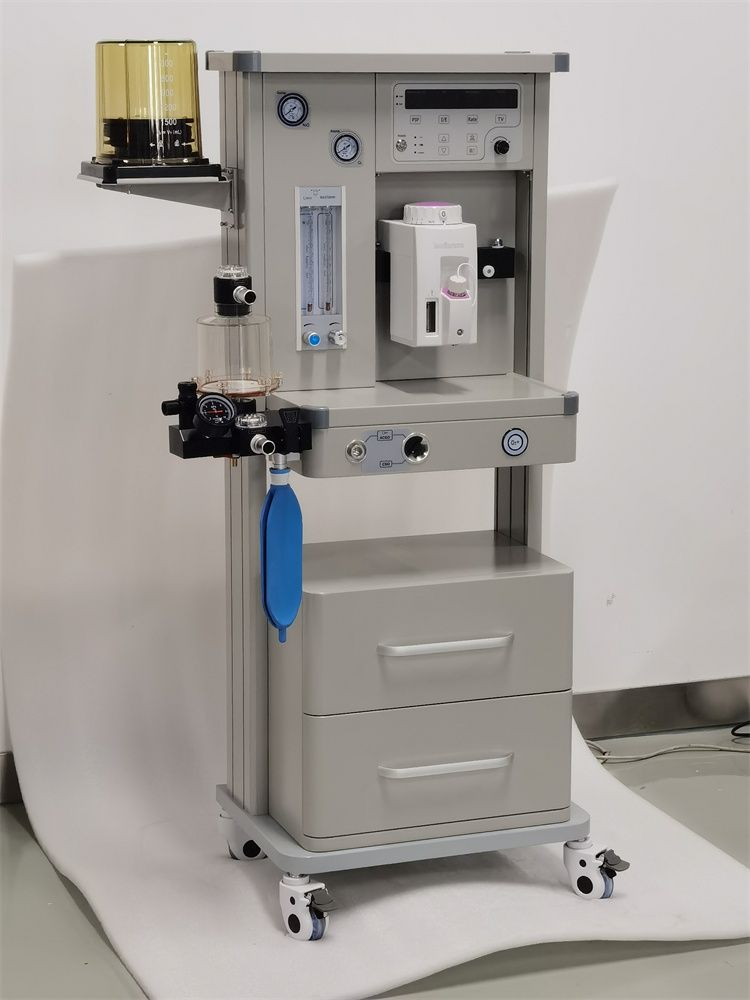

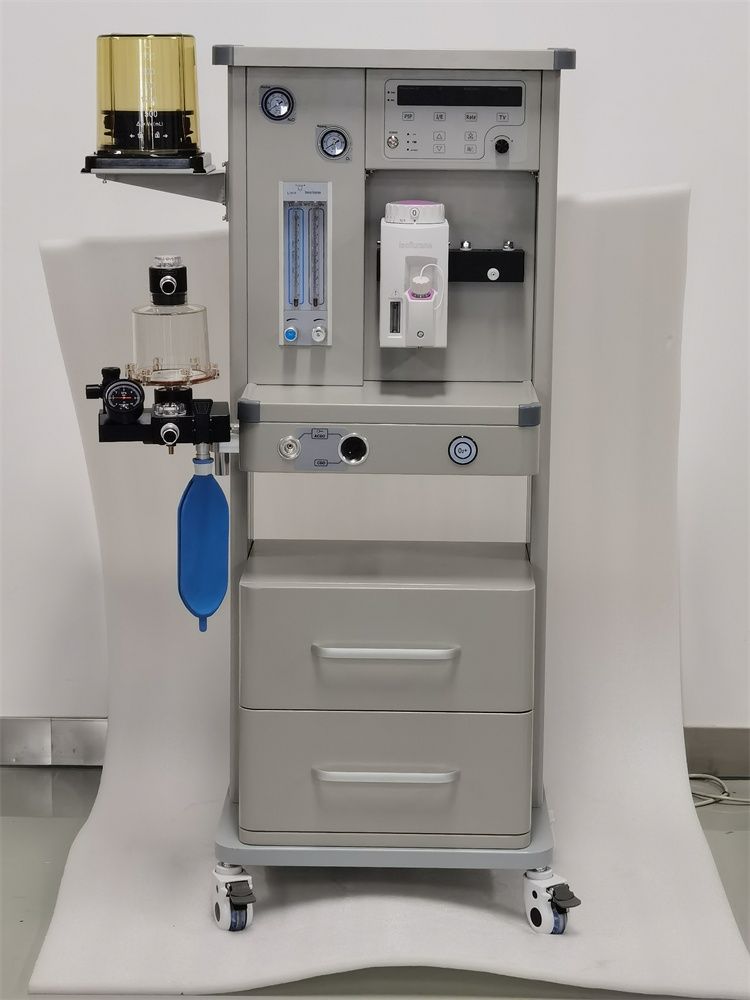

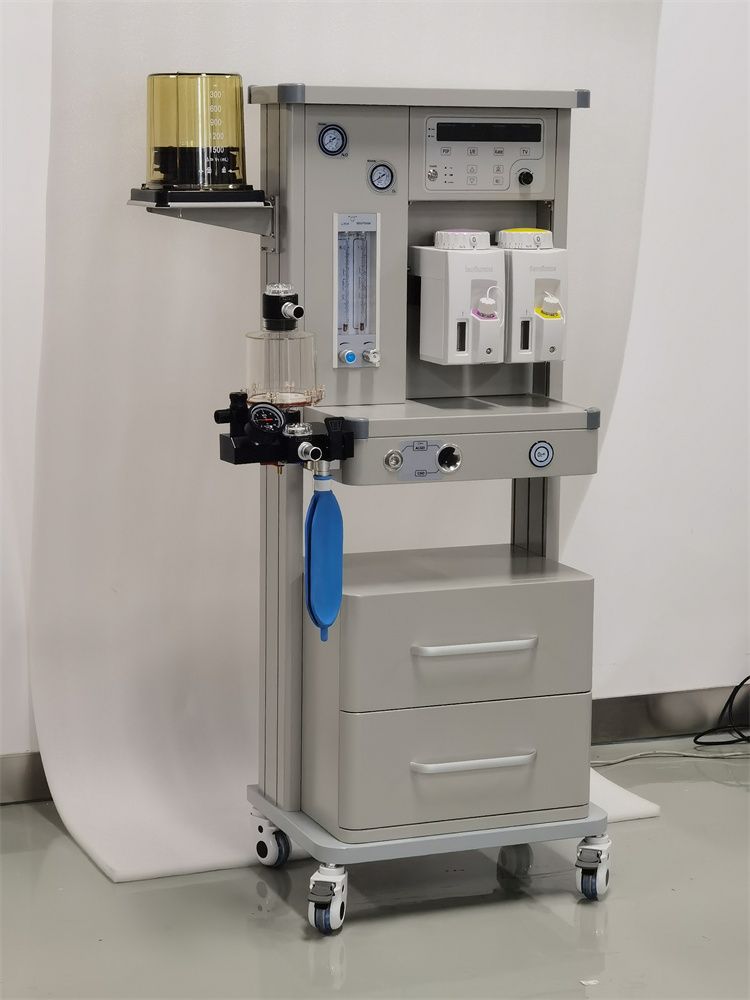

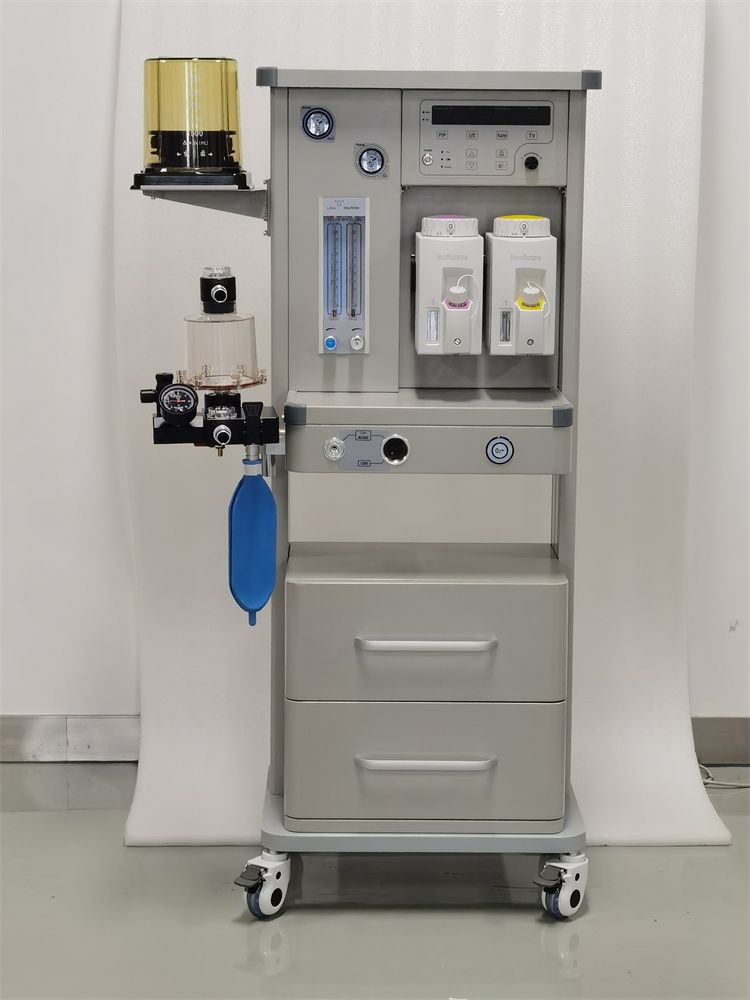

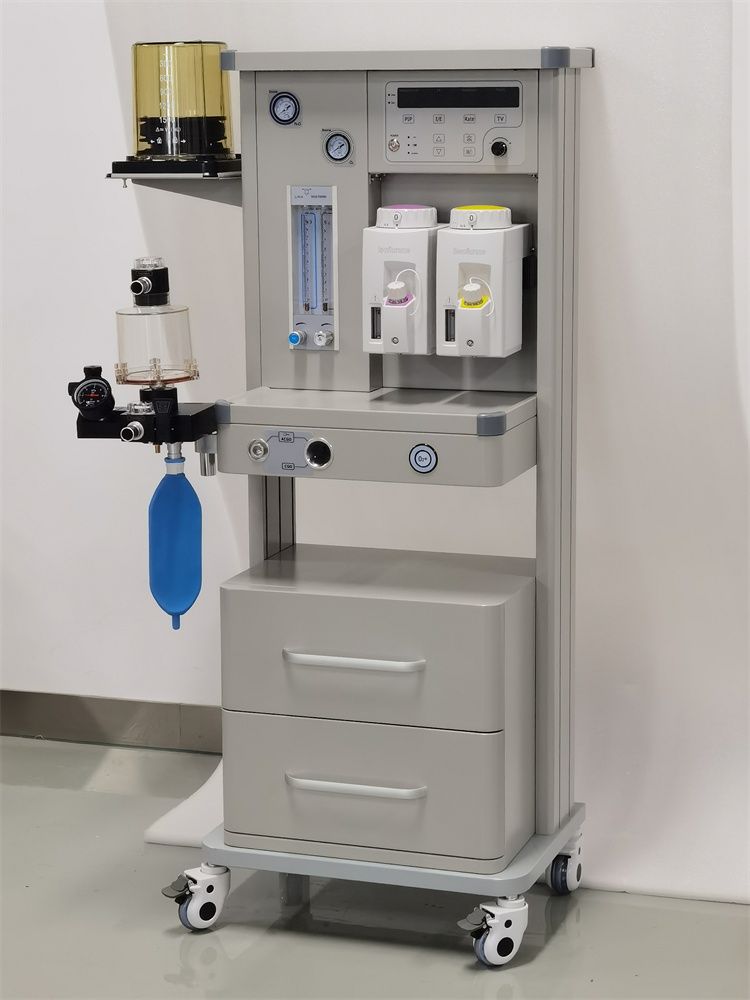

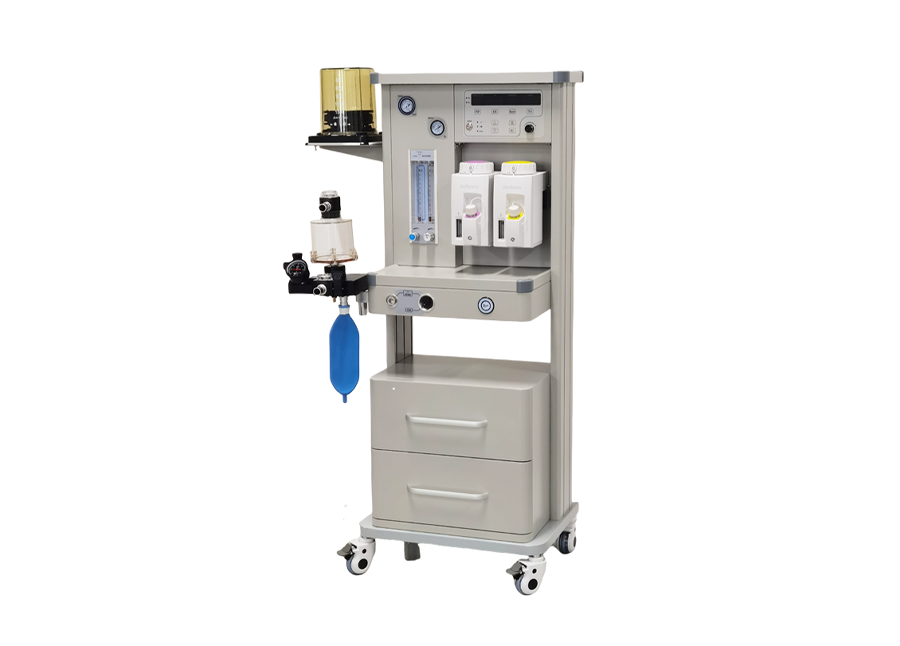

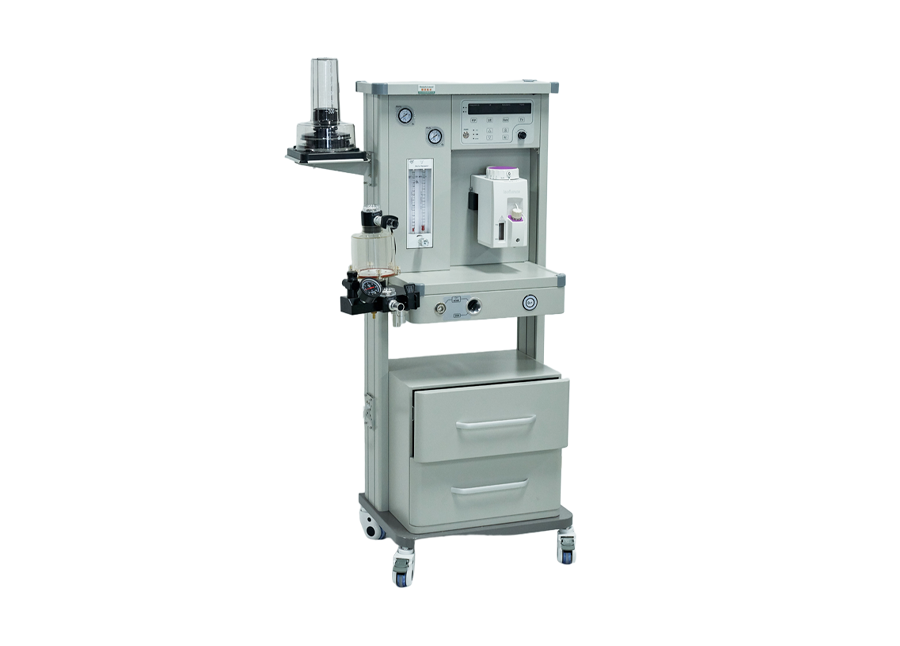

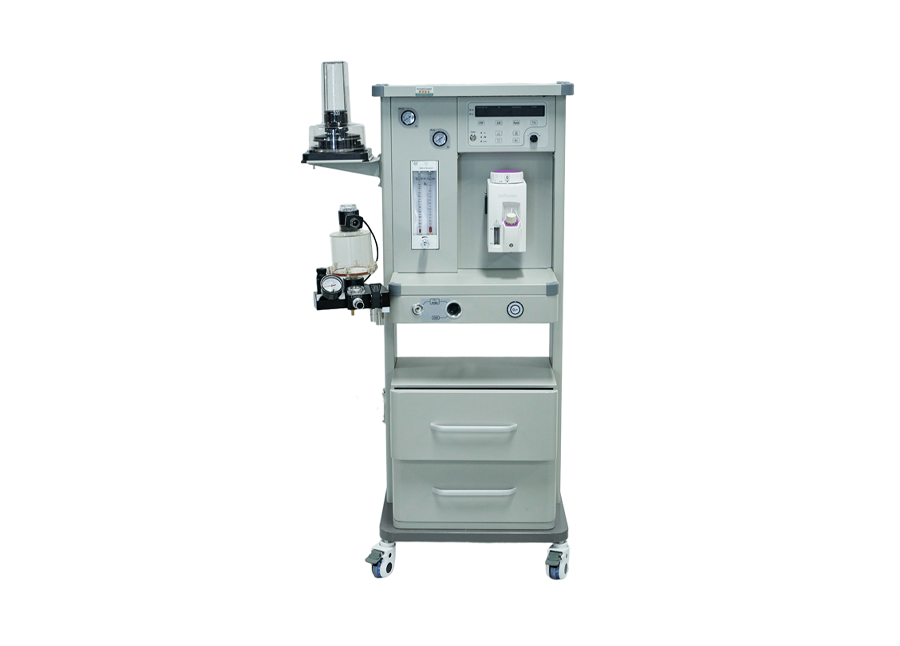

Anesthesia Machine (Model:DA1000)
  • Anesthesia Machine (Model:DA1000)
  • Anesthesia Machine (Model:DA1000)
  • Anesthesia Machine (Model:DA1000)
  • Anesthesia Machine (Model:DA1000)

Anesthesia Machine (Model:DA1000)

Share:

Technical Specifications

Working Mode:Closed,Semi-closed,,semi-open system,Open

Ventilation mode:IPPV,Manuel

Driven mode: Pneumatically driven manual controlled

Application:Adult and pediatric

Bellow:Adult& pediatric bellow

Display:LED digital display


Products description

Feature:

●Suitable for a range of anesthesia at adult&pediatric

●Integrated absorber design with good cable management solution,convenient to discharge and install timely..

●High precious anesthesia vaporizer with temperature,flow and pressure compensation

●Top-light system design provide more good vision

●Built-in backup battery provide the emergency power supply to the unit.

●Space saving compact design

●Alloy frame, humanized handle, easily and conveniently move the machine to any place.

●Adopting stainless pressure gauge, both gas supply and working pressure could be monitored. The pressure range is 0-1MPa, reading scale is 0.05

●With special protection device for Power Socket and Standby Power Socket, so as to avoid any accidents;

●Audible O2.failure warning device

●Four Anti-static castors(2 with brakes)

●2 large drawers with big storage space(spport three drawer optional)

●Electro-pneumatic ventilator

●Common gas outlet(CGO)


Technical Specifications

Working Mode:Closed,Semi-closed,,semi-open system,Open

Ventilation mode:IPPV,Manuel

Driven mode: Pneumatically driven manual controlled

Application:Adult and pediatric

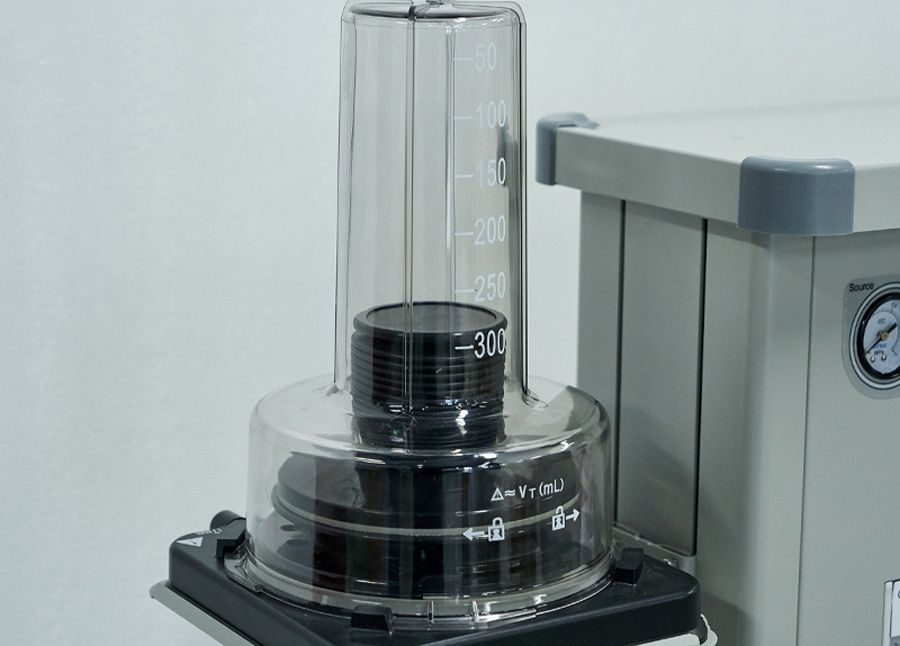

Bellow:Adult& pediatric bellow

Display:LED digital display

Monitoring:Tidal volume,breathing rate,I:E ratio,Peak airway pressure,

TV:50~1600ml        Breathing rate:4~60bpm

I:E ration:1:1~1:4 adjustable

Upper airway pressure:2~6kpa

Lower airway pressure:0.6~2kpa

Battery low alarm   Battery no power indicator   Alarm Silence

Manuel/Auto Switch

Anesthesia gas source switch:start or stop the gas source control

Pressure Gas Gauge:four press gauge;one is oxygen source pressure

                               one is oxygen working

                               one is N2O ource pressure

                                one is N2O working

Alarm parameter:Upper tidal volume alarm,low oxygen alarm,Apnea,Power failure

High precious anesthesia vaporizer,the agent output is continuous and stable, and precise. the agent type: Isoflurane, Enflurane,halothane,sevoflurane.

Oxygen flush:25L/min~75L/min

Airway pressure:  O2:0.25Mpa~0.65Mpa

                N2O::0.25Mpa~0.65Mpa

Power:220V±10%,50HZ±1% or 110V±10%,60HZ±1%


Flowmeter:

O2&N2O flowmeter

Two tube:O2:0~10L/min,N2O:0~10L/min

with hypoxic guard system                                          ,

Make sure the oxygen concentration not lower than 25%

O2& Air Flowmeter Optioanl

O2&N2O& Air Flowmetr Optional

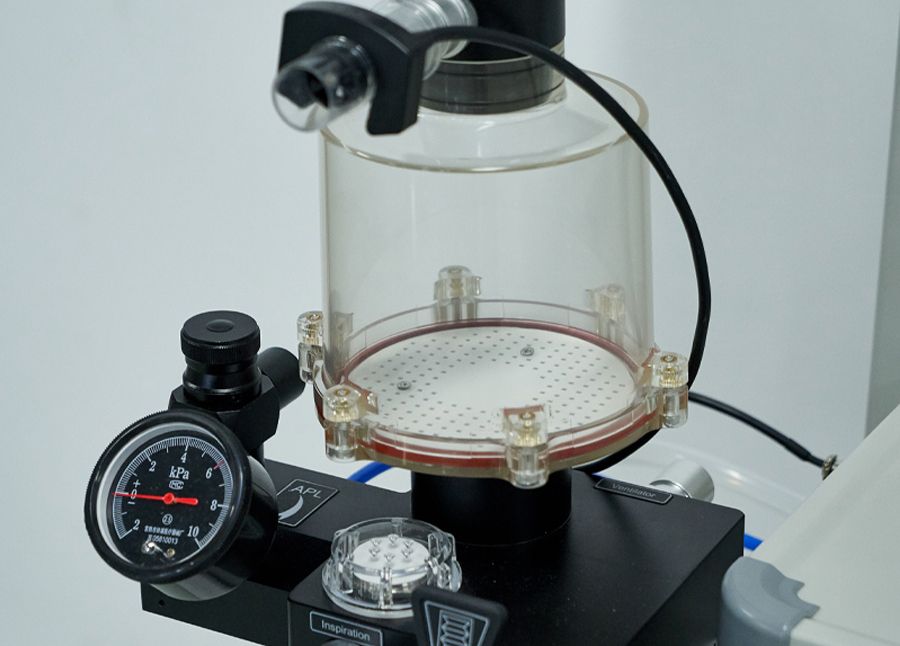

Circle absorber:

Integrated and sterilized at 134°C high temperature and high pressure.

Visiable inspiration valve and expiration valve

Safety valve pressure limit:6Kpa

Quick change soda lime system

Good air tightness,high reliability and minor respiratory impedance

Manual/ventilation switch


Vaporizer: Dvapo200plus, Selectatec bar mounting type
