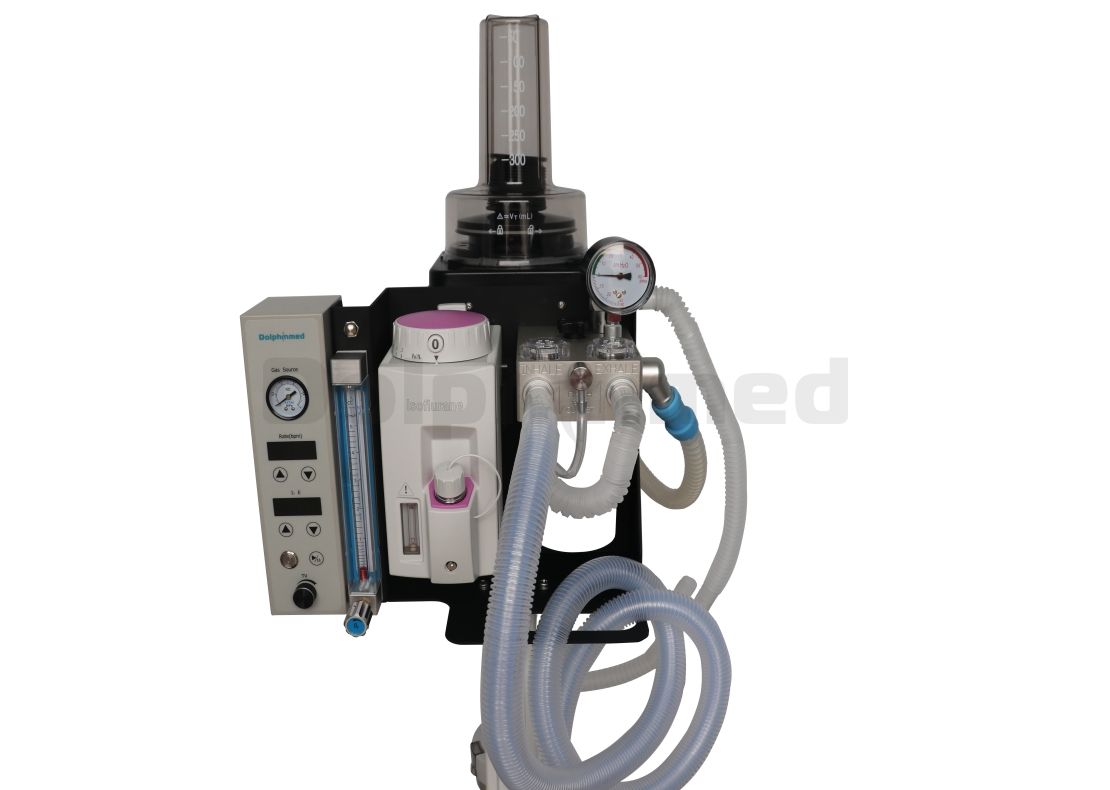

Vet Anaesthesia Machine Model:DA1200V3

Share:

Dolphinmed delivery high precious veterinary anaesthesia equipment  with ventilation manage system . It is suitable for animal hospital, pet clinic and animal laboratory. This technical index of animal anaesthesia machine can meet the needs of general anesthesia and medical research on mice, dogs, cats, rabbits, monkeys, pigs, sheep and other animals in animal laboratory.


Products description

Ø  Compact light-weight and portable, could be transported by pull-rod case, put on table and assembly on the trolley.

Ø With auto anesthesia ventilation management system with respiration mode:IPPv,manuel mode

Ø Suitable for small animals, Non-breathing circuit(Jackson or Bains Absorber) is available

Ø Selectatec-bar and quick change vaporizer mounting device

Ø Professional airtight breathing circuit design, provide the stable gas anesthesia, save anesthesia gas consumption, to ensure a clean operating room and laboratory environment.

Ø External and reusable soda lime canister, easily watch and replace soda lime.

Ø With Oxygen flush function to ensure that clinical anesthesia demand and Oxygen supply demand.

Ø Anaesthesia CO2 absorber assembly has no dead angle design, fast anesthesia, short recovery and high precision. The CO2 absorber supports both open loop and closed loop anaesthesia design and provides independent access .

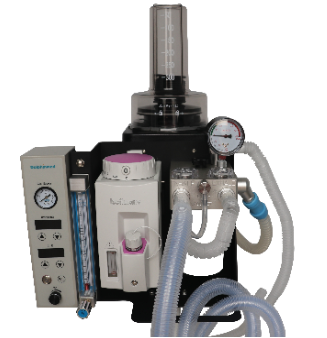

Vet Anaesthesia Machine Model:DA1200V3




Ø Provide a special Pop-Off  valve,Occlusion design, it can  connected to the exhaust gas recovery system and provide a continuous 2 cmH2O negative pressure for the reaspirato airbag ,reducing valve to prevent pressure to hurt the animal, ensure the animal safety .

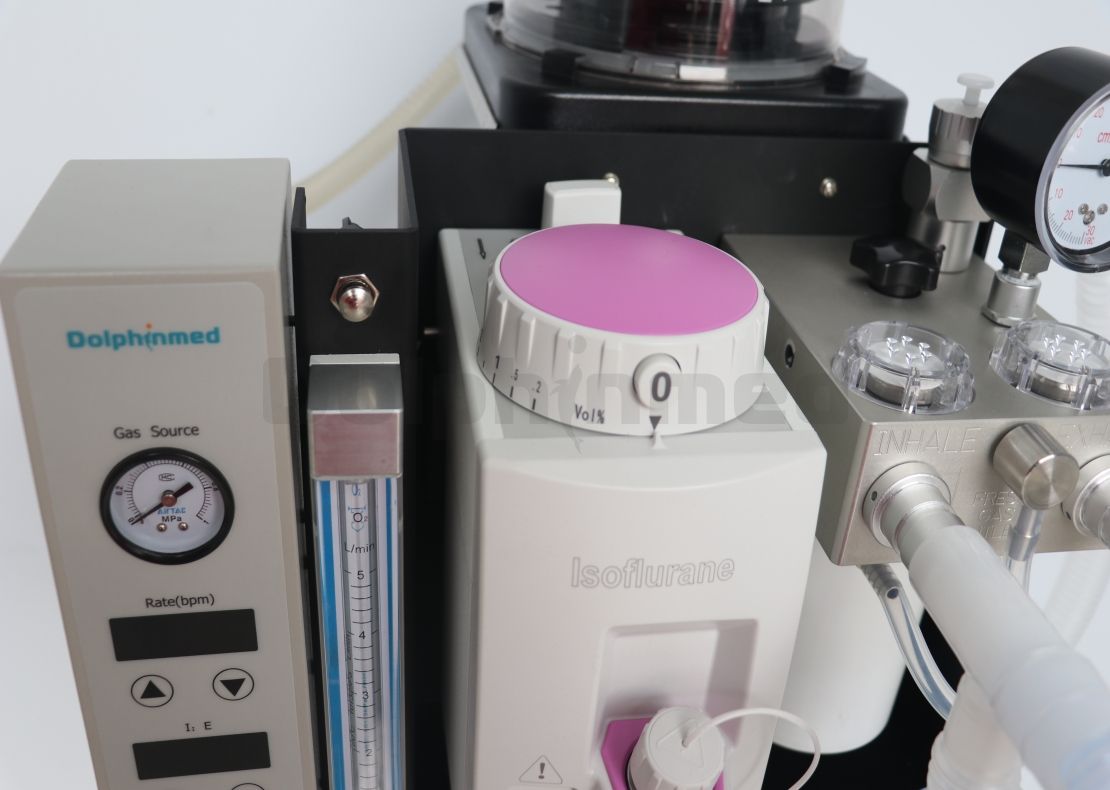

Ø Provides an accurate oxygen flow meter with a display range of 0 to 4LPM

Ø Vaporizer: the output concentration is not affected by the change of flow, pressure and temperature, accurate and reliable, equipped with safety locking device to prevent

anesthetic leakage. Isoflurane,sevoflurane and halothane vaporizer are optional.

Ø The hard aluminum solid shell is used, and the surface sanding treatment is adopted, so that the cleaning and disinfection are more convenient.

Ø Visible inspiration and expiration valve

Ø With fresh gas output connector ,specifically designed to accomodate low flow

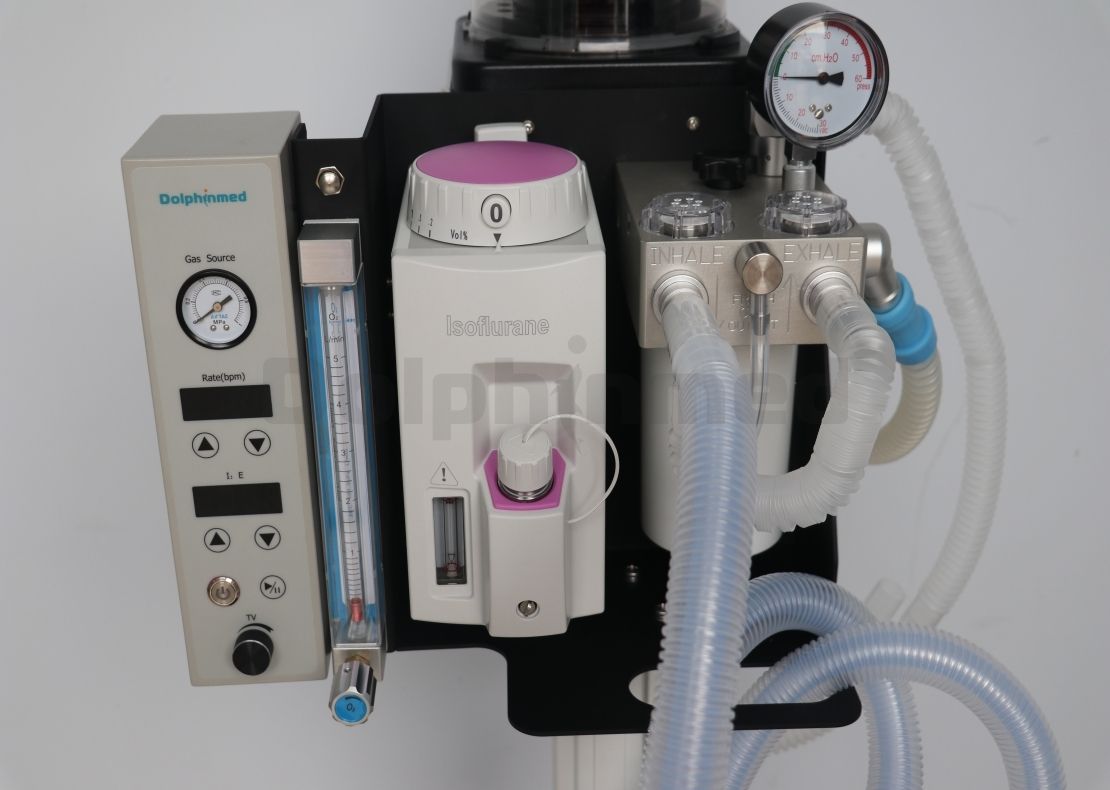

Vet Anaesthesia Machine Model:DA1200V3




Technical Specification
Application0.5-100kg animal
Respiration modeIPPV,Manuel
Ventilation modeOpen Closed,half-closed,half-open
Tidal volume10-2000ml
Oxygen source pressure0.25~0.65Mpa
Gas source pressure monitoring scope0-1Mpa
Airway pressure scope-30~60CMH2O
Flow Control0-4L/min
Oxygen Flush35L/min~75L/min
Pop off valveDirects the waste anesthetic gas from the machine to a scavenging system. In the completely open position, the pop-off valve will release pressure at 2 cm H2O, while maintain a constant passive volume in the breathing bags.
Inspiration impedance≦0.6Kpa
Expiration impedance≦0.6Kpa
Absorption tank capacity700ml
MonitoringTidal volume,Airway pressure,Gas source pressure monitoring,,breathing rate,I:E ratio,
I:EAdjustable:3:1,2:1,1.5:1,1:1,1:1.5,1:2,1:3
BPM2~150bpm
BellowBig animal t:50-1600ml,small animal:0-300ml
Configuration list
Main unit1Include the ventilator,bellow,bellow tray,flowmeter,CO2 absorber,selectatec bar,chassis,oxygen flush
Anesthesia Vaporizer1Isoflurane,Halothane,Sevoflurane, EnfluraneWith temperature, flow and pressure compensation
Breathing circuit1
Gas airbag0.5L,1L,3L3
Reusable Silicon pipeline1Ф22×1000
Oxygen hose1
Y-connector1With pressure differential sampling connector

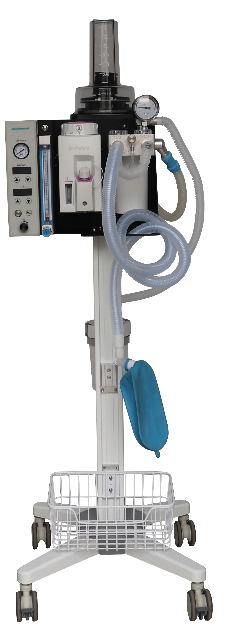

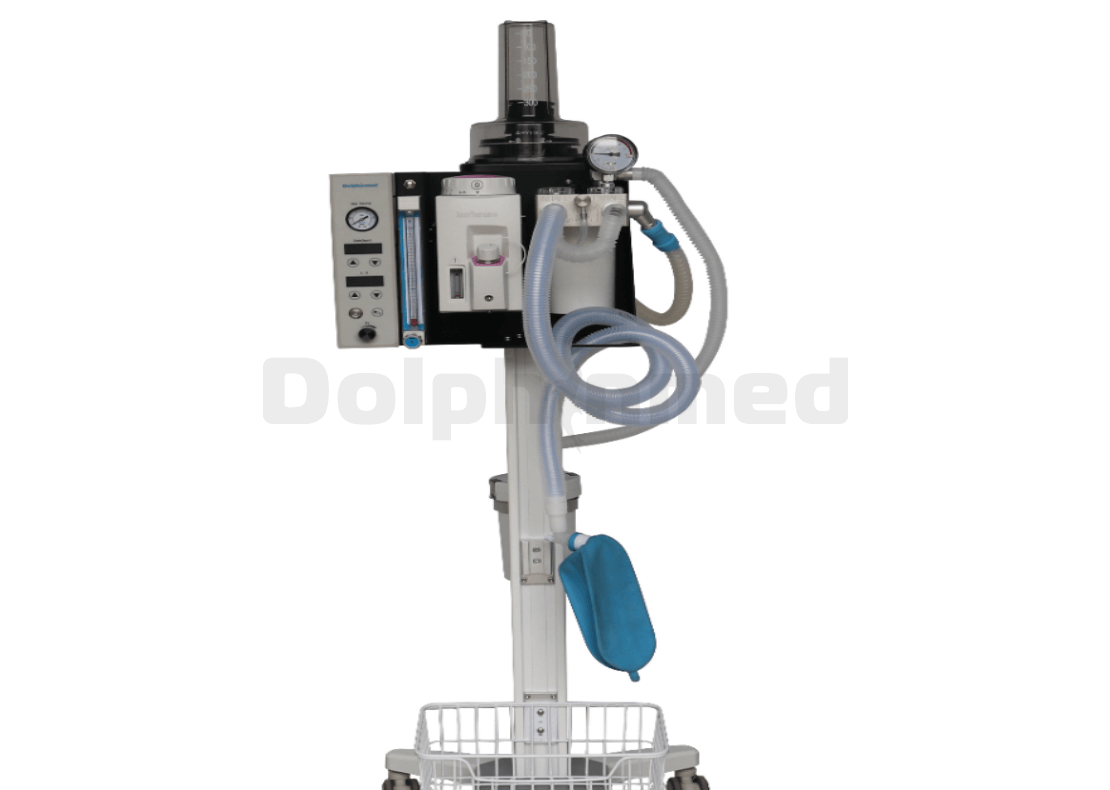

Trolley1
RegulatorOptional
Anesthesia ventilatorOptionalModel:DAV80V
Anesthesia monitorOptionalModel:DAM85V
Non-Breathing circuitOptional
Veterinary MaskOptionalDAM80
LaryngoscopeOptional
Endotracheal intubationOptional
Exhaust gas recovery tankOptionalDE0602
