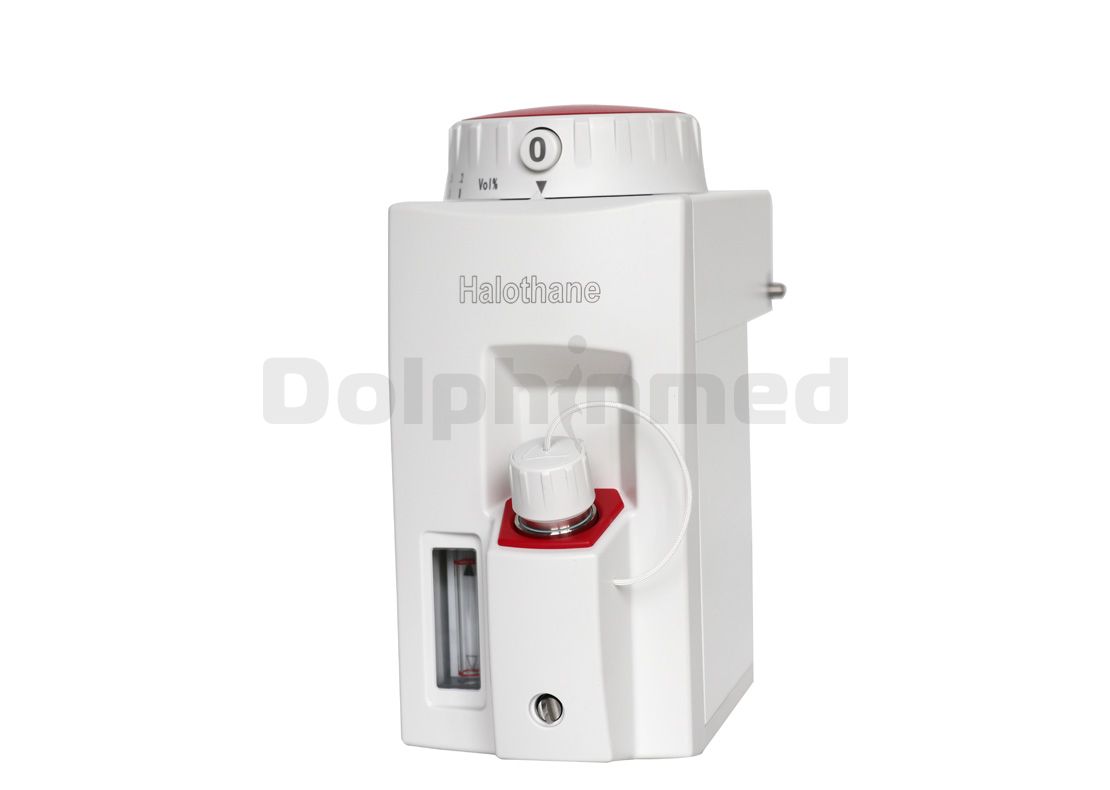

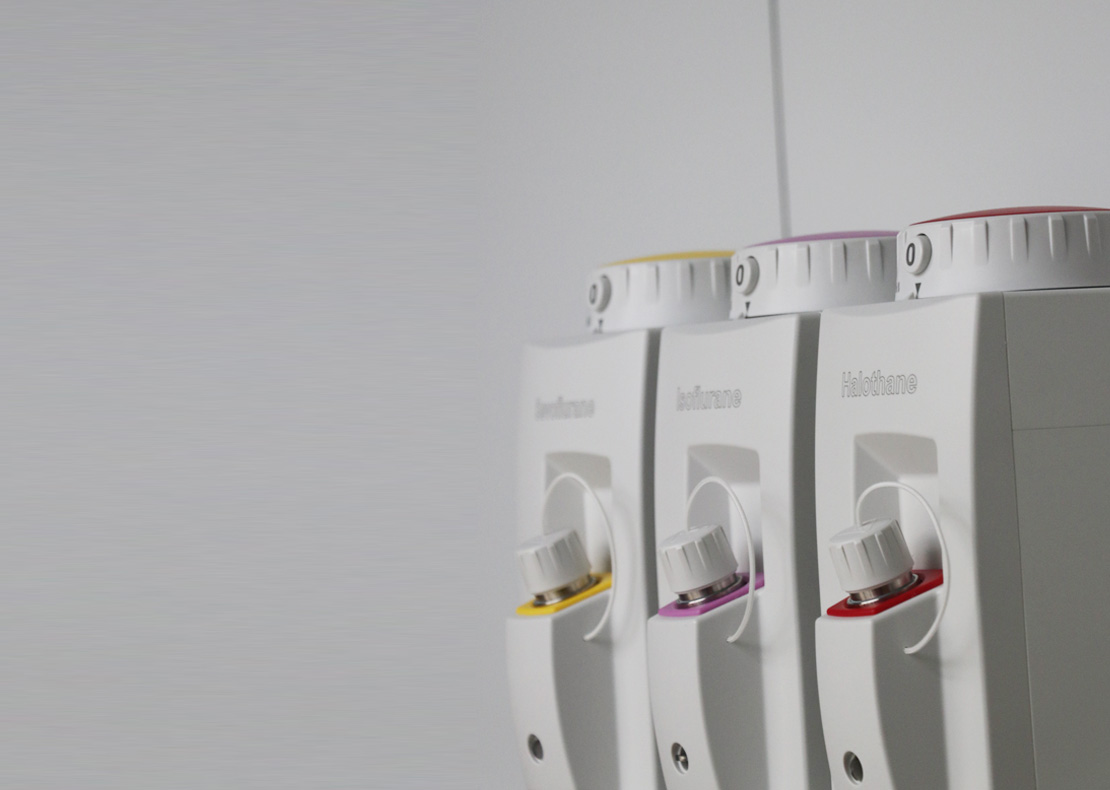

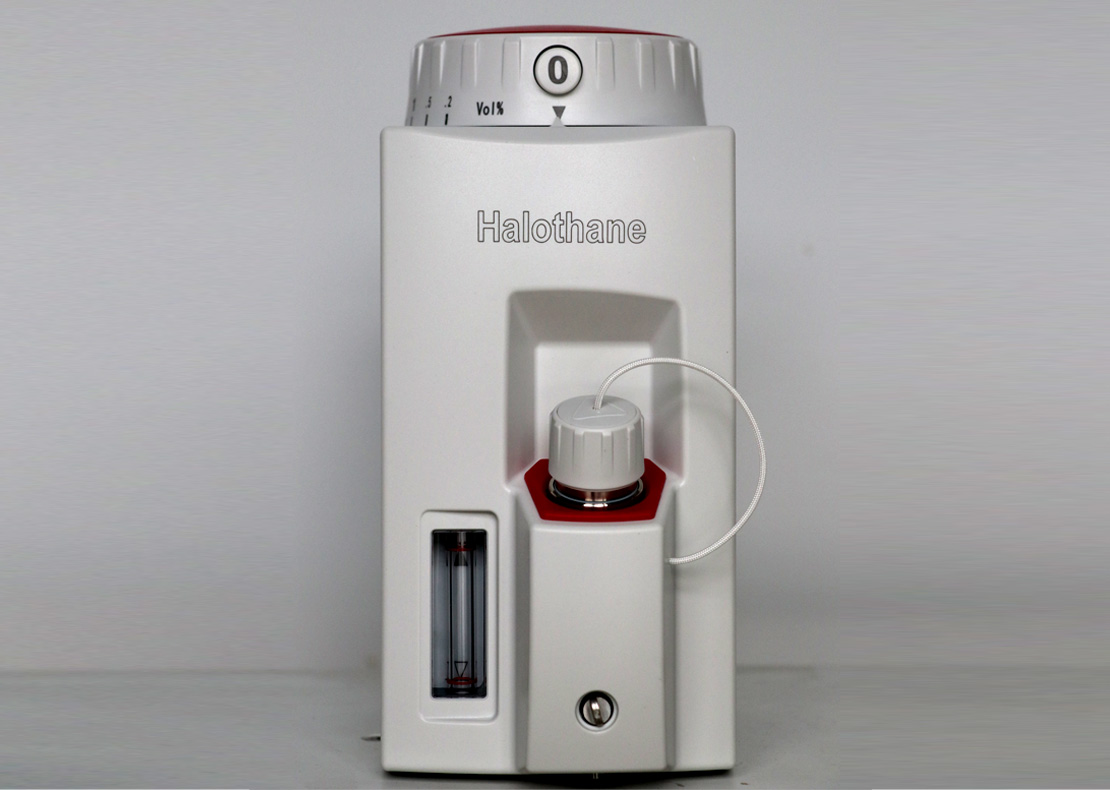

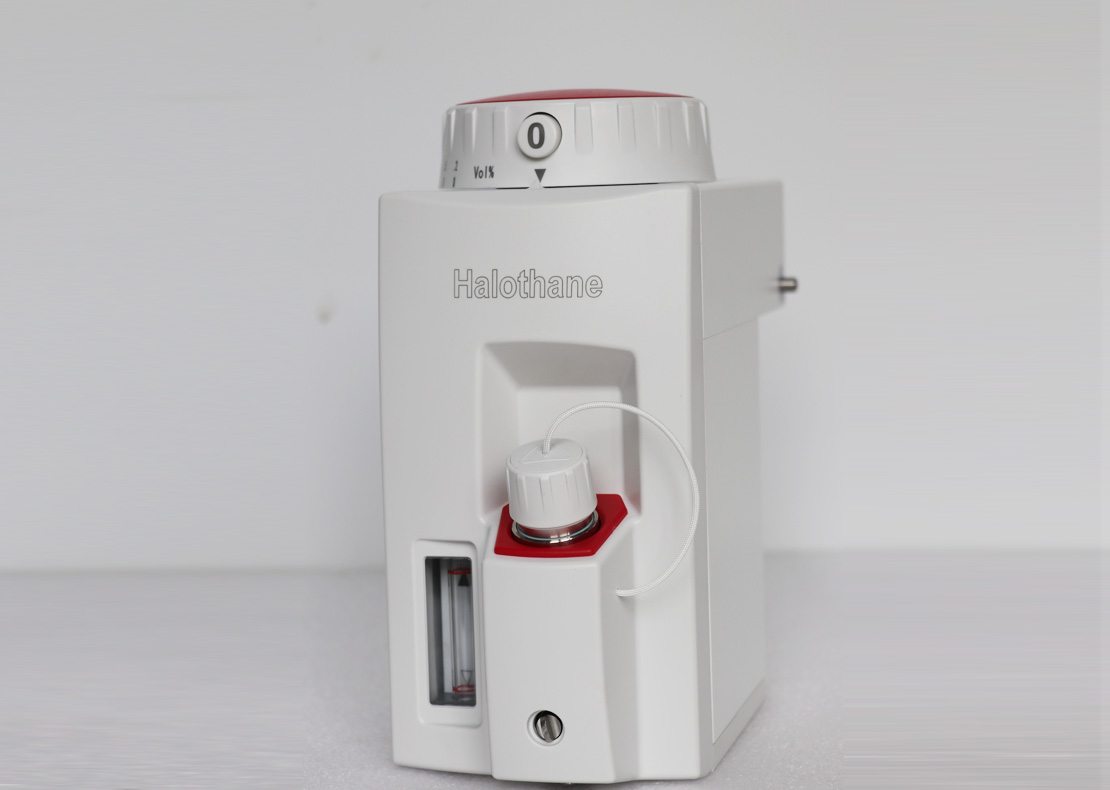

Halothane Anesthesia Vaporizer (Model: Dvapo200plus)
  • Halothane Anesthesia Vaporizer (Model: Dvapo200plus)
  • Halothane Anesthesia Vaporizer (Model: Dvapo200plus)
  • Halothane Anesthesia Vaporizer (Model: Dvapo200plus)
  • Halothane Anesthesia Vaporizer (Model: Dvapo200plus)
  • Halothane Anesthesia Vaporizer (Model: Dvapo200plus)
  • Halothane Anesthesia Vaporizer (Model: Dvapo200plus)
  • Halothane Anesthesia Vaporizer (Model: Dvapo200plus)
  • Halothane Anesthesia Vaporizer (Model: Dvapo200plus)

Halothane Anesthesia Vaporizer (Model: Dvapo200plus)

Share:

Adopts well selected high precision and super clean monobloc copper alloy, processes the tested structure pieces by numerical control, processed by fine treatment, rubbing, matching, rinsing and disinfection, complied with the highest industrial processing standard---Food Grade Standard

Products description

Features:

●Delivery accurate concentrations in various complex situations based on the advanced temperature, flow and pressure compensation,

●The biggest vaporizer producer in China, supply to anesthesia machine manufactuer at domestic and abroad.

●Adopts well selected high precision and super clean monobloc copper alloy, processes the tested structure pieces by numerical control, processed by fine treatment, rubbing, matching, rinsing and disinfection, complied with the highest industrial processing standard---Food Grade Standard

●Gas filtration system adopts agglomeration copper, ensuring to supply clean gas to the patient and securing the patients safety to the maximum

●The internal key parts use imported materials with good air tightness.

●The big view window is convenient to observe drug usage levels.

●Provide a reliable and safe solution in filler types and mounting types.

●Designed sophisticated and produced strictly confirming to test standards;every vaporizer apply to international standard ISO8835-4.

●Made by special high tech materials, which prove the vaporizer anti-corrosion from agent. Special rubber gaskets ,it can make sure agent leak-proofness and corrosion-resistant.

●Safety locking device to prevent the anesthetic gas volatile accidentally

●No need for regular maintenance to Dvapo vaporizer



Specification:

Concentration range: Halothane 0.2 to 5%

Flow range:0.2 to 15L/min

0.2 to 10L/min(normal usage) For concentrations>5 vol%

Filling volume for agent:

About 340ml with dry wick

About 300 ml with moist wick

Mounting type:

Selectatec compatible

Draeger plug in(Option)

Cagemount(ISO 23mm tapers)(Option)

Cagemount with interlock (Option)

Filler type:

Pour-fill,Key-fill,Easy-fill(option)

Operation environment:

Flow meter:0.2~15L/min(0.2~10L/min For concentration>5%)

Temperature: 15~+35°C

Humidity: 0~95%

Atmospheric pressure: 70~106Pa

Storage/Transport environment:

Temperature: -40~+65°C

Humidity: 0~95%

Atmospheric pressure: 11.5~110Pa
